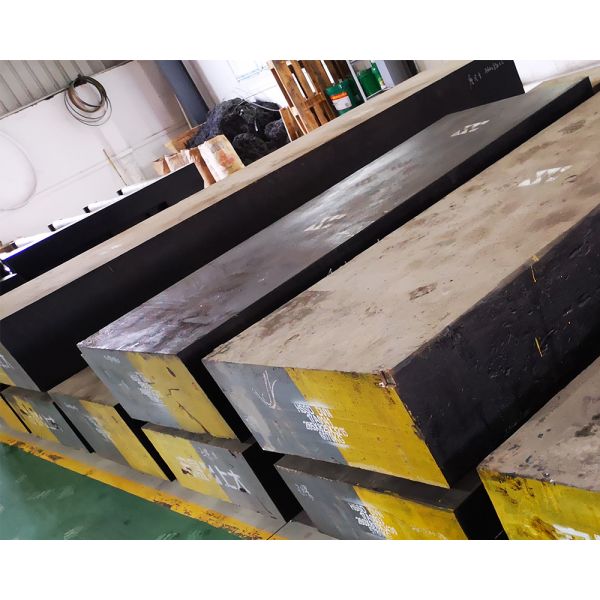

Hot work Tool Steel plate 1.2344 H13 SKD61 For Hot Squeezing Die
Hot work Tool Steel plate 1.2344 H13 SKD61 For Hot Squeezing Die
Hot work Tool Steel plate 1.2344 H13 SKD61 For Hot Squeezing Die
Hot work Tool Steel plate 1.2344 H13 SKD61 For Hot Squeezing Die
Specifications
Brand Name :
CF
Model Number :
1.2344, H13, SKD61, 4Cr5MoSiV1
Certification :
ISO / MTC
Place of Origin :
China
MOQ :
5T
Price :
Negotiable
Supply Ability :
1000 MT/Month
Delivery Time :
7-15 days
Packaging Details :
Standard Export Packing or As per request
Standard :
DIN, JIS, AISI, ASTM, GB, BS
Melting :
EAF+LF+ESR
Technics :
Hot rolled, Forged
Heat treatment: :
Annealed / Q+T / H+T
Hardness :
51-55HRC
Flaw detection: :
CC / DD/ EE
Surface Treatment :
Black/Peeled/Polished/Machined/Turned
Shape :
Plate / Flat Bar / Round bar
Type :
Alloy Steel Bar,Mold Steel，Hot Work Mould Steel
Package :
Export Standard Packing or Customers'demand
Payment :
T/T,L/C
Price terms :
FOB/CIF
Delivery date :
7-15 days
MOQ :
5MT
Description


Hot work Tool Steel plate 1.2344 H13 SKD61 For Hot Squeezing Die

Product Description:
1. AISI H13, DIN 1.2344, JIS SKD61, 4Cr5MoSiV1 Hot work tool steel
2. Hot rolled or Forged, condition annealing, black surface
3. Hardness: ≤ 255HBS;
4. Hot rolled technology: EAF+LF+VD
5. Ultrasonic test standard: SPE1921-GR3, CLASS D/D or E/E

Equivalent Grades Inrtoduction
GB DIN AISI JIS ASSAB H13 is hot work die steel, the implementation of standard GB / T1299-2000. ; Grade 4Cr5MoSiV1; alloy tool steel referred to as the joint steel, carbon steel is based on the addition of alloying elements and the formation of steel. Among them, including: measuring tool with cutting tools, impact resistance steel, cold work die steel, hot die steel, non-magnetic die steel, plastic mold steel.
4Cr5MoSiV1 1.2344 H13 SKD61 8407
Available Size (mm)
Flat Bar Size (mm) Round bar Size(mm)
Thickness Width Length Diameter Length
16-260 205-610 3000-6000 16-200 3000-6000
Chemical Composition(%)
C Si Mn P S Cr Mo V
0.30-0.40 1.20-1.60 0.30-0.50 ≤0.015 ≤0.003 3.5-4.5 0.80-1.20 0.80-1.00
Recommend Heat Treatment
Quench Temper
Heating temperature/ºC Cooling way Hardness (HRC) Tempering temperature Tempering number Hardness
First preheating Second preheating Last heating /ºC (HRC)
500-600 820-860 1010-1060 Oil Cooling 53-55 560-620 2 50-47
1. Characteristics
a,High resistance of tempering softenng properties(the using temperanture can improve 50ºC than that of H13 steel).
b,Excellent Thermal Stability:Heat preservation in the long time of 620ºC,the hardness is always higher than that of H13,and still maintain in 35HRC above.
c,Excellent thermal fatigue resistance:The thermal fatigue resistance is better than that of H13 steel.
2. Applications
Forging die,casting die,hot squeezing die
3. Technical service
Die vacuum heat treatment and die surface treatment(N-O,C-N,carburize and nitridation surface treatment).
4. Terms of payment
30% deposit T/T and the balance by L/C at sight, or T/T
5. Delivery condition
For abundant stock, 15-20 days.For customized products, 30-50 days.
Factory Hardness: Annealing 235 ~ 205 HB, quenching ≥50 HRC




Our service

Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipments, we can export our products by wholesales
and retail sales, whole plate or strip is available. All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection
process before the shipment.

Changfeng Tool & Die Steel Hot Sale product info:

STANDARD/GRADE Flat Bar Size(mm) Round bar Size(mm) Technics
DIN AISM JIS GB(China) Thickness Width Length Diameter Length
1.121 SAE1050 S50C 50# 10-450 155-2200 2000-12000 Forged, Hot Rolled
1.2311 P20 PDS-3 3Cr2Mo 10-460 155-2200 2000-10000 20-200 2000-6000
1.2738 P20+Ni - 3Cr2NiMnMo 21-300 155-2200 2000-8000 20-200 2000-6000
1.2379 D2 SKD10 SKD10 10-200 155-810 2000-6000 14-80 3000-6000
1.2080 D3 SKD1 3Cr2Mo 10-200 155-810 2000-6000 20-200 3000-6000
1.2083 420 - 4Cr13 10-500 155-1200 2000-6000 12-300 3000-6000
1.2344 H13 SKD61 4Cr5MoSiV1 10-500 155-1600 2000-6000 16-400 3000-6000
1.2510 O1 SKS3 9CrWMn 10-200 155-810 2000-6000 20-200 3000-6000
1.7225 SAE4140 SCM440 42CrMo 10-280 155-2200 2000-6000 16-450 3000-6000
