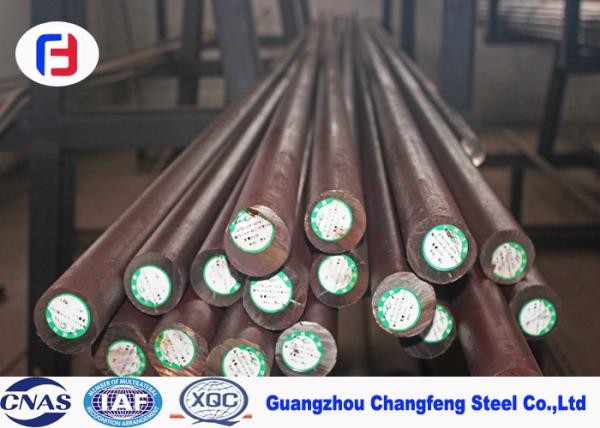

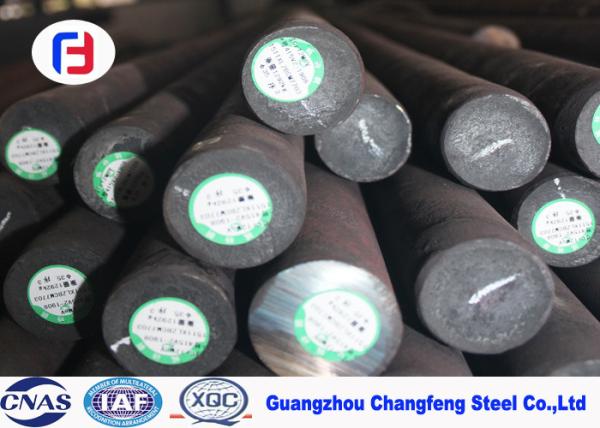

1.2344 / H13 / SKD61 / 4Cr5MoSiV1 Engineering Steel Bar of Hot Work Mould Steel

1. Similar Grade

2. Chemical Composition(%)

3. Features

A. Good heat-resistance and fatigue-resistance.
B. Good cutting and polishing performance.

4. Application

Used for making hot squeeaing mould,forging mould and embedded lump.
A. Suitable to manufacturing aluminum, zinc, copper alloy extrusion die, die casting, hot forging die and hot shear blades, etc.
B. Extrusion mold of aluminum and magnesium, die-casting mold, especially adapt to the mold in large and complicated form.
C. Extrusion mold of copper alloy, die-casting mold

5. Heat Treatment

Quenching:
The first stage of preheating:500 ~ 550 ºC
The second stage of preheating:750 ~ 800 ºC
Cooling or high pressure gas cooling, 100 ~ 150 ºC in the tempering furnace.

Tempering:
Preheat:300 ~ 350 ºC
Tempering heating:550 ~ 680 ºC
Air cooling to room temperature, tempering three times.Quenching temperature 1000 ~ 1050 degrees, 50 to 55 HRC hardness, heat treatment deformation is small, can be nitriding surface nitriding processing, processing of products has better wear resistance.


6. Hardness

Annealing 235 ~ 205 HB

Quenching ≥50 HRC

7. Available Size(mm)

8. Delivery

For abundant stock, 15-20 days. For customized products, 30-50 days.

9. Payment

30% deposit by T/T, the balance should be paid by T/T or L/C at sight before shipment.
