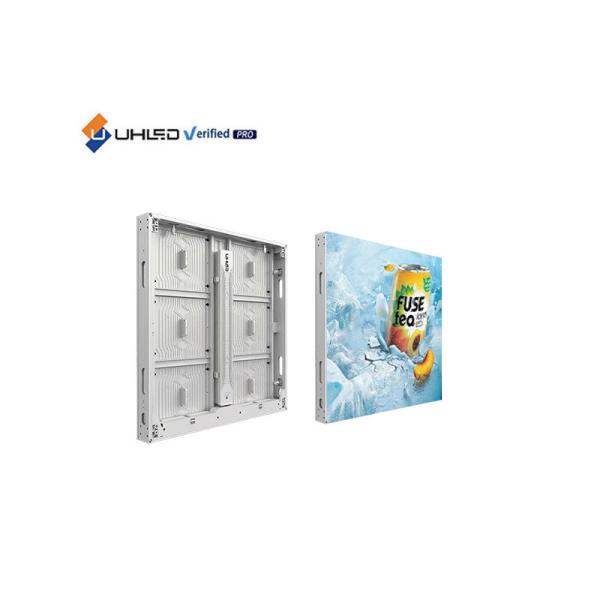

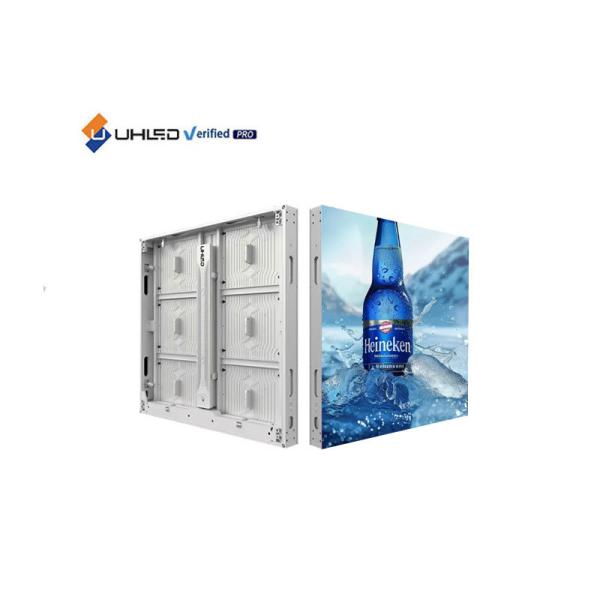

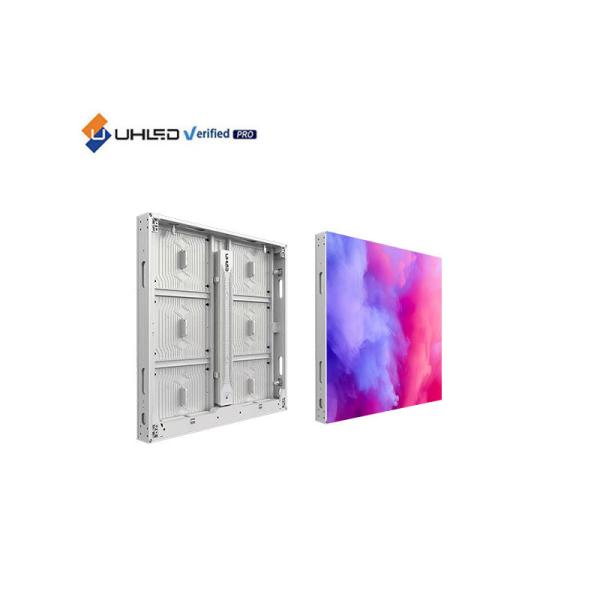

High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
Specifications
warranty :
5 years
type :
LED
Brand Name :
UHLED
application :
Outdoor
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment
media available :
datasheet, Photo, EDA/CAD Models, Other
color :
full color
Model Number :
p6.67mm
pixel density :
22478
Place of Origin :
Guangdong, China
pixels :
6.67mm
Product name :
Outdoor Aluminum Digital Signage
Usage :
Outdoor Adverting Display
Brightness :
6500-9000
Certificate :
CE/ETL/FCC/ROHS/CB/PSE
Viewing angle :
140H/120V
Cabinet material :
Profile Aluminum
Life span :
100000 Huors
Cabinet size :
960*960mm
Keyword :
Waterproof Outdoor LED Display Screen
Description
Specification
Pixel Pitch：
P5.7
P6.66
P8
P10
LED Configuration：
SMD2727
SMD2727
SMD2727
SMD2727
Pixel Density
30625dot/m2
22500dot/m2
15625dot/m
10000dot/m
Module size：
480*320mm
480*320mm
480*320mm
480*320mm
Module Resolution：
84*56 dot
72*48 dot
60*40 dot
48*32dot
Cabinet Size：
960*960*77mm
960*960*77mm
960*960*77mm
960*960*77mm
Cabinet Resolution：
168*168dot
144*144dot
120*120dot
96*96dot
Cabinet Weight：
24.5kg
24.5kg
24.5kg
24.5kg
IP Rating ( front/back)：
IP66
IP66
IP66
IP66
Brightness Intensity：
>6500 CD/m2
>6500 CD/m2
>6500 CD/m2
>6500 CD/m2
Viewing Angle (H/V)：
140°/140
140°/140
140°/140
140°/140
View Distance：
＞5m
＞5m
＞5m
＞5m
Gray Scale:
14bit
14bit
14bit
14bit
Display Scale:
16.7M
16.7M
16.7M
16.7M
Brightness Adjustment:
0-100 levels adjustable
0-100 levels adjustable
0-100 levels adjustable
0-100 levels adjustable
Max.Power Consumption:
650W/㎡
650W/㎡
650W/㎡
650W/㎡
Ave.Power Consumption:
200W/㎡
200W/㎡
200W/㎡
200W/㎡
Drive Mode:
1/7S
1/6S
1/4S
1/2S
Refresh Frequency:
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
Gamma Correction:
-5.0~+5.0
-5.0~+5.0
-5.0~+5.0
-5.0~+5.0
Environmental:
OUTDOOR
OUTDOOR
OUTDOOR
OUTDOOR


Control Mode:
Synchronous display with
control PC by DVI
Synchronous display with
control PC by DVI
Synchronous display with
control PC by DVI
Synchronous display with
control PC by DVI


Support Input:
Composite,S-
Vido,Component,VGA,DVI,H
DMI,HD_SDI
Composite,S-
Vido,Component,VGA,DVI,H
DMI,HD_SDI
Composite,S-
Vido,Component,VGA,DVI,H
DMI,HD_SDI
Composite,S-
Vido,Component,VGA,DVI,H
DMI,HD_SDI
Operation Power:
AC100~240 50/60HZ
AC100~240 50/60HZ
AC100~240 50/60HZ
AC100~240 50/60HZ
Operating Temperature:
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃
Operating Humidity:
10~95% RH
10~95% RH
10~95% RH
10~95% RH
Operating Life:
100,000hours
100,000hours
100,000hours
100,000hours

Full Aluminum Energy Outdoor LED Display
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

Module
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
Module Size：480x320mm Pixel Pitch: P4.4/P5.7/P6.66/P8/P10
Waterproof rating: IP66 Brightness: ≥6500CD

Product Details

Linear design,Concise style Grain design,perfect hierarchy
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

With partial power design,lower-power consumption,Max.is 650w/m²

Naked Eye 3D


40x320mm Small modules,80°Curved,Support arc Splicing
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

Curved module design, make right angle splicing Support arc &right angle splicing

Product Characteristics
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

Aluminum Profile Cabinet

Aluminum cabinet, light weight, safe and reliable, no deformation.
The use of aluminum cabinets, even at high ambient temperatures, the weight of a single cabinet will not be distorted.
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

IP66 waterproof
IP66 waterproof No need wrapping strucre suround the screen,lower-cost
Low temperature resistance can work normally at -40℃
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

Accessories
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

Maintenance Mode
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

Actual Project
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard

Factory Introduction
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
High Brightness P6.67mm Outdoor Advertising Panel Waterproof LED Display with 960x960 Aluminum Cabinet Outdoor Led Billboard
