PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
Specifications
plastic processed :
HDPE, LDPE
output (kg/h) :
200 - 230
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
motor, Gearbox
Place of Origin :
Zhejiang, China
Brand Name :
lvdao
screw design :
single screw
voltage :
Customized
dimension(l*w*h) :
10000*1500*3000mm
power (kw) :
55
warranty :
1 Year
Weight (KG) :
5000
Screw diameter :
85mm
Screw Long dia. ratio :
33:1
Screw rotate speed :
10-90r/min
Color :
Green and white
End product :
Plastic Granules
Description
Product Overview

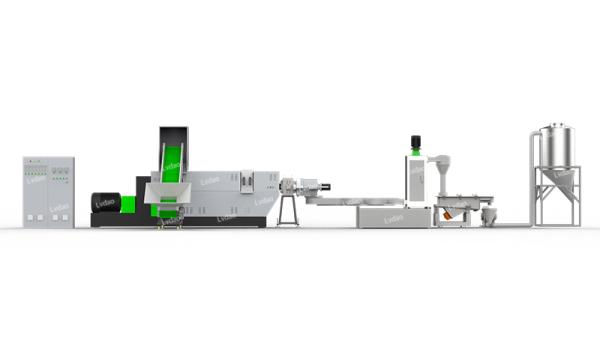

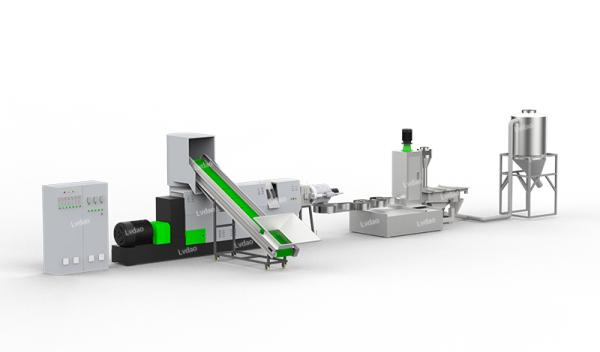

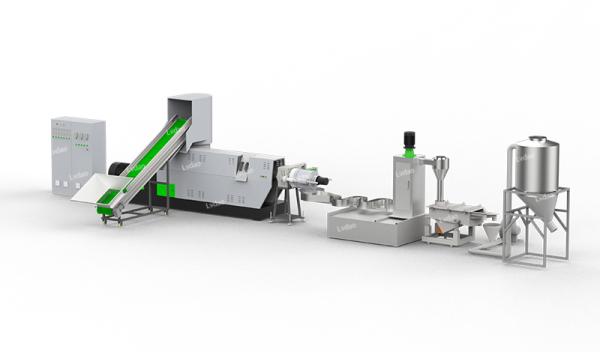

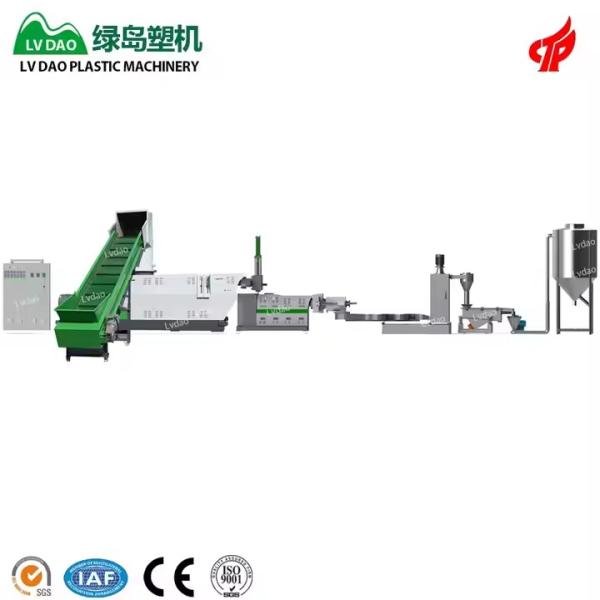

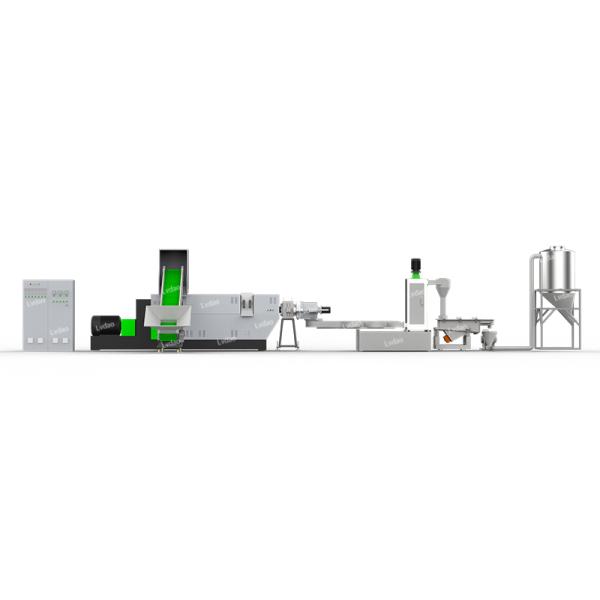

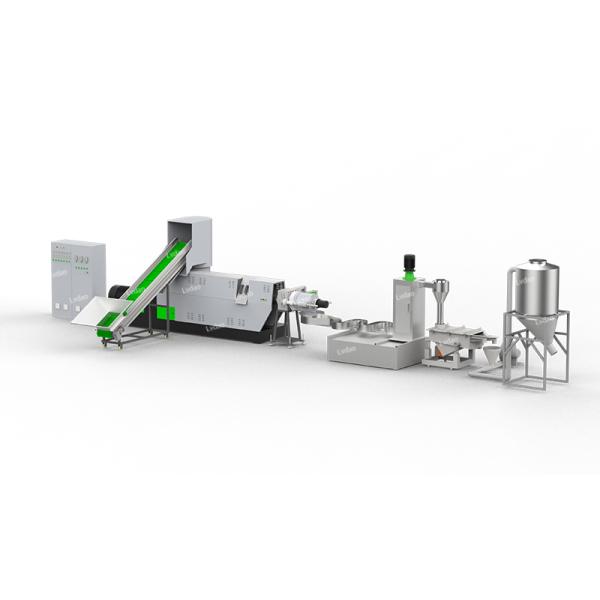

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

LDM plastic pelletizing Film machine

Usage:
For film and woven bags recyling and pelletizing.
Features:
LDM highly automated directly feed without crushing in advance
Provide water strap,double-stage and vacuum exhaust according to your requirement.
Products Description
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

Inverter

V&T inverter or SINEE inverter
Control the speed of screw to protect it
From 0.75kw-250kw
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

Gearbox

Shuangguang brand
Hard teeth surface
From ZLYJ112 -ZLYJ450

PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

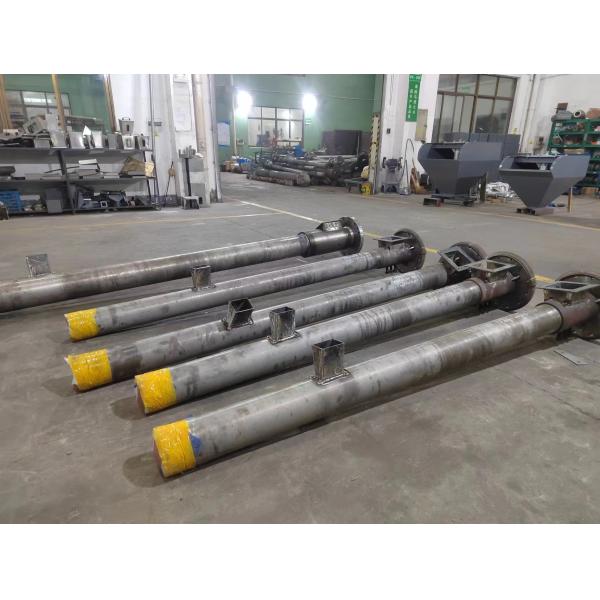

Screw and barrel

Made of high grade 38CrMoAIL
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

Hopper

For storage pellets
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

Screen changer

Hydraulic/Electric/Manual
Double filters for unstop running
Easy to change the mesh
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

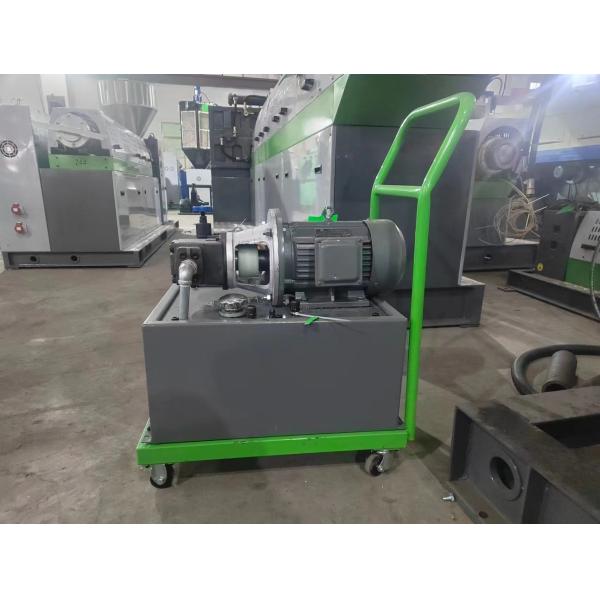

Oil station

Suit for hydraulic screen changer
Use #45 oil

Product Paramenters
Model
Screw dia.(mm)
Long dia. ratio
Output(kg/h)
AgglomeratorPower(kw)
Rotate speed(r/min)
LDA-85
Ø85
33:1
200-230
37
10-90
LDA-100
Ø100
33:1
250-300
55
10-90
LDA-130
Ø130
33:1
450-500
90
10-90
LDA-160
Ø160
33:1
600-700
110
10-90
LDA-180
Ø180
33:1
800-1000
132
10-90

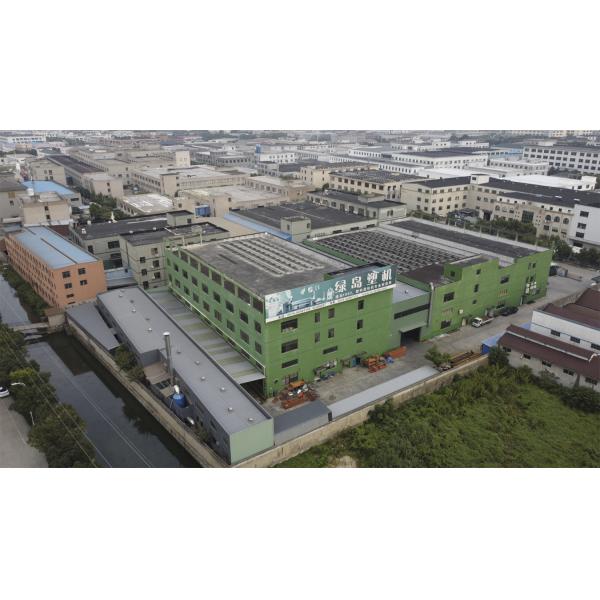

Company Profile
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine

Yuyaolvdao plastic and rubber machinery Co., LTD. specializing in the production of plastic recycling machine line has a history of more than 20 years in the plastic equipment industry, In the plastic equipment manufacturing industry in a leading position.
Our company set up a factory in 1996, under the leadership of professional research and development team, down-to-earth,continuous exploration, according to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
In August 2011, the branch company was put into operation, covering an area of nearly 20,000 square meters, realizing leap-forward development.At the same time.We have also added more advanced processing equipment and testing systems, creating a modern technology control center.More importantly, the company introduced professional talents, reorganized the research and development team, and laid a good foundation for the company's long-term development.
At present, our equipment has a number of invention patents, prilling machine through CE safety certification, LDA series recycling machine included in the 2007 national torch plan project, in 2008 the company was rated as ningbo high-tech enterprise, in 2009 the company undertook the national innovation fund project.In 2011,we once again approved as a high-tech enterprise and finished Nation’s Fund Project.In 2013,we attend K show in Germany.In 2015,we are invited by CCTV. In 2017, the company spent millions on metal laser cutting machines.In 2019, a special welding arm was introduced.
Over the past ten years, the company has always adhered to customer satisfaction as the purpose, guided by the market situation, for China's plastic products recycling has made a great contribution.In the future, we will continue to uphold this purpose and make preparations for further opening up the international market.
Product packaging
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
Exhibition
PE Films Agglomerator Machine Recycling Plastic Granules Making Machine
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.

Q: Which kind of machine do you make?
A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw
material, different output and different industrial voltage in working place,you can choose different machines.

Q: How can we visit your company and machines?
A:Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.

Q:Can you customized machine?
A:We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
