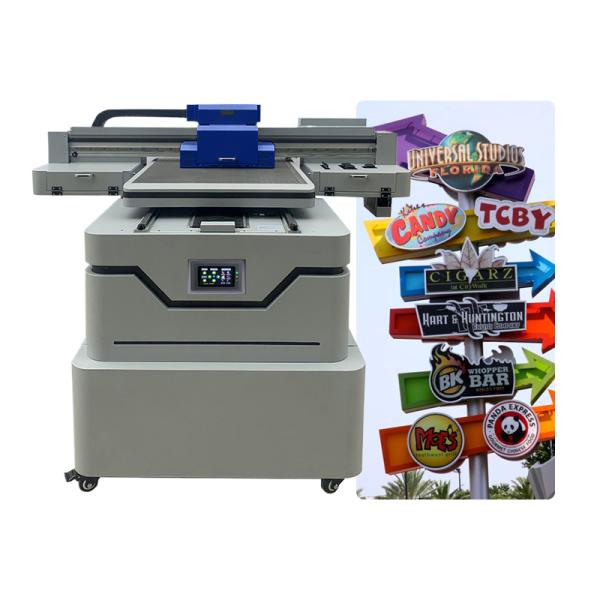

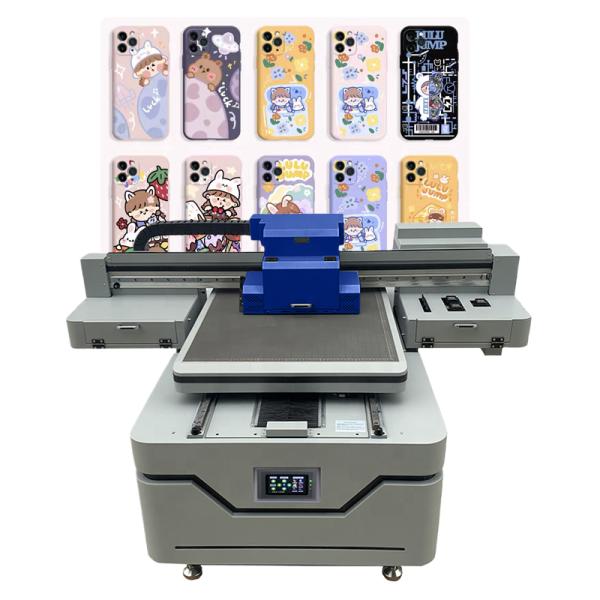

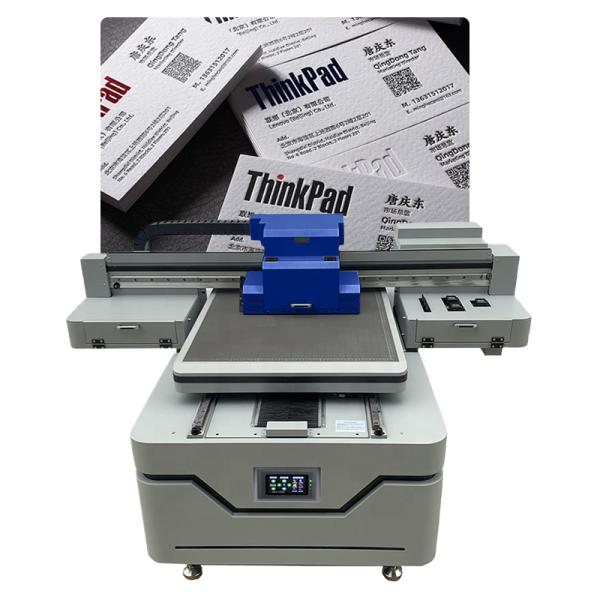

Model | 6090 uv printer | ||
Print Head | TX800 head | I3200 head | |
printhead number | 1 or 2 or 3 | 1 or 2 or 3 | |
Print width | 60*90cm (Max 60*90cm) | 60*90cm (Max 60*90cm) | |
Maximum Resolution | 720*4320 dpi | ||
Production mode | 5.5㎡/h | 6.5㎡/h | |
Precision mode | 4.5㎡/h | 5.5㎡/h | |
High precision mode | 3.5㎡/h | 4.5㎡/h | |
Ink | C M Y K (LC LM)+white +varnish+coating | C M Y K (LC LM)+white +varnish+coating | |
printing material | Glass,Acylic board,Wood,Board,Metal,Leather and so on | ||
Printing heigh | 3mm to 180mm adjustable | ||
Rip software | Maintop 6 uv version for standared & photoprint uv 12 for optional | ||
Data interface | USB 3.0 high speed interface transfer system | ||
Machine Dimension | with table:1530mm*1600mm*1380mm | ||
without table:1440mm*1600mm*870mm | |||
Power | 50-60Hz, 1000-1600W, AC220V(±10%)/AC110V(±10%) | ||
Working Environment | Temperature:25-30℃ Humidity:40-60% | ||
Operation System | Windows7, Windows8, Windows10 |
