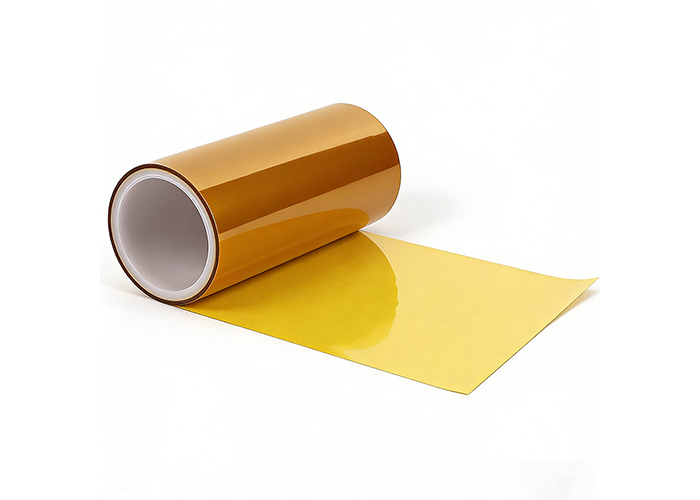

Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Specifications
Model Number :
DSPI1315
Product Structure :
Protective Film-Adhesive-Polyimide Film
MOQ :
2 rolls
Delivery Time :
7-9 working days
Conventional Length :
100m
Curing :
160℃/60min
Payment Terms :
T/T, Paypal
Pre-press :
180℃/10s
Price :
Negotiable
Heat Resistance :
290℃/60s
Certification :
Rohs, REACH
Thickness Range :
0.01mm-0.3mm
Supply Ability :
3000000 yards per month
Forming Press :
180℃/100s
Brand Name :
Tunsing
Colour :
Yellow / Amber
Place of Origin :
China
Conventional Width :
500mm
Packaging Details :
1-2 rolls in one carton, each with PP bag
Description
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Our automotive-grade etched foil Polyimide (PI) heating film (Kapton heater) adopts precision etched alloy foil sandwiched between two layers of polyimide film. We supply both Yellow PI film and Amber PI film to meet different customer material standards.
Thanks to ultra-thin construction, outstanding flexibility and stable thermal performance, this heating element is widely adopted for car heated seat, seat cushion heating sheet, automotive seat heating system for passenger vehicles, EV & new energy cars.
Product Overview
Suitable for quick lamination.
Good dimensional stability
Excellent electrical, chemical, and thermal properties
Effective glue flow control beneficial for FPC lamination.
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Physical Characteristics
Colour Yellow / Amber
Thickness Range 0.01mm-0.3mm
Conventional Width 500mm
Heat Resistance 290℃/60s
Pre-press 180℃/10s
Forming Press 180℃/100s
Curing 160℃/60min
Storage Conditions Store at 10°C or below 70%RH
Structure: 3-layer sandwich structure – Top PI Film → Middle Etched Resistive Circuit → Bottom PI Film

Manufacturing process: PI film rolls and metal foil rolls are laminated via hot pressing and then cut into sheets to form metal-clad PI substrates. After the metal-clad PI substrates are etched, an additional layer of PI film is laminated on top.

During lamination, temperature, pressure and line speed must be precisely controlled to achieve bubble-free and wrinkle-free lamination, while ensuring the bonding strength meets specifications.
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Key Features

✅ Two substrate color available: Yellow Polyimide / Amber Polyimide(Kapton)

✅ Precision etched foil circuit, achieve even heat distribution without hot spots

✅ Ultra thin & lightweight, total thickness approx.0.13~0.22mm, no foreign body sensation after assembly

✅ Excellent flexibility, can fit curved surface of seat foam, good anti-fatigue performance under long-term repeated bending

✅ Great dielectric strength & moisture resistance, reliable performance inside vehicle cabin

✅ Fast warm-up speed, low thermal inertia, high heating efficiency

✅ Wide working temperature range, suitable for all-climate automotive application

✅ Customizable: outline size, heating circuit, resistance, voltage, lead wire style, position of terminals

Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Custom Servic

· We support full customization according to customer drawings or samples:

· Dimension & shape of heating area

· Circuit pattern & power density

· Working voltage: 12V standard for automobile

· Wire length, terminal position and connector option

PI Heating Film Applications

Main Application

· Automobile heated seat heating element

· EV / New energy vehicle seat heating pad

· Passenger car, SUV, commercial vehicle seat heater assembly

· Aftermarket automotive seat heating refurbishment kits

Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Company Profile
Shenzhen Tunsing Plastic Products Co., Ltd. was established in 2007 and is located in Shenzhen City, China, covering an area of 10,000 square meters.
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
The company maintains a professional polymer technology team led by Master and PhD engineers, specializing in R&D, production and sales of various modified hot melt adhesives, hot melt adhesive film, hot melt adhesive powder, functional film coating, ultra-fine cryogenic powder grinding and die-cutting products.
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Certification
Automotive Etched Foil Polyimide PI Heating Film, Yellow & Amber Kapton Heater Element for Car Seat Heater, Custom Size Available
Frequently Asked Questions
Do you accept OEM or ODM?
Yes, we accept OEM and ODM. We are professional heat transfer material manufacturers with extensive experience in R&D and manufacturing.
May I have your samples?
Yes, sample width is 30cm, length is 1-3 yards.
How long is the delivery time?
Samples: 3-5 days
Bulk orders: 3-10 days (depending on order quantity)
What is your payment method?
We accept T/T, PayPal and trade assurance orders.
What services can we provide?
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment Currency: USD, HKD, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Cash
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
