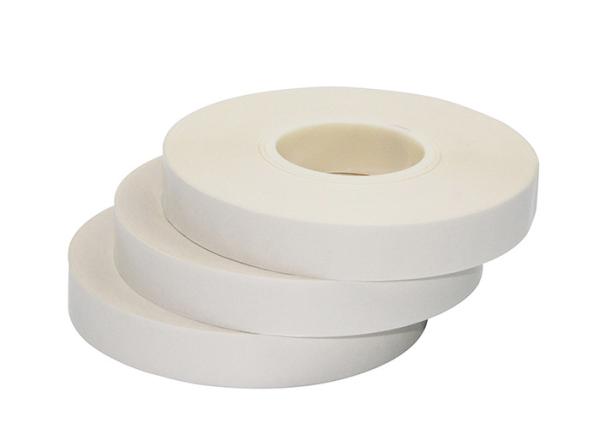

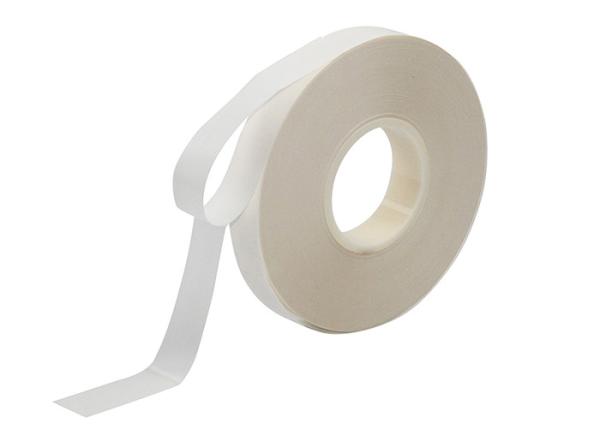

Hot Melt Adhesive Tape sim card sticking pA copolyamide
Hot Melt Adhesive Tape sim card sticking pA copolyamide
Hot Melt Adhesive Tape sim card sticking pA copolyamide
Hot Melt Adhesive Tape sim card sticking pA copolyamide
Specifications
Brand Name :
Tunsing
Model Number :
DS-4
Certification :
SGS , ISO9001,Oeko-Tex
Place of Origin :
Guangdong
MOQ :
20rolls
Price :
negotiable
Payment Terms :
T/T , Western Union, PayPal, L/C
Supply Ability :
80000rolls Month
Delivery Time :
3-5 work days after received payment
Packaging Details :
20rolls/ctn
Keyword :
Hot Melt Adhesive Tape
Color :
Light Yellow
Proportion :
1.08±0.02g/cm³
Melt flow index :
75±25g/10min（ASTM D1238-04）
Melting point :
70-95℃ (Tunsing DSC 214)
Composition :
Polyamide synthetic modification
Packing :
20roll/ctn
Finished Product :
0.055mm*29.2mm*200m
Description

Hot Melt Adhesive Tape Sim Card Sticking PA Copolyamide

Hot Melt Adhesive Tape Description:

The hot melt adhesive is used for embedding of contact smart cards. Excellent adhesion to PVC, FR-4 and other materials.This product belongs to hot-melt tape with low and medium temperature properties. Very strong cohesion and good flexibility to ensure that no structural fracture will occur in the thrust and bending tests after bonding, while maintaining a balanced bond strength with the chip and the card base, and has excellent punchability. Meet the requirements of ISO7816 standard for chip package fastness.

Hot Melt Adhesive Tape Composition:

Polyamide synthetic modification

Hot Melt Adhesive Tape Applications:

DS-4 is suitable for heat embedding of IC cards, SIM cards, financial social security cards, and contact bank cards.


Hot Melt Adhesive Tape Physical Characteristics:

Color Light Yellow Release Protection Glassine Release Paper
Proportion 1.08±0.02g/cm³ Conventional Thickness 0.055mm±0.008mm
Melting Range 70-95℃ (Tunsing DSC 214) Conventional Width 29.2mm
Melt Flow Index 75±25g/10min(ASTM D1238-04) Conventional Length 200m
Hardness D 58±2 (Shore ) Finished Product 0.055mm*29.2mm*200m

Hot Melt Adhesive Tape Recommended Bonding Conditions:
Mechanical Mold Temperature 140℃-160℃ Mechanical Mold Temperature 160℃-180℃
Adhesive Time 0.6S-1.2S Packing Time 0.6S-1.2S
Pressure 0.25-0.4mpa Pressure 0.25-0.4mpa
