Elastic Thermoplastic Polyurethane Film Hot Melt Adhesive TPU Films
Elastic Thermoplastic Polyurethane Film Hot Melt Adhesive TPU Films
Elastic Thermoplastic Polyurethane Film Hot Melt Adhesive TPU Films
Elastic Thermoplastic Polyurethane Film Hot Melt Adhesive TPU Films
Specifications
Brand Name :
TUNSING
Model Number :
DS3412H
Certification :
ISO 9001 SGS Oeke-TEX
Place of Origin :
China
MOQ :
100Y
Price :
negotiable
Payment Terms :
Western Union, L/C, T/T, PayPal
Supply Ability :
40000 Square meters per day
Delivery Time :
5-7days
Packaging Details :
1PC/PE FILM, 100yard/roll,1roll/CTN, or it's up on the customer's option
Color :
Transparent
Melt Flow Index :
9±4g/10mins （ASTM D1238-04）
Melting Range :
115-135℃ (Tunsing Melting point instrument)
Hardness :
65±2 (Shore A)
Conventional Thickness :
0.05mm
Width :
5mm-1500mm
Release Protection :
Release Protection
Operating Temperature :
140-180
Description

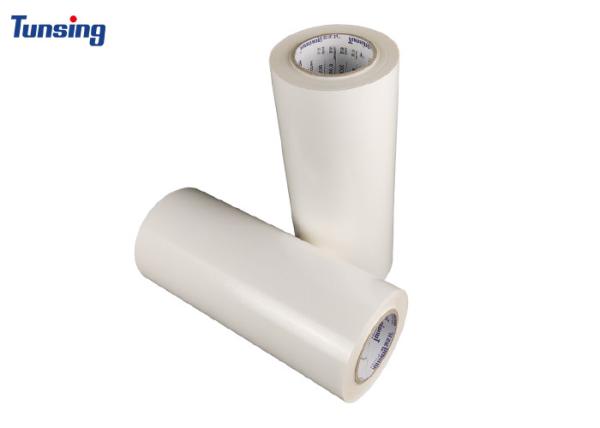

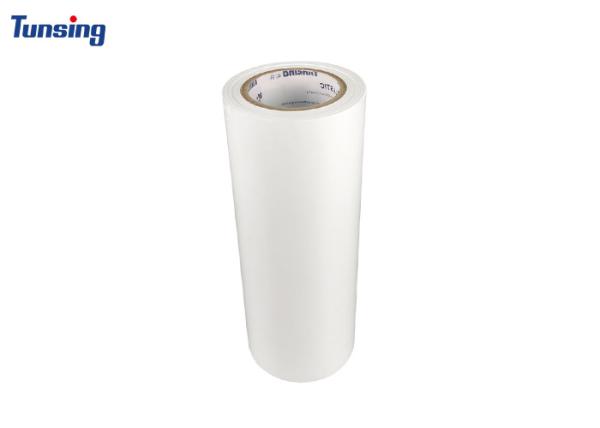

TPU Thermoplastic Polyurethane Hot Melt Adhesive Elastic Film

Product:DS3412H
Despription:

Tpu Hot Melt Adhesive Film is thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. It has excellent adhesion for Lycra, spandex, nylon, excellent products such as soft feel and super elastic fabric hot pressing adhesive etc. With super soft feel, high resilience.

DS3412H Physical Characteristics:

Color transparent Release liner Glassine release paper
Density 1.15±0.02g/cm3 Thickness 0.0125mm-1mm
Opening Time 12min Width 5mm-1524mm
Hardness 52±1 Shore A Conventional thickness 0.025mm,0.05mm,0.10mm
Melt Flow Index

35±10g/10min;

Condition ASTM D1238-04

 Conventional Width 1524mm
Rheology Temperature 102°C -125°C Length 100yards

Operating Temperature

 155°C -185°C Finished products specification 1524mm*100yards/roll

NOTICE:

1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.

2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.

Application:DS3412H is used to bond one-piece underwear and seamless underwear.

Customer Feedback:

Shipping & Packing:

Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)

Free sample:
We provide you free sample,and you need to pay the shipping cost.
Why should you choose us?
Our company was founded in 2007 and it has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards
