28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
28 Bags Per Minute Bottled Water Production Line 500ml 24 Pcs Per Bag
Specifications
Brand Name :
Ellison
Model Number :
200B
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
50 days
Packaging Details :
Sea worthy package
Processing type :
Linear type PE film wrapping machine
Packing bottle :
PET bottle, glass bottle, metal can, carton etc.
Shrinking material :
PE / PVC / POF
Heating type :
Electric heating tunnel
Heating power :
40kw
Film thickness :
80 - 90 um
Packing speed :
28 packs per minute
Driven type :
Servo motor
Description

28 Bags Per Minute Bottle Water Packaging Machine 500ml 24 Pcs Per Bag

Description

1 > Appearance concision, beauty, fracture novel, unique, convenient to maintain;

2 > Big screen, manipulation interface LCD Chinese and English display;

3 > Pneumatic expand support membrane roller, membrane change is quick, membrane change just need two minute;

4 > Membrane tension transport, even and plat, film cutting controlling is precision, cut is tidy;

5 > Servo controlling technology can keep each fracture precision in-phase, transmission is reliably;

6 > Heating case fracture is reasonable,heat insulation and warm keeping,temperature controlling precision is highly.

7 > International most advanced controlling component, device is fine, working condition is steadily.

8 > Mechanism drive part adopt to heating treatment stainless steel or medium carbon steel ect material; surface spray coating quality is fine; whole machine anti-rust character is very highly;

9 > While all the electricity,pneumatic controlling accord with latest international applied criterion (CE criterion)

10 > While electricity cut, set manpower rotary conveyor belt device, easy to move heating tunnel inside product outside;

11 > Wooden case and wrap membrane separately package;

Applied to container type

Round glass bottle, PET bottle, can

Outsider diameter is 60-90 mm

Height is 120-300mm

Note: while exchange related spare parts, applied arrange is more wider

Technical parameter

Facility overall size L10600 * W1560 * H2200 mm
Packaging article max size L420 * W280 * H350 mm
Shrinkage film material PE / PVC / POF
Shrink membrane thickness 80~90um
Per minute max capacity 30bag (can limitless speed adjust)
Power supply max load relied

Heating case 40kw/220v
Air pressure 0.4～0.7Mpa

Machine list

No Machine description Number
1 Thermo shrinkage tunnel 1set
2 Transport machine 1set
3 package machine 1set
4 Electricity cabinet air conditioner 1set
5 Film guide rod 2piece
6 Film guide special usage pin 30piece
7 Bottle pushing special usage pin 10piece
8 Fan out chain special usage pin Each 8piece
9 Heating pipe 2piece
10 Bridge plate 4piece
11 Flat belt 1piece
12 Flat belt 1piece
13 Special spanner 1piece
14 Man-machine usage manual 2piece
15 Electricity element chart 2piece
16 Facility manipulation rule and common failure exclude manual 2piece
17 Assembly chart and easy-damage list 2piece
18 PE film wrapping machine usage manual 2piece

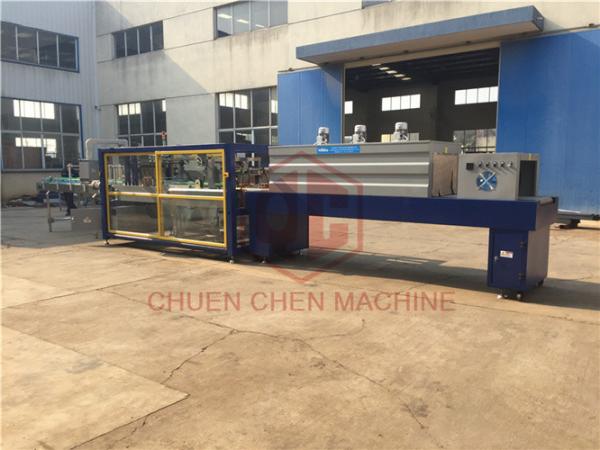

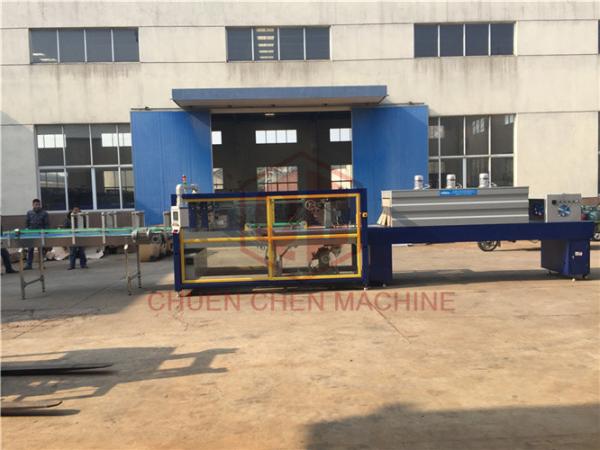

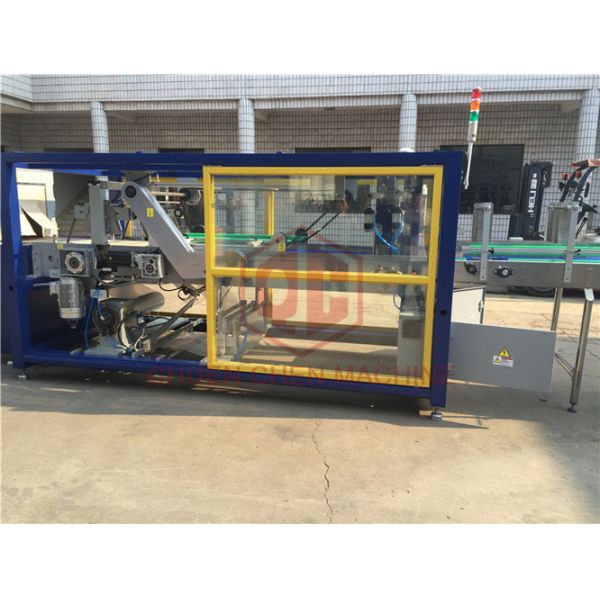

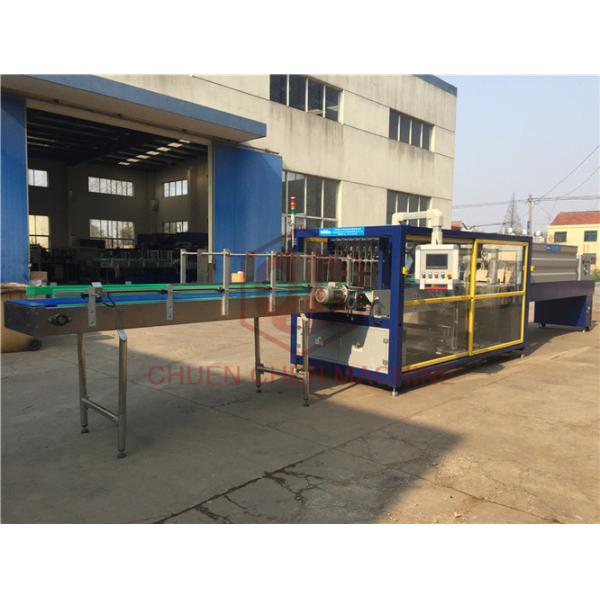

More photos
