Specifications
Brand Name :
HOTHMI
Model Number :
HTM-H024B25-UART-A01
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
240x320 dots
Dimensions (mm) :
43.70x88.00x3.80
Field of view window size :
Full View
Backlight brightness :
350cd/m2
Interface :
UART
Operating Temperature: :
-20~70℃
Description

If you need to purchase please contact https://www.display-lcd.com/

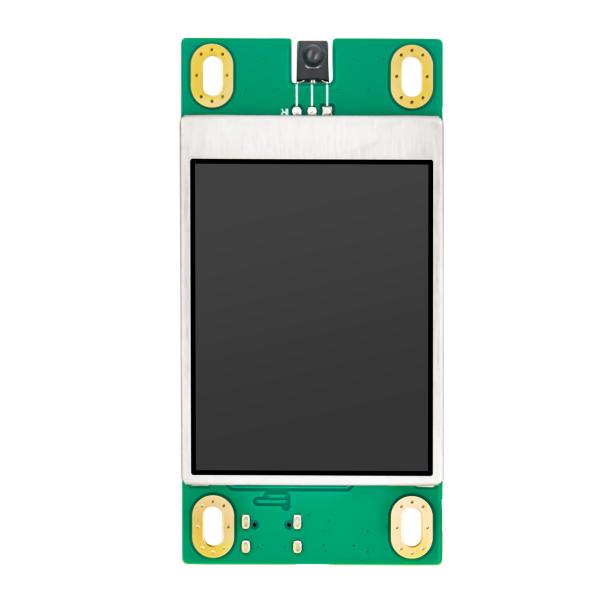

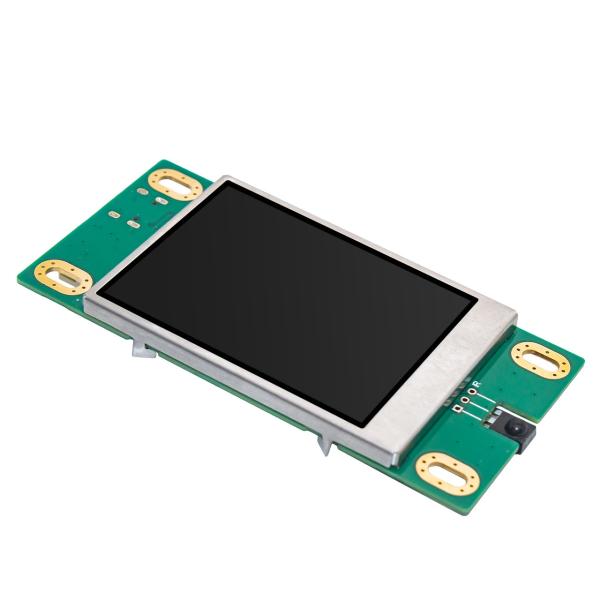

HTM-H024B25-UART-A01 | 2.4-inch Smart Display Module | 240x320 Pixels with RS485 Interface

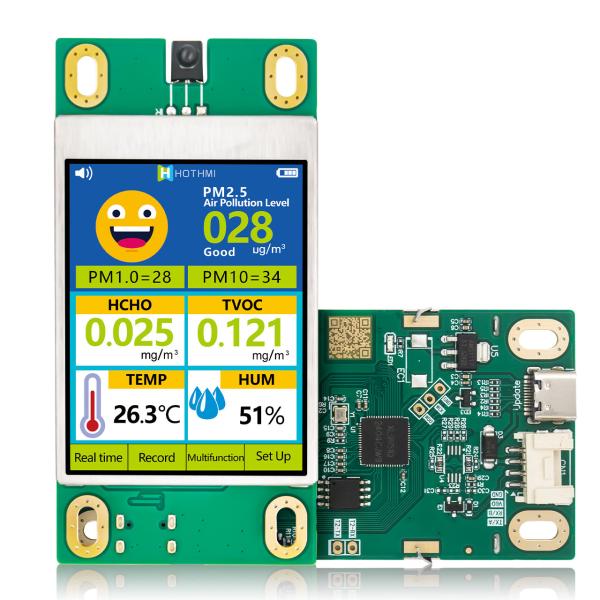

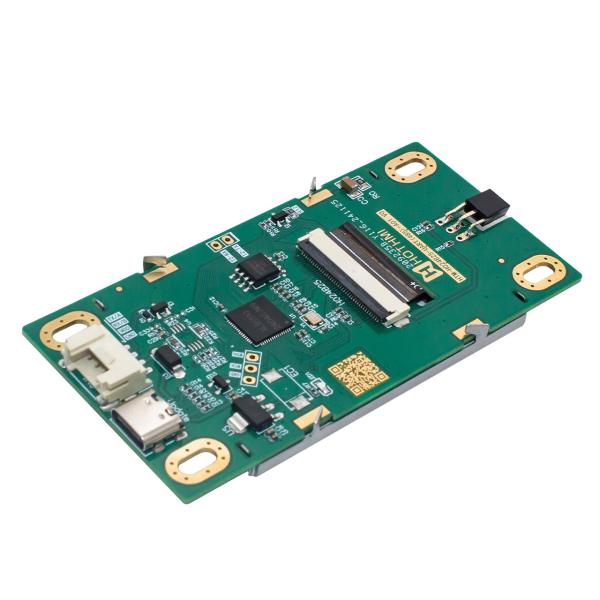

This 2.4-inch smart display module features a 240x320 resolution, a normally black panel, a 70% NTSC color gamut, and IPS viewing angles, ensuring clear viewing from any angle. This smart display offers flexible interfaces, supporting UART (TTL), RS232, and RS485, and is compatible with multiple communication protocols. It also offers convenient resource updates (USB/TF card/dedicated PCB) and supports 1Gbit/128Mbit resource storage, making it easy to handle complex interface and multimedia needs.

Users can also choose their own development platform. The TFT LCD display associated with this module, without a driver board, is the TFT-H024B25QVTST4N40, which supports common development platforms such as Arduino and C8051. Supports the capacitive touch version: TFT-H024A16QVIST4C10, and the resistive touch version: TFT-H024B26QVTST3R18.

All displays are industrial-grade, with stable power supply, a wide +5V±0.3V voltage range, and strong compatibility. Operating temperatures range from -20°C to +70°C and storage temperatures from -30°C to +80°C, they are suitable for industrial and harsh environments. They are suitable for industrial HMIs, smart device controls, medical equipment, outdoor displays, and more.

ITEM PARAMETER DESCRIPTION UNIT
TFT series HTM-H024B25-UART-A01
Diagonal size 2.4” Inch
Resolution 240x320 Dot
Dimensions 43.70x88.00x3.80 mm
Active area (AA) 36.72x48.96 mm
LCD type TFT LCD Display mm
Display viewing angle Full View
Aspect ratio 1:2
Backlight type LED white
TFT driver IC EzUI
Brightness 350 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~70℃ ℃
