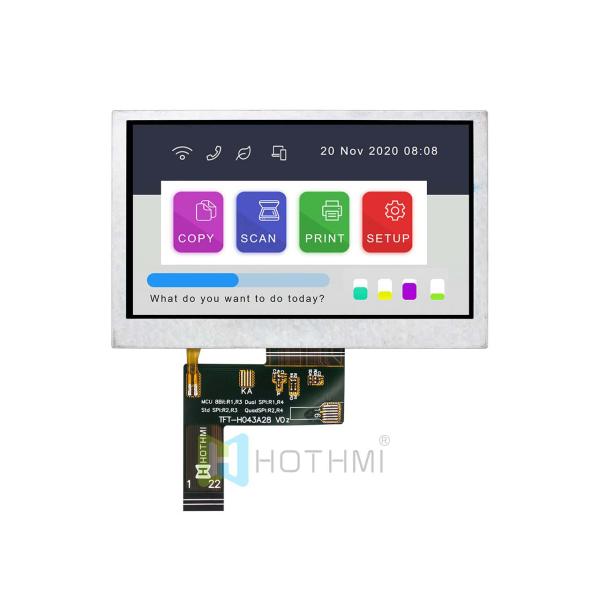

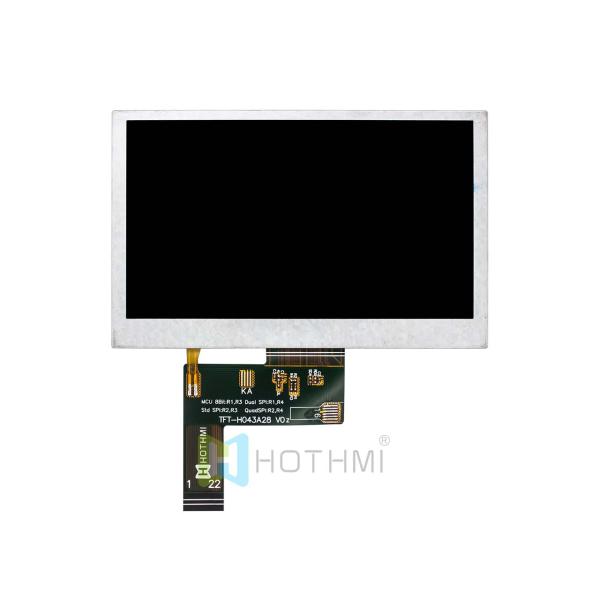

4.3-inch 480x272 high brightness QSPI interface TFT display full viewing angle Anti-static ESD 8KV

Key Features:

▶ Model: TFT-H043A28WQISTKN22

▶ Type: TFT horizontal screen

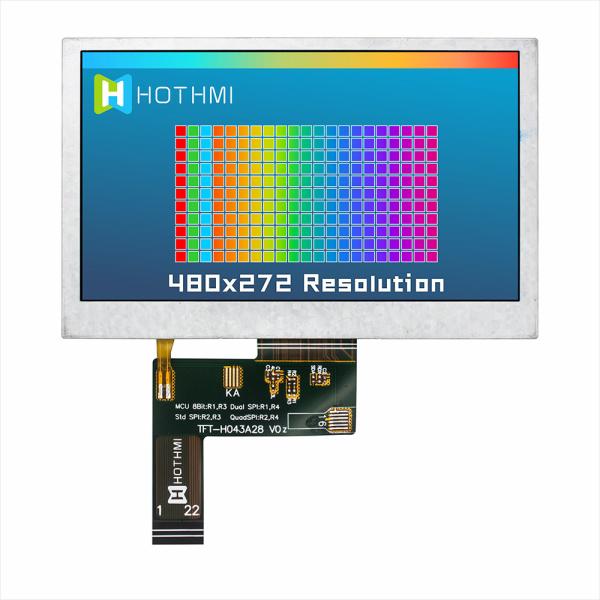

▶ Display pixels: 480x272

▶ Dimensions (mm): 105.46x67.16x2.8

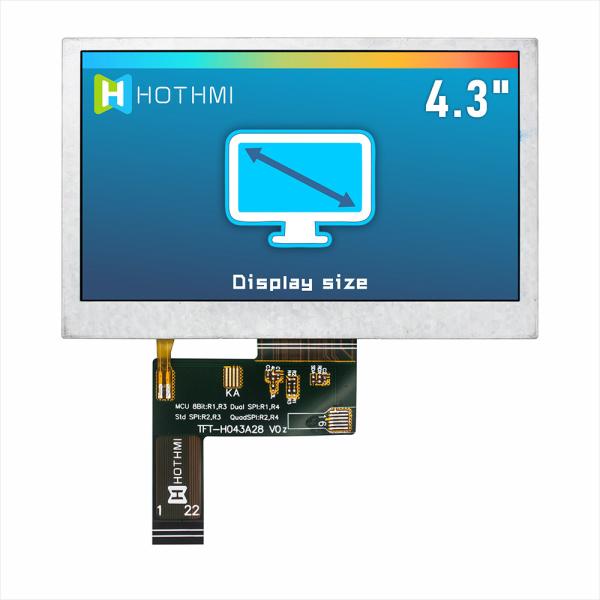

▶ Display inches: 4.3"

▶ Effective size (mm): 95.04x53.86

▶ Application: Instrumentation

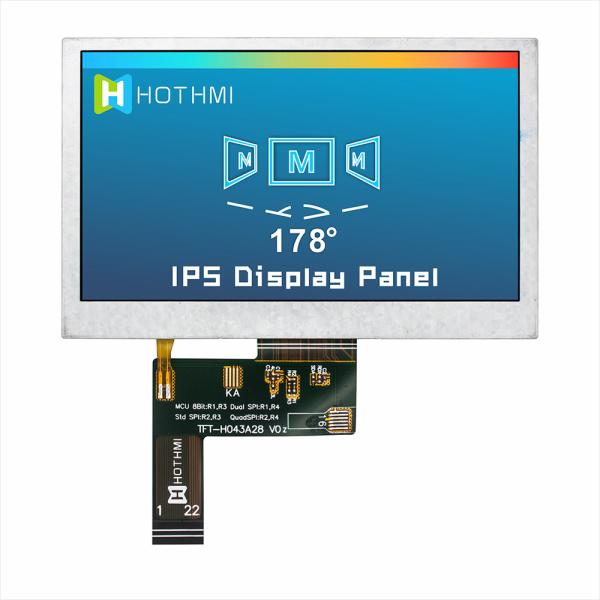

▶ Viewing angle: full viewing angle

▶ Brightness: 1000cd/m2

▶ Pin: FPC-22PIN

▶ Interface: QSPI/MCU

▶ Special instructions: Anti-static ESD 8KV

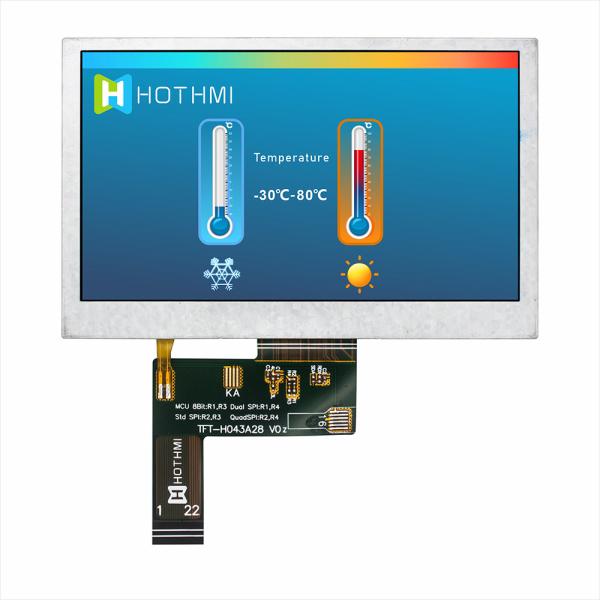

▶ Operating temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: NV3041

4.3-inch high brightness SPI interface TFT display

This 4.3-inch IPS TFT LCD has a resolution of 480x272 pixels and a high contrast ratio of 800:1, which can present deep blacks and vivid colors. It adopts IPS technology to provide full-viewing angle display, ensuring excellent color reproduction, high contrast and consistent image quality.

Core features:

Excellent display performance: high contrast and wide viewing angle, presenting clear and delicate visual effects.

Efficient drive control: built-in NV3041 controller, optimizes display functions, achieves smooth operation and accurate image presentation.

Multiple interface support: equipped with QSPI/MCU interface, compatible with microcontrollers such as C8051, Arduino, STM32, etc., to meet diverse application needs.

Convenient connection: adopts FPC (flexible printed cable) connection method to ensure stable and reliable electrical connection.

Environmentally friendly: The product is RoHS certified and meets strict environmental and safety standards.

Application areas:

Applicable to a wide range of application scenarios such as the Internet of Things, industrial automation, consumer electronics, test and measurement, handheld devices, industrial control systems, home automation and portable electronic products

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.
