Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H070A16SVTFT8C50
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
800x480 Px
Dimensions (mm) :
165x100x7.5
Field of view window size :
U60/D70/L70/R70
Backlight brightness :
50cd/m2
driver chip :
EK9716
Interface :
RGB
Operating Temperature: :
-20~70℃
Description

If you need to purchase please contact https://www.display-lcd.com/

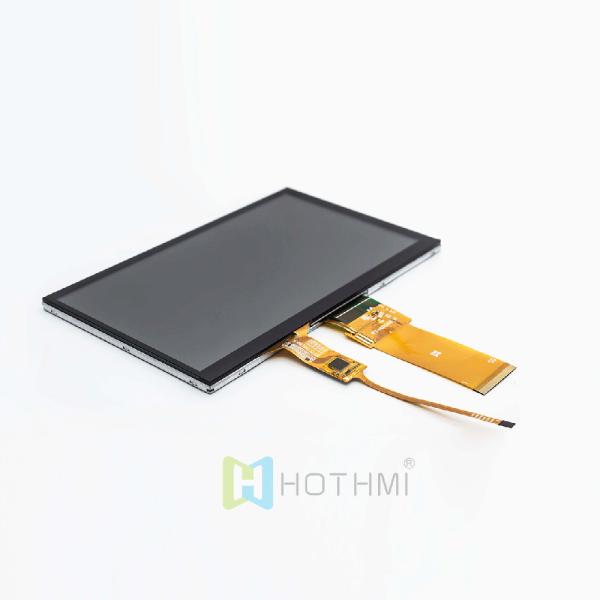

7 inch 800x480px TN Sunlight Readable Capacitive TFT LCD Display Module RGB

▶ Model: TFT-H070A16SVTFT8C50

▶ Product type: TN TFT capacitor module

▶ Dot matrix: 800x480 Px

▶ Overall dimensions (mm): 165x100x7.5

▶ Diagonal size: 7.0"

▶ Effective size (mm): 153.84x85.63

▶ Application: STM32/RK series

▶ Display viewing angle: U60/D70/L70/R70

▶ Brightness: 850cd/m2

▶ Pin: FPC-50PIN

▶ Interface: RGB

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶ Power supply voltage: 3.3V

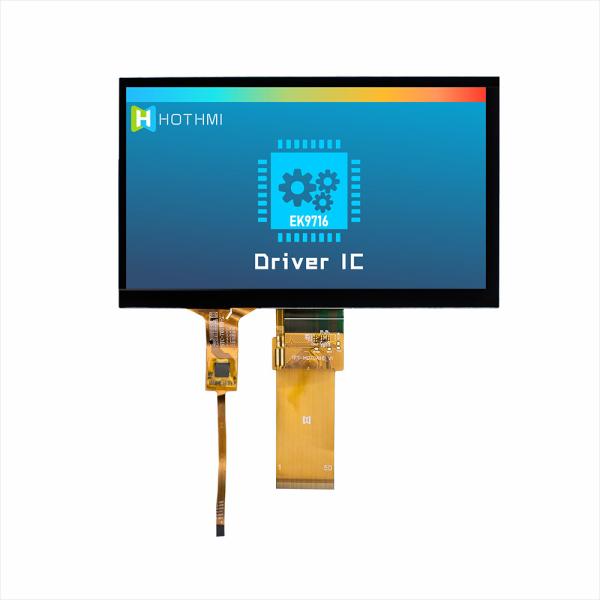

▶ Driver chip: EK9716

▶ Touch panel: capacitive touch (GT911)

TFT-H070A16SVTFT8C50-CTP|7.0-inch TN-TFT-LCD|RGB interface|800x480 pixel resolution LCD screen|Optional capacitive touch/resistive touch|Readable in sunlight

This 7" sunlight-readable TFT LCD offers an 800x480 resolution equipped with a powerful backlight and delivers a luminance of 850 cd/m2, providing visibility in bright lighting conditions, including direct sunlight. The 24-bit LCD has an RGB interface and a 12:00 optimal view. This Liquid Crystal Display is RoHS compliant and compliant with Arduino and other similar boards. It features a 3M brightness enhancing film (BEF) to help increase the backlight intensity and brightness.The transmissive display mode and the 10-point multi-touch capacitive touchscreen make this 7-inch LCD screen the perfect display for indoor and bright outdoor devices. Some industries and applications include industrial, commercial, controls, PLCs, handheld devices for outdoor use, aviation, consumer electronics, medical devices, automotive dashboards, kiosks, field engineering, agriculture, outdoor sports equipment, and many more


project Parameter Description unit
TFT series Standard TFT
Diagonal size 7.0” Inch
Resolution 800 × RGB × 480 (TFT) dots
Dimensions 165x100x7.5 mm
Effective area (AA) 153.84x85.63 mm
LCD type TN TFT
Display perspective U60/D70/L70/R70
Aspect ratio 1.1:2
Backlight type LED, white
TFT driver IC EK9716
Touch panel GT911
Surface Glossy
Brightness 850 cd/㎡
Operating temperature -20~+70 °C
Storage temperature -30~+80 °C
