Specifications
Brand Name :
HOTHMI
Model Number :
HTG12864-125-11Y
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
128x64 dots
Dimensions (mm) :
80x54x10.2
Field of view window size :
6H
driver chip :
ST7565P
Operating Temperature: :
-30~80℃
Description

If you want to buy, please go to https://www.display-lcd.com/

 Here's the revised product description with "yellow-green backlight and gray film" specifications: Product Details: HTG12864-125-0SY-28C05-V02 Dot Matrix Display Panel (Yellow-Green Backlight/Gray Film) Product Overview: The HTG12864-125-0SY-28C05-V02 is a high-performance dot matrix LCD module featuring yellow-green LED backlight and gray film technology. This industrial-grade display offers superior readability in various lighting conditions with its high-contrast design.  Key Features: - 128×64 pixel resolution with crisp character/graphics display - Yellow-green LED backlight with adjustable intensity - High-contrast gray film for improved viewing angles - Low power consumption design - Wide operating temperature range (-30°C to +80°C) - Anti-glare surface treatment - RoHS compliant construction  Technical Specifications: - Display Type: STN LCD with gray film - Viewing Direction: 6 o'clock standard - Backlight Color: Yellow-green (565nm dominant wavelength) - Backlight Lifetime: 50,000 hours minimum - Contrast Ratio: 1:8 (typ.) - Response Time: 300ms (rise), 150ms (fall) - Interface: 8-bit parallel or 3-wire serial - Outline Dimensions: 93.0×70.0×13.5mm - Active Area: 72.7×39.8mm  Electrical Characteristics: - Supply Voltage: 3.3V or 5V versions available - Operating Current: 3.0mA (typ.) without backlight - Backlight Current: 120mA max. at 3.3V - Storage Temperature: -40°C to +85°C  Applications: - Industrial control panels - Medical monitoring equipment - Test and measurement devices - Automotive diagnostic tools - Security system displays  Customization Options: - Backlight intensity adjustment - Custom connector types - Modified viewing direction - Special temperature ranges - EMI shielding options The display module includes comprehensive documentation with mechanical drawings, interface specifications, and application notes for easy integration into your product design.
ITEM PARAMETER DESCRIPTION UNIT
Name HTG12864-125-11Y
Dot matrix 128 x64 Inch
Dimensions 80x54x10.2 mm
VA size 70.7x38.8 mm
AA size 66.52x33.24 mm
Pixel pitch 0.52 x0.52 mm
Driver chip ST7565P
Application voltage 3.3V V
Backlight illumination Y/G
Display mode STN(+)
Driver mode 1/64 duty cycle
Product type Graphic CoG
Polarizer type Transflective

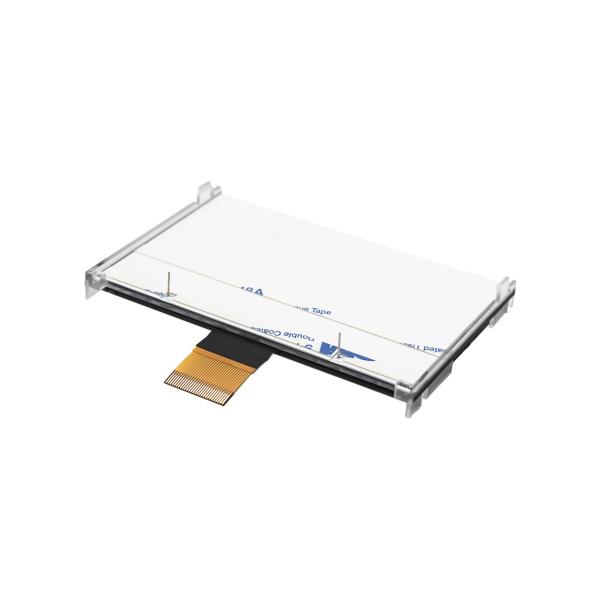

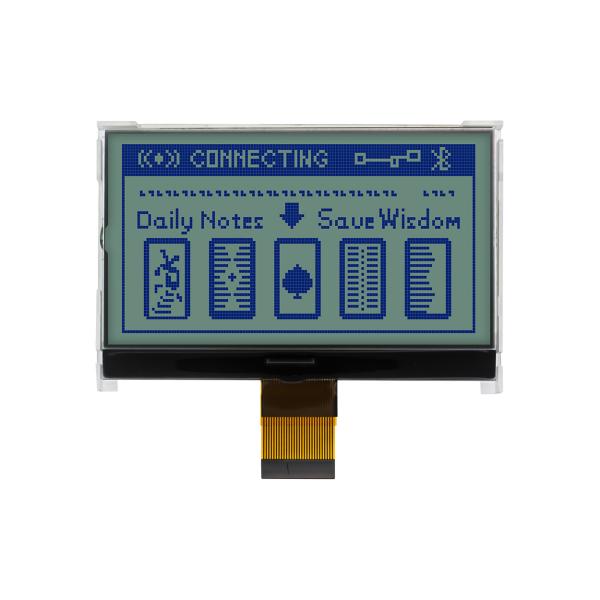

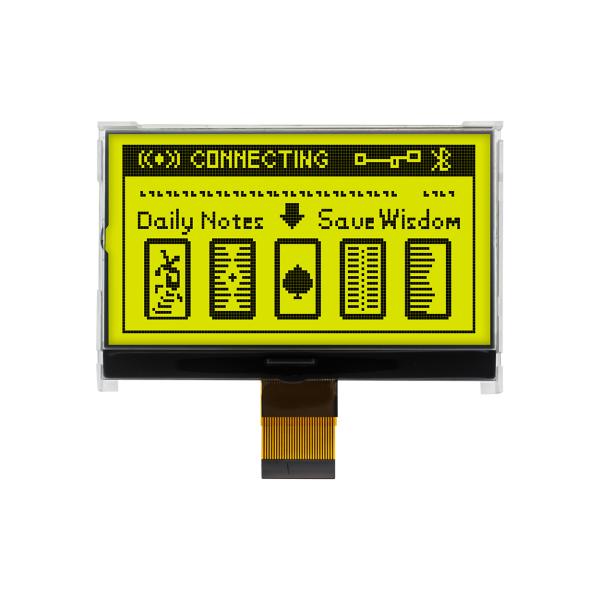

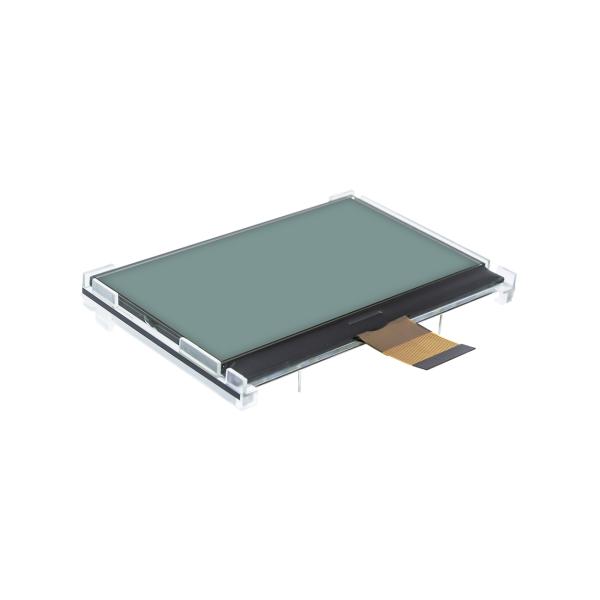

3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V

3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V

3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V
