128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
Specifications
Brand Name :
HOTHMI
Model Number :
HTG12864-101
Place of Origin :
Dongguan, China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product type :
COG
Show contents :
128x64
Outline size(mm) :
48.0x36.0x3.8
Size of View Window(mm) :
44.0x25.0
Display size(mm) :
39.66x19.82
Point spacing(mm) :
0.29x0.29 mm
Visual angle :
6H o'clock
Connection PIN Number :
FFC-28PIN
Interface mode :
I2C/6bit
Working temperature :
-20~70℃
Power supply voltage :
3.0v
Driver chip model :
UC1601S
Description

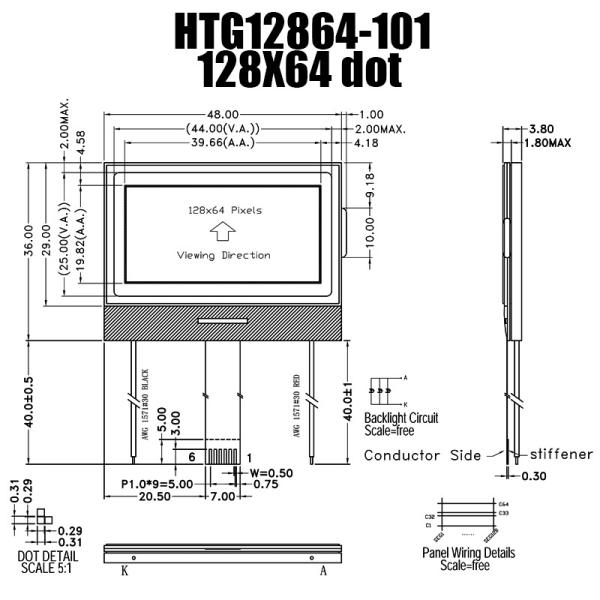

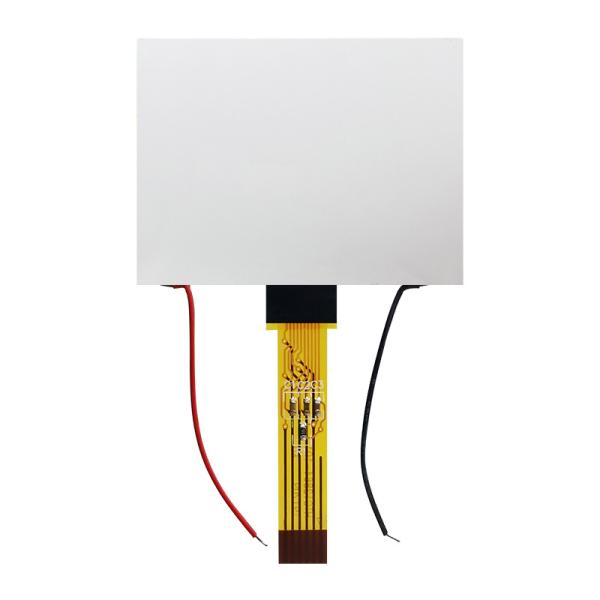

128X64 Graphic COG LCD UC1601S | FSTN Green Display With White Side Backlight/HTG12864-101

HTG12864-101 | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Gray Display


HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864-101 display has an optimal view of 6:00, operates at 3V supply voltage and is RoHS compliant.

Product parameters

ITEM STANDARD VALUE UNIT
Number of dots 128x64 dots
Module dimension 48.0x36.0x3.8 mm
View display area 39.66x19.82 mm
Dot size 0.29x0.29 mm
Dot pitch 0.31x0.31 mm
Operating temp -20~70 ℃
Storage temp -30~80 ℃
Driving Method 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.0V
Viewing direction 6 O’CLOCK
Display mode FSTN
Display type TRANSMISSIVE / NEGATIVE
Driver IC US1601S
Backlight

WHITE

Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage For Logic VDD-VSS － 2.7 3.0 3.3 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
9.15
－		 －
9.45
－		 －
9.75
－		 V
V
V
Input High Volt. VIH － 0.7 VDD － VDD V
Input Low Volt. VIL － Vss － 0.3VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － Vss － 0.2 VDD V
Supply Current IDD VDD=3.0V － 0.45 0.9 mA

Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd
