10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H101A9WSIFTKR40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT Landscape
Display content :
1024x600 dots
Field of View Window Size (mm) :
10.1 inch
Product Application :
Industrial Display/Household Appliances/Medical Equipment
Driver chip model :
EK79001+EK73215
Working temperature :
-20~70℃
Description

10.1 Inch Sunlight Readable Resistive TFT Display/1024x600/EK79001+EK73215/H101A9WSIFTKR40

DESCRIPTION

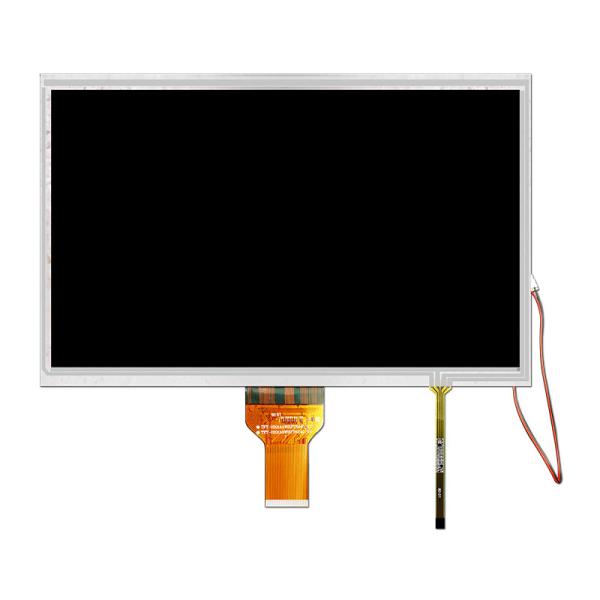

H101A9WSIFTKR40 is a landscape mode 10.1 inch IPS TFT LCD module with Resistive Touch Panel; made of resolution 1024x600 pixels. H101A9WSIFTKR40 model is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800:1 (typical value), brightness 1000 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

The power supply voltage (VDD) of H101A9WSIFTKR40 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

General Feature

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H101A9WSIFTKR40
Diagonal size 10.1” Inch
Resolution 1024x600 Dot

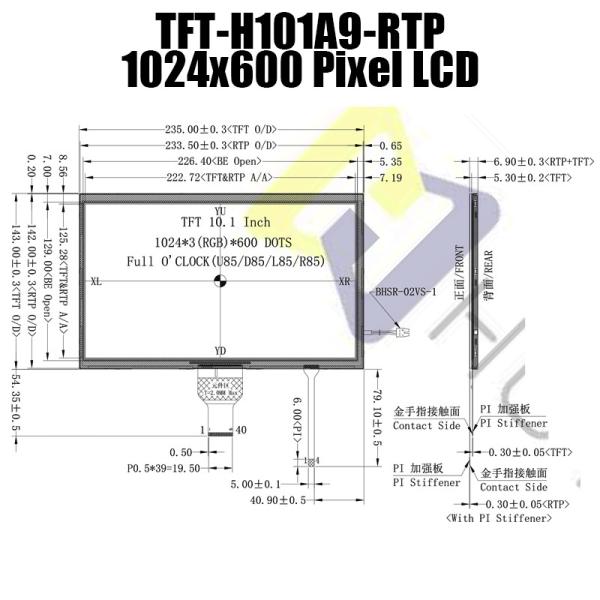

Dimensions 235.00X143X6.9 mm
Active area (AA) 222.72X125.28 mm
LCD type TFT LCD Display mm
Display viewing angle Full View
Aspect ratio
Backlight type LED white
TFT driver IC EK79001+EK73215(TFT)
Brightness 1000 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~80℃ ℃

Search keyword: tft 10.1", 10.1 tft lcd, 10.1" tft lcd, 10.1 inch tft lcd, tft lcd 10.1, 10.1 tft display, 10.1" tft display, 10.1 inch tft display, tft display 10.1", 10.1 tft lcd

10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution

10.1 Inch Resistive TFT LCD Display With 1024x600 Resolution

TFT-H101A9.pdf
