Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H032A3QVTST3N40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT Straight Screen
Dimensions (mm) :
54.34x77.7x2.4
Effective Size (mm) :
48.6x64.8
Viewport Window Size :
3.2"

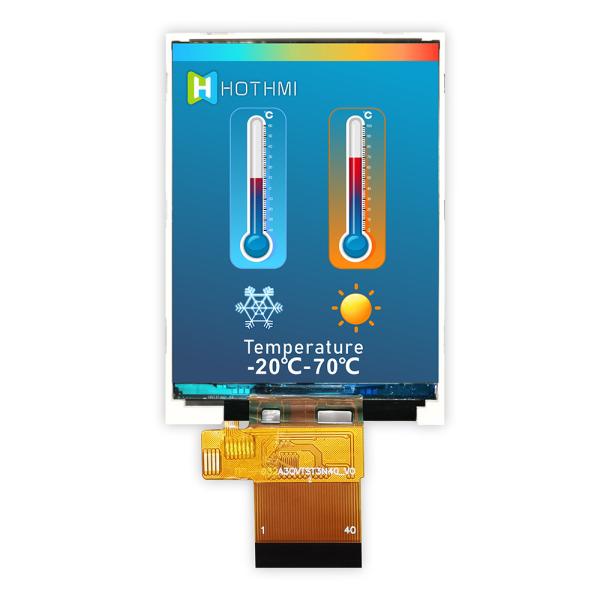

Working temperature :
-20~70℃
Product Application :
Smart Devices such as Monitors
Description

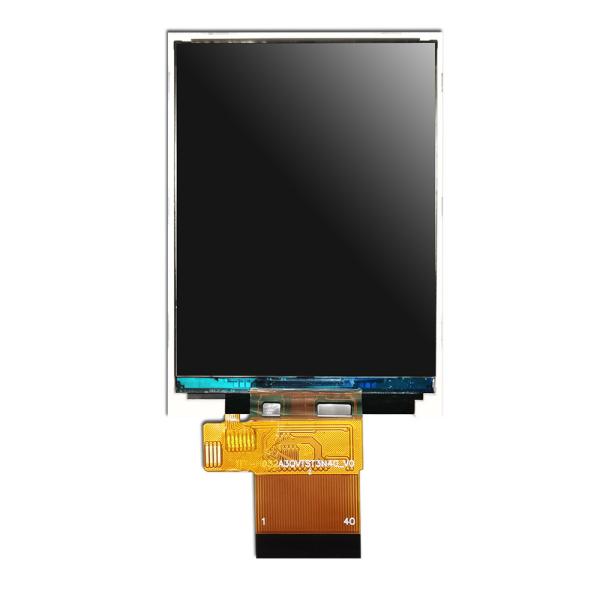

3.2" Portrait 240x320 TFT LCD Module/240 X 320 Dots/TFT-H032A3QVTST3N40

Product parameters

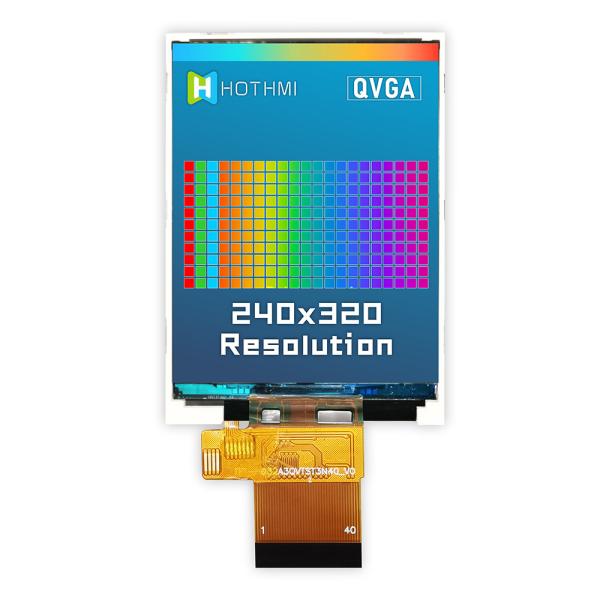

Display Content - 240x320
Display Size - 3.2"
Viewing Angle - 12H o'clock

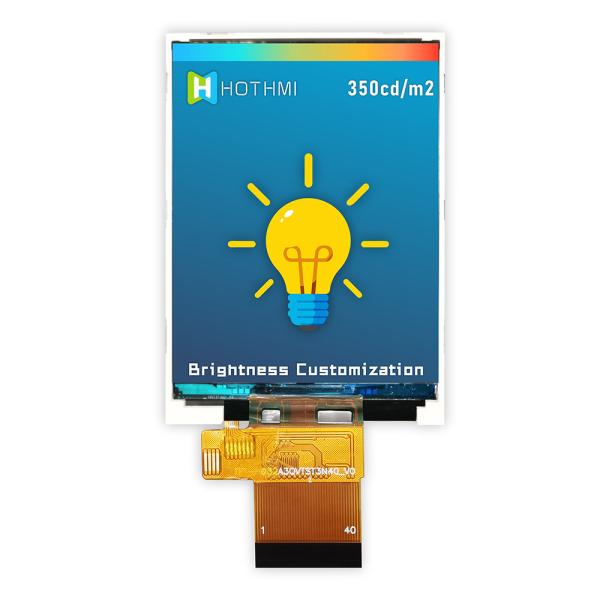

Backlight brightness - 350cd/m2

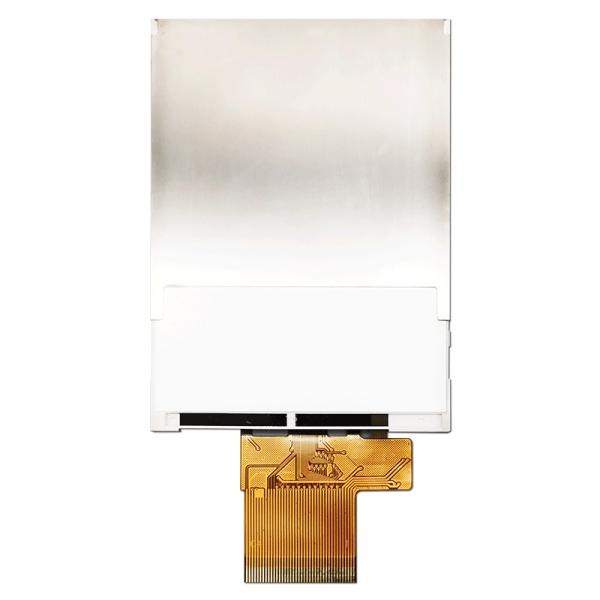

Connection method PIN number - FPC-40PIN
Interface - MCU 8/16+SPI
Supply Voltage - 2.8V
Driver chip model - ST7789V

General Feature:

Item

Standard Value

Unit
Display Size 3.2 Inch
Number of Pixels 240(H)*3(RGB)* 320(V) dots
Active Area 48.60(H)* 64.80(V) mm
Outline Dimension

54.34(H) * 77.70(V) * 2.40(D) <TFT>

 mm
Viewing Direction

12 O'clock

 -
TFT Interface

MCU 8/16 bit compatible with SPI

 -
TFT Driver IC ST7789V -

TFT Driver Condition

 VCI=2.8V,IOVCC=1.8V(Typ) V
Backlight-1 White LED/6 PCS/6 LEDs parallel -
Touch Panel Without TP With RTP With CTP -
CTP Driver IC - - - -
CTP Driver Condition - - - V
Operation Temperature -20 ～ 70

℃
Storage Temperature -30 ～ 80

℃

Product Description


TFT-H032A3QVTST3N40 is an industrial-grade vertical display TFT LCD with a resolution of 240x320 pixels. Using 7789V driver IC, it can support MCU 8/16-bit compatible SPI interface. The typical brightness of the LCD screen is 350 nits, the viewing angle is the full viewing angle direction; the supply voltage (VCI) is 2.8V~3.3V, and the typical value is 2.8V. The working temperature is -20℃~+70℃, and the storage temperature is -30℃~+80℃. The products are used in various small smart devices, home appliances, monitors, etc.

240X320 Color LCD Display IPS Full Viewing Angle with ST7789V240X320 Color LCD Display IPS Full Viewing Angle with ST7789V240X320 Color LCD Display IPS Full Viewing Angle with ST7789V240X320 Color LCD Display IPS Full Viewing Angle with ST7789V240X320 Color LCD Display IPS Full Viewing Angle with ST7789V240X320 Color LCD Display IPS Full Viewing Angle with ST7789V240X320 Color LCD Display IPS Full Viewing Angle with ST7789V

240X320 Color LCD Display IPS Full Viewing Angle with ST7789V

TFT-H032A3QVTST3N40.pdf
