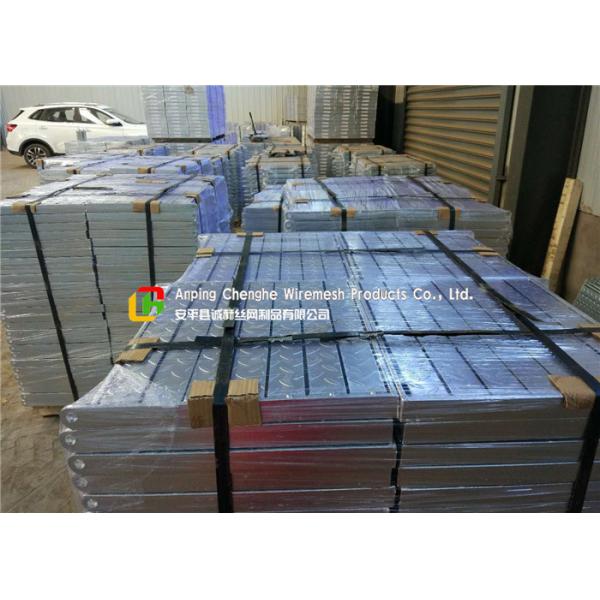

With Chequer Plate and Hinge Hot Dipped Galvanized Steel Grating for House Drain

specification

Hot Dipped Galvanized Steel Grating is the product in accordance with customers requirements that is lined by load flat steel and horizontal rod alternately in a certain space, welded into primary plate in the high voltage resistance welding machine, then through the deep-processing of such working procedures as cutting, slitting, tapping, bordure, etc.

This kind of steel grates can be embeded into the cement, which can make it more steady. The most important is that, we add a small plate on the frame, then people can lock the steel grating by clips, this also prevent some naugty children open the grates and jump and play in the sewer. Meanwhile, the surface is hot dip galvanized, it can stop it from being rust.

Anchor – A device by which grating is attached to its supports.

Band – A flat bar welded to the end of a grating panel, or along the side of a cutout, and extending neither above nor below the bearing bars.
Load Carrying Band: A band used to transfer load between bearing bars.
Trim Band: A band which carries no load, used primarily for appearance and closing open ends.

Bearing Bars – Load carrying main elements made from steel, aluminum, or stainless steel, extending in the direction of the grating span.

Bearing Bar Centers – The distance center-to-center of the bearing bars.

Carriers – Flats or angles which are welded to the grating panel and nosing of a stair tread and are bolted to a stair stringer to support the tread.

Clear Opening – The distance between faces of bearing bars in rectangular gratings, or between a bent connecting bar and a bearing bar in a riveted grating.

Cross Bars – The connecting bars which extend across the bearing bars, usually perpendicular to them. They may be bent into a corrugated or sinuous pattern and, where they intersect the bearing bars, are welded, forged or mechanically locked to them.

Cross Bar Centers – The distance center-to-center of the cross bars.

Curved Cut – A cutout following a curved pattern.

Cutout – An area of grating removed to clear an obstruction or to permit pipes, ducts, columns, etc. to pass through the grating.

Electro-Forged – A process of combining hydraulic pressure and heat fusion to forge bearing bars and cross bars into a panel grid.

With Chequer Plate and Hinge Hot Dipped Galvanized Steel Grating Steel grating advantages:

-Lightweight, easy to install and clean-node,easy to open

-Material saving, slip-resistant and safe

-Nice appearance, high strength, ventilation and light can pass through
