Industrial Plant Serrated Steel Grating With Frame Light Structure High Capacity
Industrial Plant Serrated Steel Grating With Frame Light Structure High Capacity
Specifications
Brand Name :
CHENG HE
Model Number :
Q195 Q235 Q275 Q345 304 316 304L 316L
Certification :
ISO9001
Place of Origin :
HE BEI,CHINA
MOQ :
1pc
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
within 15-20 days after received your 30% advanced payment
Packaging Details :
standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement
Material :
Q195 Q235 Q275 Q345 304 316 304L 316L
Name :
With Frame Serrated Steel Grating For Parking Lot Industrial Plant Highway Bridge Drain
HS Code :
73089000
Bearing Bar Size :
25x5, 30x5, 45x5mm and so on
Description

With Frame Serrated Steel Grating For Parking Lot Industrial Plant Highway Bridge Drain

Description:

. Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

. Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

. Cross Bar Pitch (center to center):
30,40, 50, 60, 76, 80, 90, 100 and so on

. Material:
mild Steel (Low Carbon Steel) or Stainless Steel

. Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing

. Steel grating standards:
- China: YB/T4001-1998
- USA: ANSI/NAAMM (MBG531-88)
- UK: BS4592-1987
- Australia: AS1657-1985
- Japan: JJS.

Product Name Serrated Steel Grating
Material Low Carbon Steel/Stainless Steel
Grade CN:Q235,Q345, US:A36,UK:43A
Standard CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Color Silver/Black
Application petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

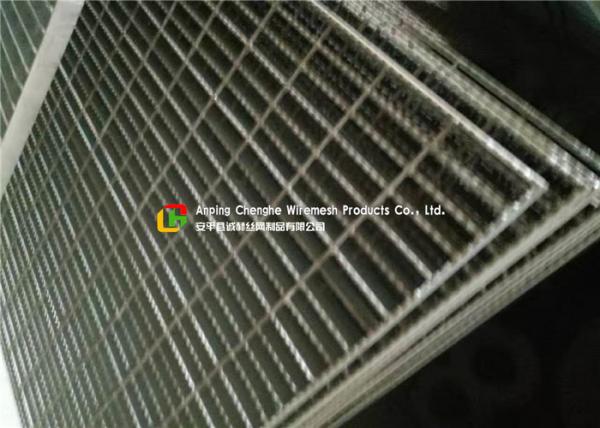

Product Picture

Industrial Plant Serrated Steel Grating With Frame Light Structure High Capacity
