Specifications
Brand Name :
Beihai Galvanizing
Model Number :
Non-standard
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
No limit
Delivery Time :
60-120 working days
Packaging Details :
Like wooden box, suit for shipping and lifting
Company Type :
manufacturing and trading
Origin :
CHINA/TAIWAN since 1990
Scope :
Equipment for a complete hot dip galvanizing plant
Advantage :
High quality
Application :
for galvanizing various steel parts
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service
Condition :
New
Type :
Hot Dip Galvanizing
Coating :
Galvanizing, Zinc or Zn-Al, Hot Dip Galvanizing
Dimension(l*w*h) :
Customized
Product name :
Hot dip galvanizing line
Color :
Customized Color
Control :
Smart control
Furnace :
High velocity pulse firing system
Customers :
Worldwide
Burner :
High velocity pulse fired burner
Size :
Make as customer need or we design
Description
Environmental Friendly Hot Dip Galvanizing Furnace Equipment Production Line Galvanizing White Fume Treatment Supplier
Waste Gas Source and Collection

White fume is generated during the hot dip galvanizing process. While the molten zinc surface typically forms a protective oxide layer that minimizes fume production, significant fume emissions occur when workpieces are immersed in and removed from the zinc kettle due to flux agent stirring and volatilization.

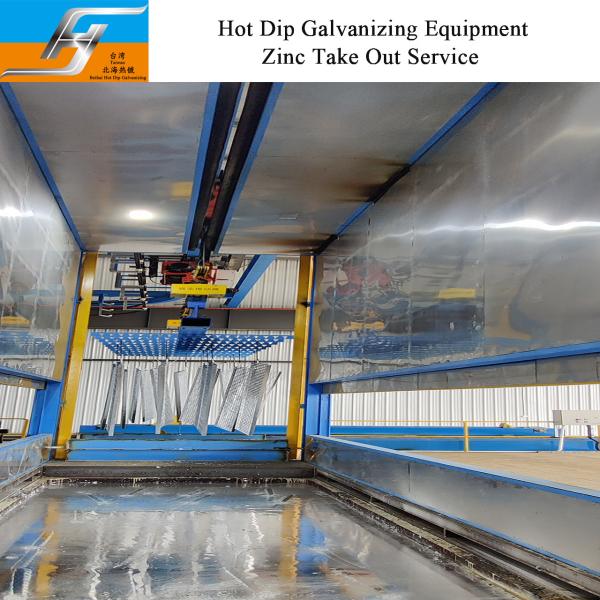

Our system features a top suction hood positioned above the zinc kettle that effectively captures white fume, achieving a capture rate exceeding 98%.

Treatment Process Flow

White fume suction → Dust collector → Filter → Pulse air back blowing → Ash hopper vibrating and cleaning → Emission

Our Comprehensive Services
  • Zinc Kettle Design: Optimal dimension selection based on plant size, material specifications, and processing capacity
  • Plant Layout: Strategic arrangement considering land size, environmental requirements, and galvanizing process flow
  • Civil Work Design: Comprehensive calculations and building drawings for steel and concrete structures
  • HDG Equipment Manufacturing: Complete galvanizing factory equipment from A to Z, including all necessary primary and auxiliary equipment
  • Installation & Commissioning: Professional installation services, user guidance, chemical supply, and technical adjustments
Treatment Performance Specifications
Parameter White Fume
Inlet Gas Concentration 257 mg/m³
Outlet Gas Concentration 25 mg/m³
Removal Rate 95%
Emission Concentration 25 mg/m³
Emission Standard 120 mg/m³
Emission Rate 2.1 kg/h
Main Equipment Overview
Process Equipment Function
Pickling Enclosed pretreatment workshop, Acid fume treatment equipment, Pickling electric hoist/crane Acid fume collection, Environmental protection, Material transfer
Rinsing Wastewater treatment equipment Environmental protection
Degreasing Waste heat recycling system Energy conservation
Fluxing Waste heat recycling system, Iron removal equipment Energy conservation, Material recycling

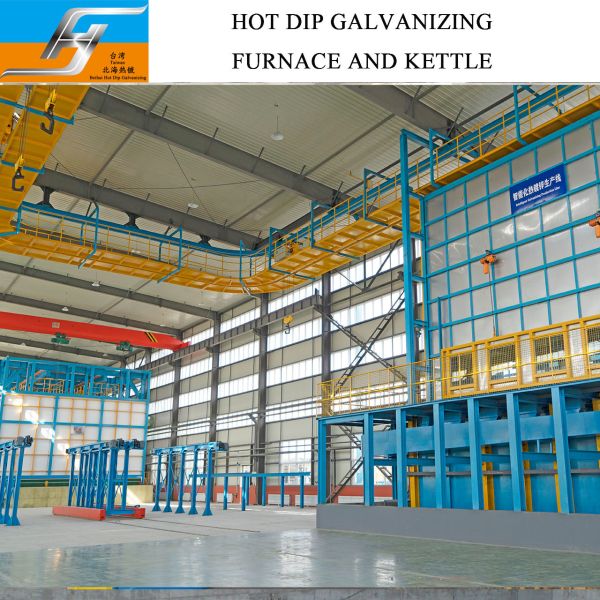

Galvanizing Galvanizing furnace body, Zinc kettle, White fume fixed hood, White fume treatment equipment, Bridge crane/electric hoist Heating, Zinc placement, Fume collection, Environmental protection, Material transfer
Cooling Cooling tower Water recycling
Passivation Chromium-free passivator Effective coating protection
Auxiliary Bridge crane/Flat trolley/Material rack/Transfer pit, Tank's anti-corrosion protection, Zinc ingot/Chemicals/Alloy Material handling, Safety protection, Process necessities
Service Implementation Process
  • Demand communication and analysis
  • Custom plant design and planning
  • Supply of hot dip galvanizing equipment
  • Assembly and commissioning
  • Supply of galvanizing techniques
  • 24-hour after-sales service support
Galvanizing Training Program
  • Hot dip galvanizing theory and principles
  • Zinc ingot melting procedures
  • Zinc kettle operation guidance
  • Fume reduction techniques
  • Coating problem troubleshooting
  • Chemical additive adjustment methods
Why Choose Us

Beihai Galvanizing - Your tailored factory solution, worthy of your trust.

Choose us for a win-win future!
