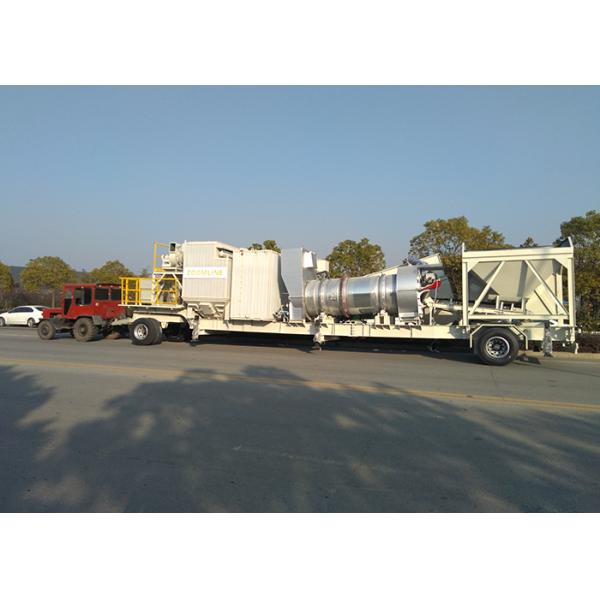

Large Capacity Mobile Hot Mix Plant One Trailer Mounted CE ISO Approved
Large Capacity Mobile Hot Mix Plant One Trailer Mounted CE ISO Approved
Large Capacity Mobile Hot Mix Plant One Trailer Mounted CE ISO Approved
Large Capacity Mobile Hot Mix Plant One Trailer Mounted CE ISO Approved
Large Capacity Mobile Hot Mix Plant One Trailer Mounted CE ISO Approved
Large Capacity Mobile Hot Mix Plant One Trailer Mounted CE ISO Approved
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-CM
Certification :
CE, ISO, EAC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
20-30 working days
Packaging Details :
40HQ contailer or Others
Product name :
Mobile Continuous Asphalt Mixing Plant
Voltage :
220V/380V-50Hz; adjustable, Local Condition
Condition :
New
Power(kw) :
According to the capacity
Color :
Client's Customized
After-sales service provided :
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
Description

Mobile Hot Mix Plant Small Portable Asphalt Plant One Trailer Mounted

Product Description

SUMMARY

ZOOMLINE ZAP-CM series mixing plant is principally used in construction of roads project on small or medium scale.

FEATURES of Small Potable Asphalt Mixing Plant

- Simple structure, easy to move and maintain, and with low equipment investment.

- Concurrent type drying drum structure, the efficiency of heating aggregate is much higher than downstream type fuel consumption is lower, and save energy

- Separated continuous type mixer, the mixing performance is high and make sure the quality of asphalt mixture.

- Scraper type elevator take the asphalt mixture cleaning and smoothly .

- Can be equipped with RAP and filler system.

Technical Parameters of Mobile Continuous Asphalt Mixing Plant

Items ZAP-C(M)20 ZAP-C(M)40 ZAP-C(M)60 ZAP-C(M)80
Plant Capacity 20t/h 40t/h 60t/h 80t/h
Cold Aggregate Feeding System
Hopper capacity 3x4m3 4x4m3 4 x 6.5m3 4 x 6.5m3
Belt capacity 40t/h 60t/h 80t/h 100t/h
Drying System
Drying drum size 1000x4500mm 1200x5000mm 1500x6500mm 1500x6500mm
Drying capacity 15-25t/h 40-50t/h 60-70t/h 80-100t/h
Burner (oil) 40-130kg/h 70-300kg/h 100-400kg/h 60-600kg/h
Fuel consumption (oil) 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t
Dust Collecting System
Exhaust Fan power 5.5kw 7.5kw 30kw 30kw
Finished Asphalt Silo 2m3 2.5m3 4.5m3 4.5m3
Asphalt Temperature 130-160 ℃ 130-160 ℃ 130-160 ℃ 130-160 ℃
Total Power -27kw -57kw -92kw -100kw

Plant capacity is base on standard working condition as followings:

Atmospheric pressure 760mmHg
Ambient temperature 20℃
Material passing 40mm mesh 100%
Material passing 3mm mesh 40%
Material passing 74µm ≤7%
Aggregate temperature at discharging end of drum dryer 160℃
Density of aggregate 1650kg/m3
Specific heat of aggregate 0.21kcal/kg℃
Filler content 5%
Bitumen content 5%
Sand content ≤40%
Max.aggregate size ≤40mm
Average moisture of cold aggregates ≤5%
Diesel calorific value ≥10500Kcal/kg
Heavy oil calorific value ≥9850Kcal/kg
Nature gas calorific value ≥8000Kcal/Nm3
Coal calorific value ≥5500Kcal/kg

Large Capacity Mobile Hot Mix Plant One Trailer Mounted CE ISO Approved
