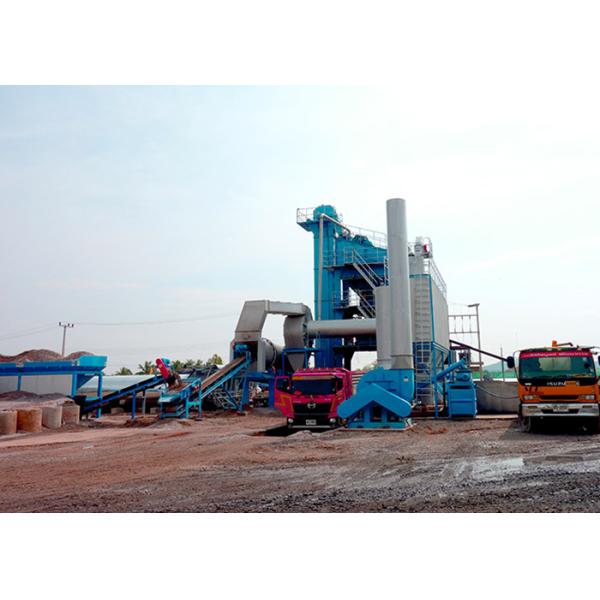

390kw Power Asphalt Mixing Plant 120t/H Capacity Automatic Control 140t Weight
390kw Power Asphalt Mixing Plant 120t/H Capacity Automatic Control 140t Weight
390kw Power Asphalt Mixing Plant 120t/H Capacity Automatic Control 140t Weight
390kw Power Asphalt Mixing Plant 120t/H Capacity Automatic Control 140t Weight
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-S120
Certification :
ISO,CE.GOST,EMC,EAC
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets per Month
Delivery Time :
5-25 working days after received the down payment
Packaging Details :
Our Asphalt Mixing Plant is packed by 40' containers.
Product name :
ZOOMLINE asphalt mixing plant / 120t/h hot mix asphalt plant
Condition :
New
Power :
390kw
Air Emissions :
≤20mg/Nm3
Control System :
Germany SIEMENS
Weight :
140t
Mixer capacity :
1500Kg/batch
Dust bag filter :
USA NOMEX Bag house filter
Burner :
Italy EBICO Coal/Oil/Gas type
Capacity :
120t/h
Description

ZOOMLINE asphalt mixing plant / 120t/h hot mix asphalt plant

Main features of ZAP-S120 stationary asphalt batch mix plant:


1. 120t/h asphalt batch mix plant is the product combined with various advantages of western models, adopts modular design, compact structure, simple assembly and transport.
2. Components adopt international famous brand, keep pace with the international advanced technology, can guarantee high reliability and security of the equipment in long operating terms.
3. The strict trial assembly, test machine of each equipment before delivery can guarantee stable quality and high standard of the product.
4. Adopts human-computer interface and PLC control system, perfect human-machine exchange function, easy to operate; has manual, semi-auto, automatic control function; have remote fault detect and maintenance function, can solve the problem at the first time.
5. Reasonable and multiple layout mode, can change the layout according to different requirement, to adapt the actual construction requirement better.

Main components of 120t/h batch mix asphalt plant

  • Cold Aggregate Feeding Bin
  • Drying Drum & Burning System
  • Mixing Tower
  • Bitumen Storage & Heating System
  • Dust Collecting System
  • Control System

Technical parameters of ZAP-S120 batch mix asphalt plant:

ZAP-S120 asphalt batching plant
Rated capacity 120T/H Standard condition
Total power 390kw Standard configuration
Cold aggregate kinds 4
Rated drying capacity 120T/H 5% moisture
Mixing cycle 45S
Mixer volume 1500kg
vibration screen single axle circle vibrating screen Four- deck
Fuel consumption ≤6.5kg/t finished product
Fuel type Heavy/ Light oil Coal burner is optional
Control mode Manual/ Automatic
Finished product temperature 140-180°C
Aggregate weighting precision ±0.5% Dynamic
Mineral weighting precision ±0.5% Dynamic
Bitumen weighting precision ±0.3% Dynamic
Dust control way Bag house dust collector
Exhaust emission concentration ≤20mg/Nm3
Finished product bin Bottom placed/side placed Optional
