Specifications

Brand Name :

Model Number :

FY-51WS

Certification :

CE approved

Place of Origin :

China,Shanghai

MOQ :

1 set

Price :

USD$ 3500/3400/3300/3200

Payment Terms :

L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability :

300 sets per month

Delivery Time :

5-8 working days

Packaging Details :

wooden box

Product name :

hydraulic hose crimping machine

Voltage /Power(w) :

220V/240V/380V/415V(Optional) ；3KW/4KW

Gross Weight :

260kgs

Dimension(l*w*h) :

730*480*740 mm

After-sales service provided :

Video technical support,Online support

Crimping force :

600Ton

Crimping range :

6-76mm/6-102mm

Application :

Crimp Hose

Free dies :

10sets

System pressure :

31.5MPA

Output Volume Of Pump :

2.5L/5L/10L

HIGH LIGHT :

Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine

Description

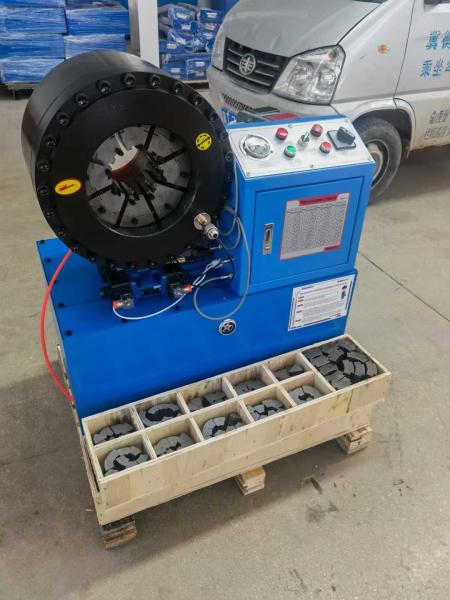

3 Inch /4 inch Industrial Hydraulic Hose Pipe Crimping Machine Compact Structure

Hydraulic Hose Pipe Crimping Machine DESCRIPTION

Product Description

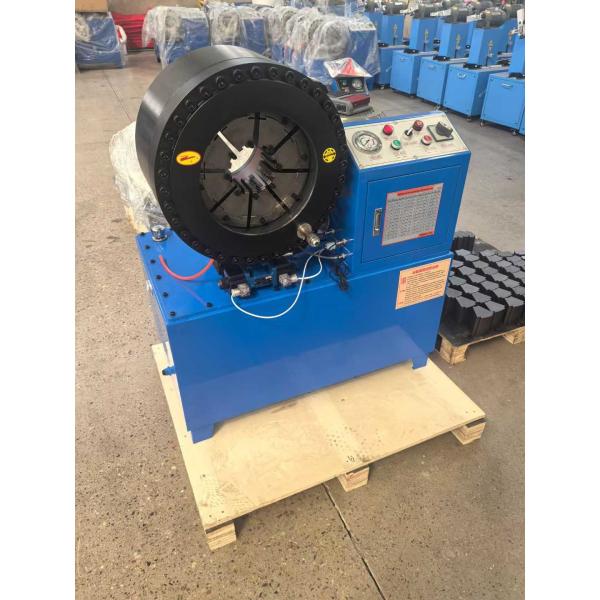

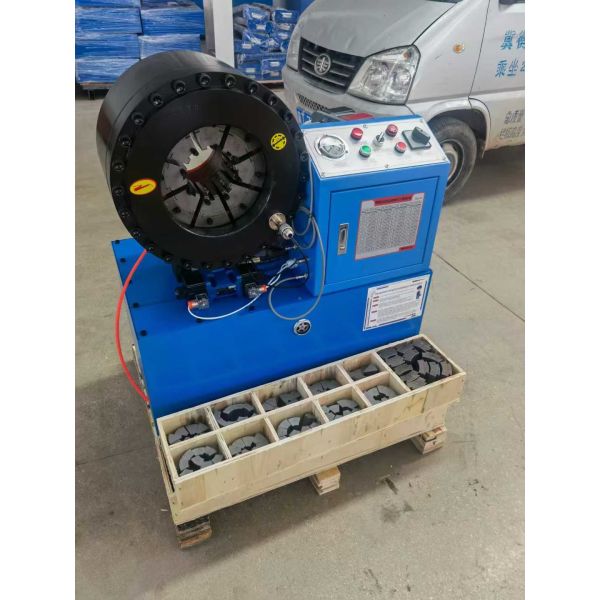

Product Name: Electric Hydraulic Hose Crimping Machine
Model: Shorter Model
Crimping Capacity: 3 Inch and 4 Inch
Color: Blue
Power Rating: 3 kW
Control System: Button Control
Structure: Compact Design

Key Features:

High Capacity Crimping: Capable of crimping larger hoses (3 and 4 inches), making it suitable for industrial applications.
User-Friendly Button System: The intuitive button control allows for straightforward operation, enhancing user efficiency.
Compact Structure: Designed for space-saving without compromising power, making it ideal for workshops with limited space.

Market Advantage:

This electric hydraulic hose crimping machine is perfect for industrial professionals requiring a robust and efficient solution for braided hose crimping.

Hydraulic Hose Pipe Crimping Machine Specification

crimping range	6-76mm(1/4''-3''/4 inch inner diameter of hose)
quantity of dies	10 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	2.5L/5L/10L(Optional)
system pressure	26Mpa/31.5Mpa(Optional)
motor power	3kw/4kw 1,2,3 phase (Optional)
voltage	220V/380V/415V(Customizable) 50/60Hz
crimping force	600T
work efficiency	200pcs/h
maximum open diameter	114mm
the max open tolerance	±30mm
machine dimension	730480740mm
package dimension	10706401150mm
Net weight	245kg
Gross weight	260kg

Hose Crimping Machine TECHNICAL DATA

Model	FY-51WS Hose Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	30mm
Die Sets	10
Maximum Open Diameter	114MM
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200 pcs/h
Standard Voltage	220(V)/380(V)
Motor Power	3(KW)/4(KW0
Length	730(mm)
Width	480(mm)
Height	740(mm)
Weight	245(KG)

Hydraulic Hose Pipe Crimping Machine MAIN FEATURES

1. Forged crimping clylinder, high hardness;

2. Multifunctional operate panel, two operate mode;

3. Pressure Gauge, system shown clearly during crimping;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

main product

Hydraulic Hose Crimping Machine
Manual Hose Crimping Machine
Rubber Hose Crimping Machine
DX68 Hose Crimping Machine
AC Hose Crimping Machine

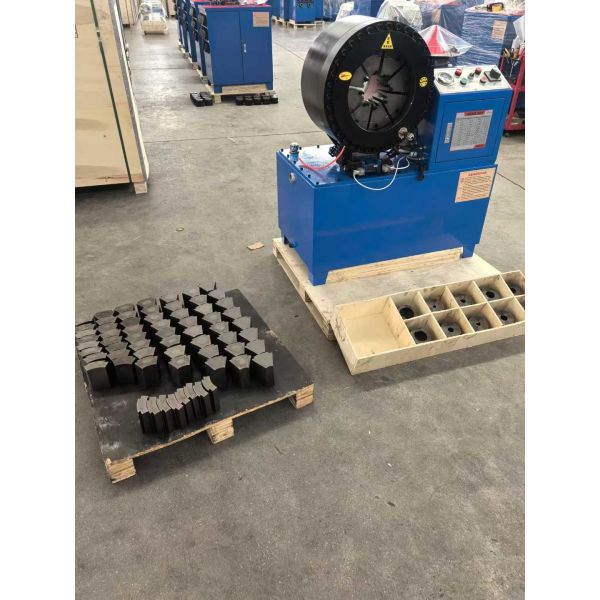

► DIE SETS WITH HIGH HARDNESS

10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
