Specifications
Brand Name :
FY
Model Number :
FY-51BY
Certification :
CE
Place of Origin :
China,Shanghai
MOQ :
1 set
Price :
USD$ 1700/1650
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
2-7 working days
Packaging Details :
wooden box
Voltage :
220V/240V/380V/415V(Optional)
Gross Weight :
326kgs
Net Weight :
310kg
Power(w) :
3KW
Dimension(l*w*h) :
860*640*1300 mm
Package Dimension :
900*685*1410 mm
Warranty :
1 Year
Condition :
New
After-sales service provided :
Video technical support,Online support
Crimping force :
600Ton
Product name :
2" Electric 6-51mm 1/4 To 2 Inch High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine/hose Crimper/hose Pressor Excavator Hose Press Tool
Crimping range :
6-51mm
Color :
Blue,blue or customize
Application :
Crimp Hose
Free dies :
10sets
System pressure :
31.5MPA
Output Volume Of Pump :
2.5L/5L/10L
HIGH LIGHT :
Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine
Description

2" Electric 6-51mm 1/4 To 2 Inch High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine/hose Crimper/hose Pressor Excavator Hose Press Tool


2 Inch Electric Hydraulic Hose Crimping Machine - High Model

Product Description

Introducing the 2 Inch Electric Hydraulic Hose Crimping Machine, designed for efficient crimping of hoses ranging from 6mm to 51mm (1/4 inch to 2 inches). This powerful and portable crimper features a basic model button system and includes 10 dies for versatile applications, making it an essential tool for excavator and hydraulic hose assembly.

Key Features

  • Electric Operation: The electric design ensures consistent power and performance, allowing for precise crimping with minimal effort.
  • Wide Hose Compatibility: Capable of crimping hoses from 6mm to 51mm (1/4 inch to 2 inches), this machine is versatile enough to handle various hydraulic applications.
  • Basic Model Button System: The intuitive button control system simplifies operation, making it accessible for users of all experience levels.
  • 10 Dies Included: Equipped with 10 different dies, this crimper allows for quick adjustments to accommodate various hose sizes, enhancing efficiency.
  • Portable Design: Its lightweight and compact design make it easy to transport, ideal for on-site use in excavator and hydraulic applications.

Advantages

  1. Powerful Performance: The electric motor provides robust crimping capabilities, ensuring secure and leak-proof connections for high-pressure hoses.
  2. Versatile Applications: Suitable for a variety of hydraulic hoses, this machine is perfect for automotive, industrial, and excavator tasks.
  3. Ease of Use: The button control system makes operation straightforward, allowing for quick training and efficient use.
  4. Compact and Portable: Designed for mobility, this crimper can easily be moved to different job sites, enhancing convenience.

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies


crimping range/skiving range
6-51mm(1/4''-2''inner diameter of hose)
quantity of dies
10 sets
item diesNo. of
length 60mm(15,19,23,26)
Length 70mm(31,36,41)
Length 80mm(47,55,60)
accuracy
0.01mm
output volume of pump
2.5L/5L/10L(Optional)
system pressure
26Mpa/31.5Mpa(Optional)
motor power
3kw/4kw 1,2,3 phase (Optional)
voltage
220V/380V/415V(Customizable) 50/60Hz
crimping force
500T
work efficiency
200pcs/h
maximum open diameter
114mm
the max open tolerance
±30mm
package dimension
900*680*1450mm
machine dimension
860*640*1300mm
Net weight
310kg
Gross weight
320kg

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies


TECHNICAL DATA

Model FY-51BY Hose Crimping Machine
Crimping Range 6-51(mm)
Crimping Force 600(T)
Hose Size 1/4-2(inch)
Max. Opening 30±mm
Die Sets 10

Maximum Open Diameter

 114MM
System Pressure 31.5(Mpa)
Accuracy 0.01(mm)

Work Efficiency

 200 pcs/h
Standard Voltage

220v/240v/380v/415v(optional)
Motor Power 3(KW)
Length 860(mm)
Width 640(mm)
Height 1300(mm)
Weight 310(KG)


NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;


OPTIONAL

- Quick Change Tool

- UC control;

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies

► TWO MODE EASY ALTERNATED

Automatic or semi-automatic mode can be choosen

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies


► FOOT PEDAL SWITCH

Free hands for big hose, more convenient; Double usage, both closing and opening function

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies


► PEDAL SWITCH

Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies


► HIGH QUALITY MOTOR

Copper wire aluminium motor, goof heat releasing

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies

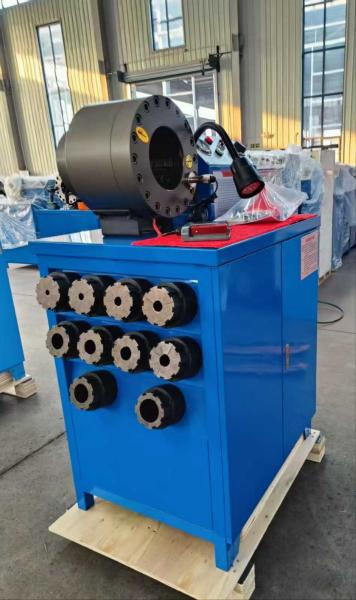

► SAFE DIE SET STORAGE

A box inside the machine body for storing the die sets

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies

► APPLICATIONS

2 Inch Electric Hydraulic Hose Crimper 6-51mm with 10 Dies
