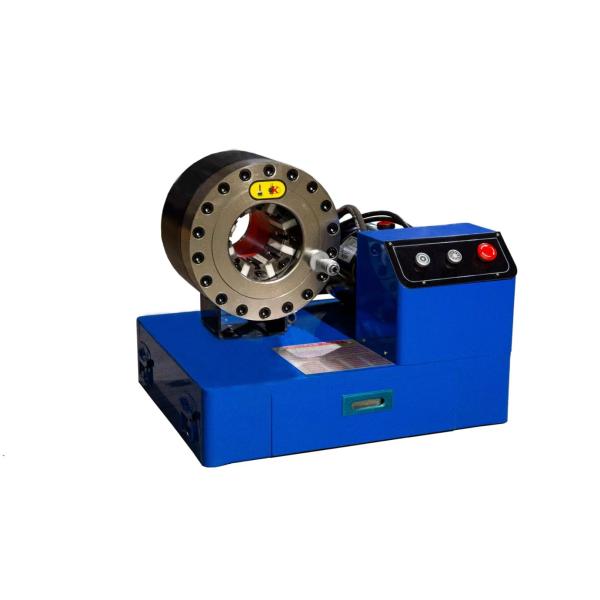

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-51mm/hose Crimper/hose Crimping Machine
Product Description
Introducing our 2 Inch Manual Hose Crimper, a powerful and versatile tool designed for efficient hose assembly in various applications. This battery-driven hydraulic hose crimping machine features 10 dies and accommodates hose sizes from 6mm to 51mm, making it ideal for both industrial and automotive use. With its striking blue color and robust construction, this crimper is not only functional but also visually appealing.
Key Features
- Versatile Die Selection: Equipped with 10 different dies, this hose crimper allows you to easily crimp a wide range of hose sizes, ensuring flexibility for various applications.
- Dual Voltage Operation: The machine operates at both 12V and 24V, providing the convenience of use in different environments, whether in the workshop or on-site.
- Manual Control: Designed for ease of use, this crimper allows for precise control during the crimping process, ensuring consistent and reliable results.
- Durable Construction: Made from high-quality materials, this crimper is built to withstand the rigors of demanding work environments, ensuring long-lasting performance.
- User-Friendly Design: The intuitive design of the machine makes it easy to operate, allowing users of all skill levels to achieve accurate crimping.
Advantages
- Cost-Effective: The battery-driven design eliminates the need for electrical outlets, reducing operational costs and making it suitable for remote locations.
- Portability: Lightweight and compact, this 2-inch manual hose crimper is easy to transport, making it perfect for fieldwork and mobile repairs.
- Reliable Performance: The crimper delivers consistent crimp quality, ensuring strong, leak-proof connections for hydraulic hoses.
- Minimal Maintenance: With fewer components than electric models, this crimper requires less maintenance, enhancing its reliability and lifespan.
TECHNICAL DATA
Model | FY-51CZ Pipe Crimping Machine |
Crimping Range | 6-51(mm) |
Crimping Force | 600(T) |
Hose Size | 1/4-2(inch) |
Max. Opening | 114(mm) |
Die Sets | 10 |
output volume of pump | 4L |
System Pressure | 30(Mpa) |
Accuracy | 0.01(mm) |
the max open tolerance | 30 ±mm |
Standard Voltage | 12V/24(V) |
Motor Power | 3.6(KW) |
Length | 650(mm) |
Width | 600(mm) |
Height | 600(mm) |
Weight | 170(KG) |












NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
Crimping Range | 6-51mm(1/4''-2''inner diameter of hose) |
The Largest Crimping Pressure | 600T |
accurcy | 0.01mm |
Dimension | 0.75m*0.70m*0.70m(0.37 m³) |
Maximum open diameter | 114mm |
dies | 10 sets |
Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47) |
Output volume of pump | 4L |
Rated pressure | 30Mpa |
Work efficiency | 200pcs/h |
Weight | 170kg |
packing dimension | 750*700*700mm |
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
Crimping Range | 6-51mm(1/4''-2''inner diameter of hose) |
The Largest Crimping Pressure | 600T |
accurcy | 0.01mm |
Dimension | 0.75m*0.70m*0.70m(0.37 m³) |
Maximum open diameter | 114mm |
dies | 10 sets |
Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47) |
Output volume of pump | 4L |
Rated pressure | 30Mpa |
Work efficiency | 200pcs/h |
Weight | 170kg |
packing dimension | 750*700*700mm |
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
