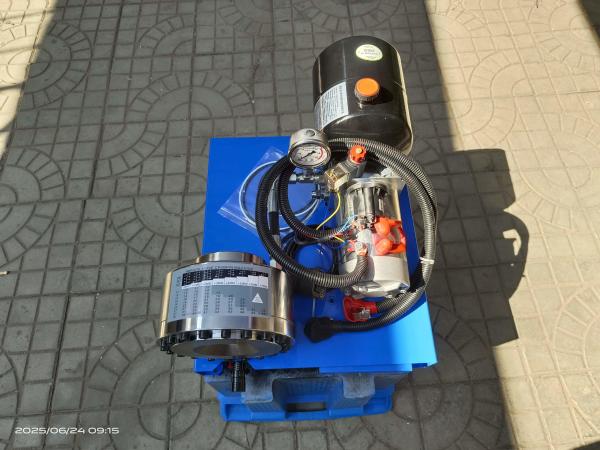

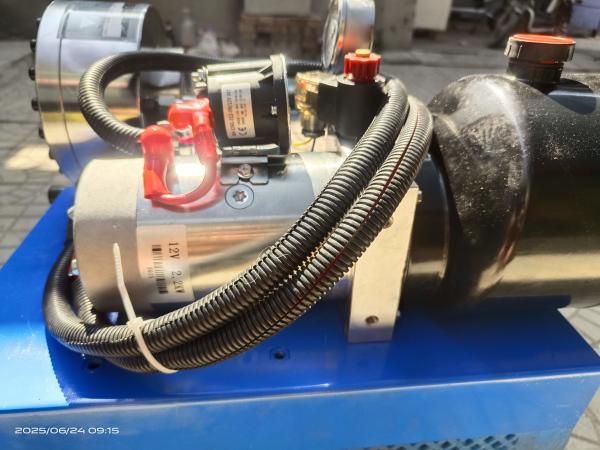

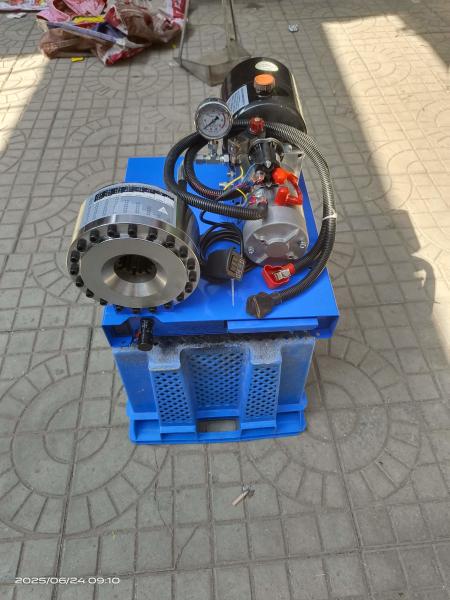

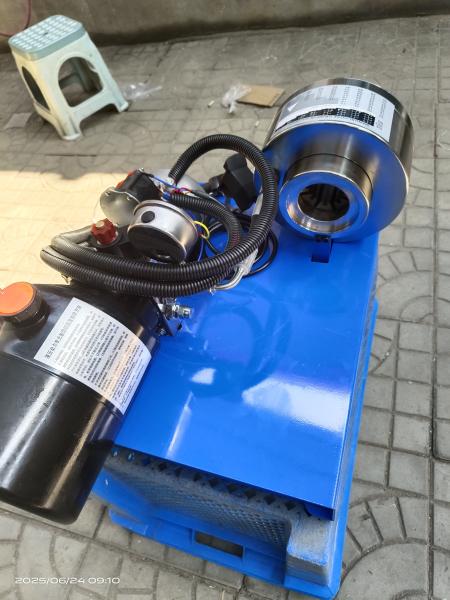

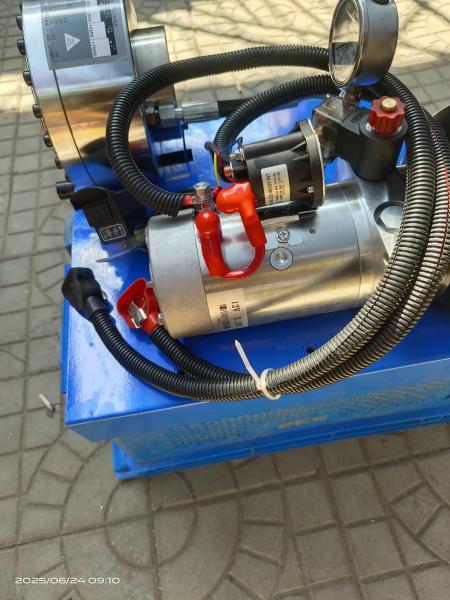

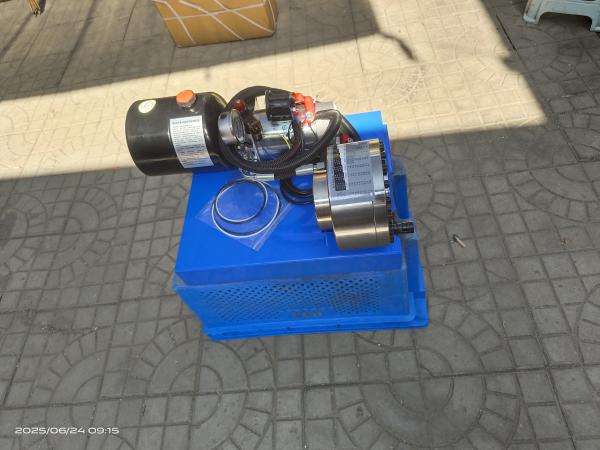

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
Specifications
Brand Name :
FY
Model Number :
FY-25CZ
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
2-7 working days
Packaging Details :
export standard wooden box
Reinforcement :
1-4 layers wire
crimping range :
6-25 mm
quantity of dies :
7 sets
accuracy :
0.01 mm
system pressure :
30mpa
motor power :
1500w
voltage :
12v/24v(optional),depend on cliend demand
crimping force :
0.6Mt
Product Name :
12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine/Hose crimping machine 6-25mm
Description

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine/Hose crimping machine 6-25mm

Product Description

Product Name: Braided Hose Crimper

Voltage Options: 12V/24V

Hose Diameter Range: 6 to 25mm (up to 1 Inch)

Includes: 7 Dies for Versatile Applications

Operation: Battery-Driven Hydraulic

Key Features:

  • Versatile Crimping: Designed to crimp hoses from 6mm to 25mm, making it suitable for various applications.
  • Battery-Powered Convenience: Operates on 12V or 24V battery power, allowing for portability and ease of use without being tethered to an outlet.
  • Multiple Dies: Comes with 7 different dies, providing flexibility for different hose sizes and types.
  • TECHNICAL DATA
Model FY-25CZ Pipe Crimping Machine
Crimping Range 6-25(mm)
Crimping Force 600(T)
Hose Size 1/4-1(inch)
Max. Opening 114(mm)
Die Sets 7
output volume of pump
4L
System Pressure 30(Mpa)
Accuracy 0.01(mm)
the max open tolerance
30 ±mm
Standard Voltage 12V/24(V)
Motor Power 1.5(KW)
Length 600(mm)
Width 450(mm)
Height 350(mm)
Weight 52(KG)

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm












12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available

Crimping Range
6-25mm(1/4''-1''inner diameter of hose)
The Largest Crimping Pressure
600T
accurcy
0.01mm
Dimension
0.6m*0.45m*0.35m(0.1 m³)
Maximum open diameter
114mm
dies
7 sets
Item No.of dies
length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump
4L
Rated pressure
30Mpa
Work efficiency
200pcs/h
Weight
52kg
packing dimension
620*470*370mm

OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit


► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

► MICROMETER
FY25CZ is with high accuracy dial, 0.01mm.

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm

► WIDE USAGE
FY-25CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.

12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm


12V/24V 7 Dies 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-25mm
