Specifications
Brand Name :
FY
Model Number :
FY-P38
Certification :
CE
Place of Origin :
China,Shanghai
MOQ :
1 set
Price :
USD$ 1850/1800/1750/1700
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
2-7 working days
Packaging Details :
wooden box
Voltage :
220V/240V/380V/415V(Optional)
Gross Weight :
300kgs
Net Weight :
275kg
Power(w) :
3KW/4KW
Dimension(l*w*h) :
950*630*700 mm
Package Dimension :
1000*680*750 mm
Warranty :
1 Year
Condition :
New
After-sales service provided :
Video technical support,Online support
Crimping force :
300Ton/0.3MT
Product name :
6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool And Rack And 10 Interchangeable Dies PLC Control Systerm For Versatile Crimping
Crimping range :
6-51mm/1.5 inch/2 inch
Color :
Blue,blue or customize
Application :
Crimp Hose
Free dies :
10 sets
System pressure :
26MPA/31.5MPA/260 bar/315 bar
Output Volume Of Pump :
2.5L/5L
HIGH LIGHT :
Advanced hydraulic pipe crimping machine, Dash control hydraulic pipe crimping machine, pipe crimping machine
Description
6-51mm Hydraulic Hose Crimping Machine
Discover the efficiency of the 6-51mm Hydraulic Hose Crimping Machine, designed for precision and versatility in hydraulic applications. This advanced machine features a fast change mould tool, a robust rack for stability, and 10 interchangeable dies, making it an essential tool for hydraulic repair shops, automotive service centers, and oil industries across the USA, Europe, and Southeast Asia. Equipped with a PLC control system, it elevates your crimping operations to new levels of efficiency and accuracy.
Key Features
  • Crimping Range: Effectively crimps hoses from 6mm to 51mm, accommodating a wide variety of sizes for diverse applications
  • Fast Change Mould Tool: Innovative design allows operators to swiftly switch between dies, significantly reducing downtime
  • 10 Interchangeable Dies: Ensures compatibility with numerous hose sizes, enhancing versatility in various settings
  • PLC Control System: Automates the crimping process with precise control over parameters for consistent results
  • Robust Construction: Built from high-quality materials to endure heavy-duty use, ensuring durability and longevity
Performance Advantages
  • Enhanced Productivity: PLC control system and fast change mould tool enable efficient operation and faster task completion
  • Versatile Applications: Suitable for hydraulic repair shops, automotive services, oil distribution, and various industries
  • Reliable Consistency: Advanced control system ensures each crimp meets stringent quality standards, reducing failure risks
  • Cost-Effective Solution: Consolidates multiple functions in one machine, reducing initial investment and maintenance costs
  • Minimal Maintenance: Durable design minimizes repair frequency, allowing focus on productivity
Technical Specifications
Model FY-P51 Hose Crimping Machine
Crimping Range 6-51mm (1/4"-2")
Crimping Force 300T
System Pressure 26Mpa/31.5Mpa (Optional)
Accuracy 0.01mm
Work Efficiency 200 pcs/h
Voltage Options 220V/240V/380V/415V
Motor Power 3KW/4KW
Dimensions (L*W*H) 950*630*700 mm
Weight 275kg
Die Sets Included 10 sets
Premium Components

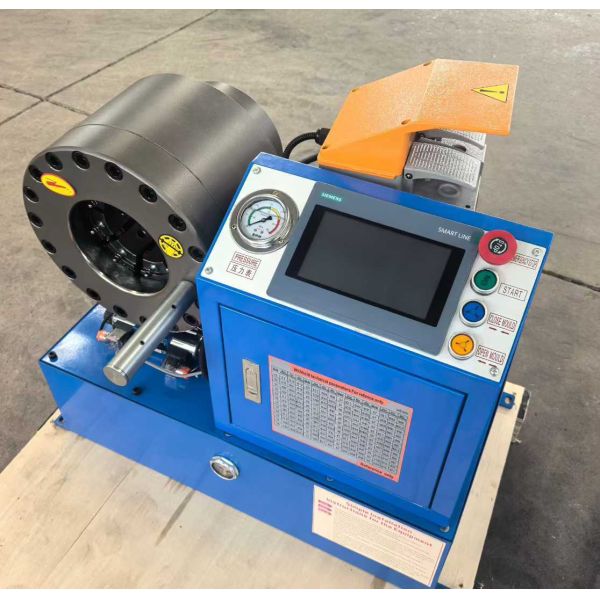

Advanced PLC System: Multifunctional control panel with different operation modes
6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping
High-Quality Die Sets: 8 die sets with hardness 59-63HRC and quick change tool
6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping
Premium Motor: World-famous motor with high stability
6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping
Forged Oil Cylinder: Higher anti-wear ability compared to traditional technology
6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping
Applications
The FY-P38 is a high-performance hose crimper capable of crimping various materials including:
  • High pressure stainless steel braided hydraulic oil hoses
  • Industrial flexible pipes
  • Air or water hoses
  • Cables and wires
  • Steel and iron tubes
  • Brake lines in automotive systems
  • Air suspension or springs
6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping

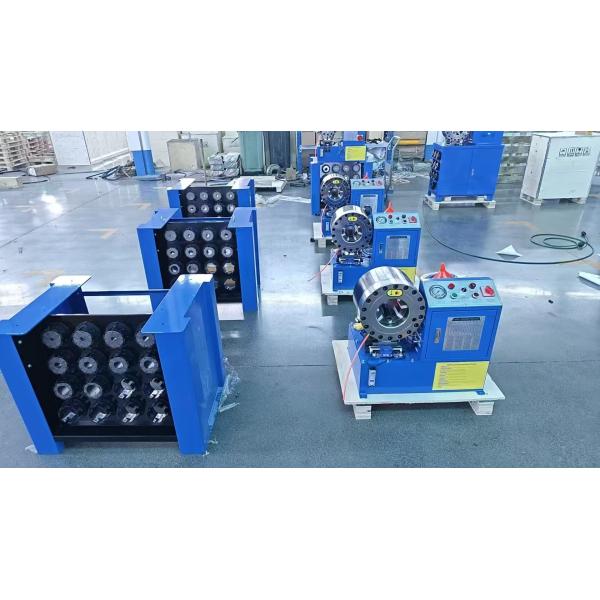

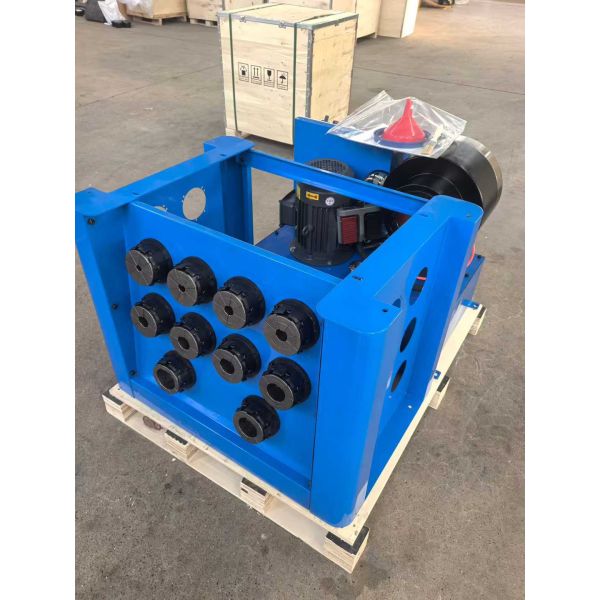

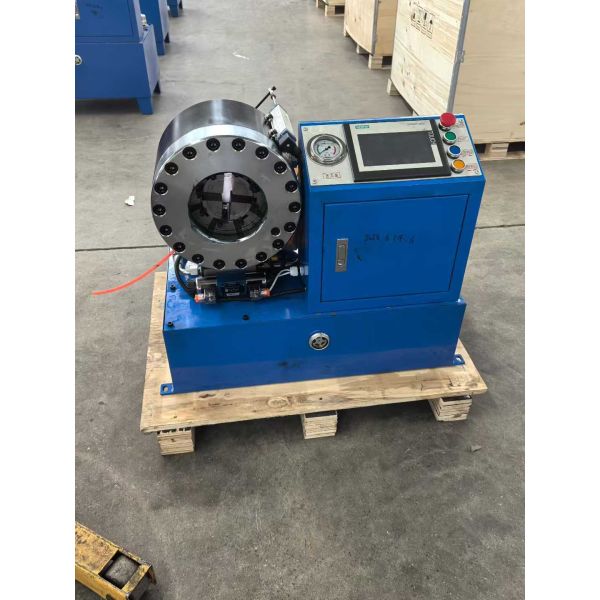

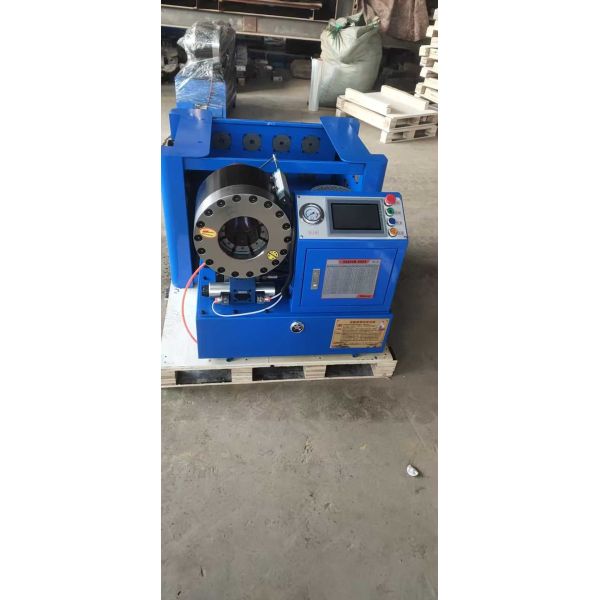

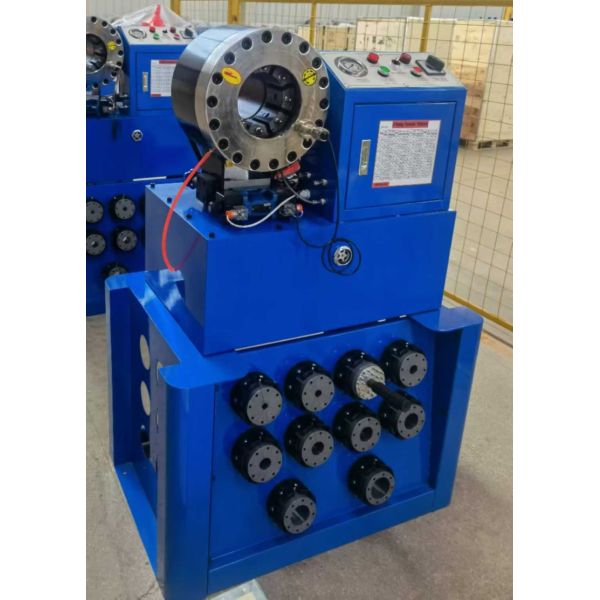

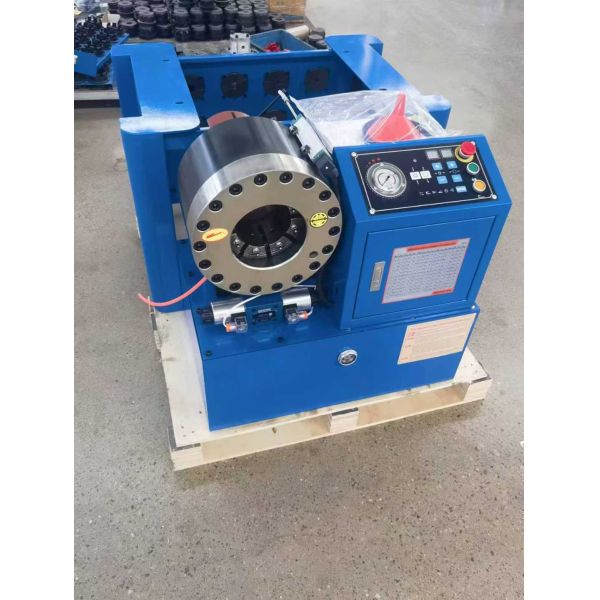

Product Images
6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping
Product Video


Additional Information
Note:
  • Non-standard die sets available
  • Customized die sets can be provided
  • Special voltages (220V, 240V, 380V, 415V) available
