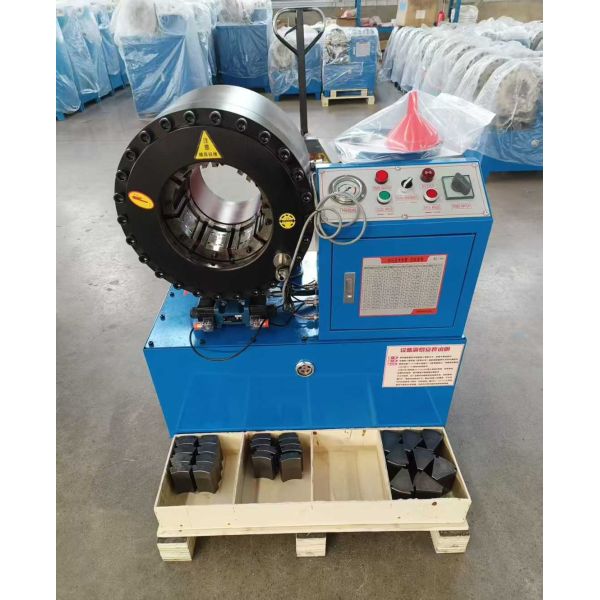

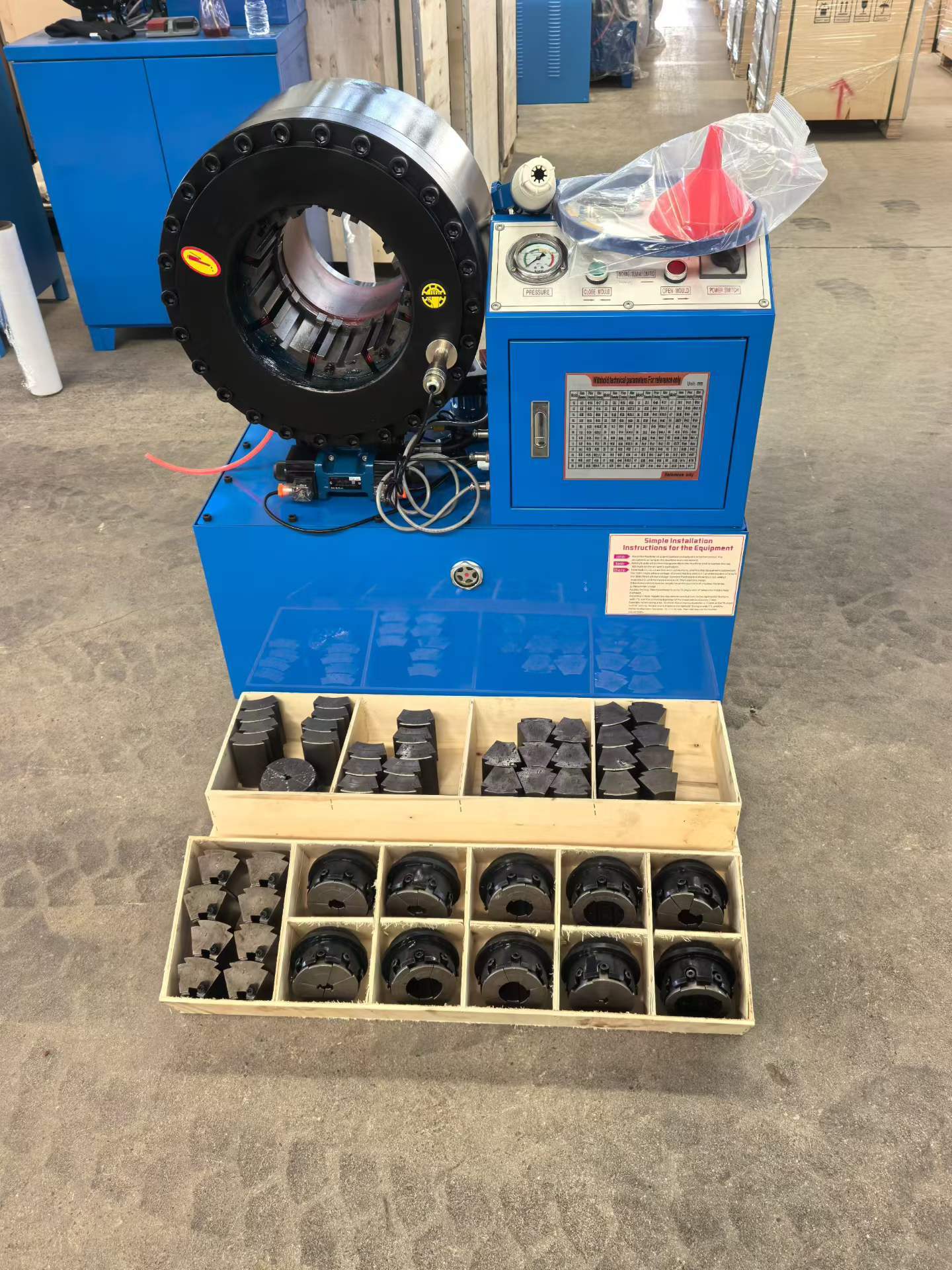

6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
Specifications
MOQ :
1 set
Delivery Time :
2-7 working days
Certification :
CE
Model Number :
FY-150
Product Name :
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
Supply Ability :
300 sets per month
Brand Name :
FY
Crimping range :
4-150mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Price :
USD$ 4550
Place of Origin :
Shanghai,China
Packaging Details :
export standard wooden box
Description
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies

Product Overview

6-Inch (Up to 150mm) Hydraulic Hose Crimping Machine: Master of 6-Layer Hoses with Unmatched Range and Opening

Overview: Unrivaled Power and Precision for the Toughest Hydraulic Hose Assemblies

In the most demanding industrial environments, where hydraulic systems operate under extreme pressures, the integrity of hose assemblies is paramount. Our 6-Inch (Up to 150mm) Hydraulic Hose Crimping Machine is engineered to excel in these conditions, specifically designed to crimp even the most robust 6-layer/wire hoses with absolute precision and reliability. Boasting an expansive 4-150mm crimping range and a generously large opening, this machine effortlessly handles a vast array of hose sizes and types. Equipped with 20 high-quality, interchangeable dies, this Hydraulic Hose Crimping Machine is the definitive solution for hydraulic/car repair shops, the oil industry, and hose manufacturers across the USA, Europe, and Southeast Asia. It offers uncompromising strength, adaptability, and consistent quality for all large-diameter, multi-layered hose assembly needs, representing a strategic investment in operational excellence and long-term reliability for heavy-duty applications.

Key Features & Advantages: Engineered for Extreme Durability and Versatility

Unmatched Capability: Crimping 6-Layer/Wire Hoses with Confidence

The standout feature of this Hydraulic Hose Crimping Machine is its exceptional ability to securely crimp 6-layer/wire hoses. This capability is critical for applications where hydraulic systems operate under immense pressure and require the highest level of hose integrity. Our machine delivers the necessary force and precision to create unyielding connections on these multi-layered hoses, ensuring maximum safety and preventing premature failure. This specialized strength makes it an indispensable tool for industries where only the most robust hose assemblies will suffice, providing unparalleled peace of mind and operational security.

Expansive 4-150mm Crimping Range: Master Any Large-Diameter Hose

This Hydraulic Hose Crimping Machine boasts an extraordinary 4-150mm (6-inch) crimping range, providing unparalleled capability to handle an immense variety of hydraulic hose sizes. From standard industrial lines to the largest, most robust hoses utilized in heavy machinery, marine, and mining applications, this machine covers it all. This broad versatility significantly reduces the need for multiple specialized machines, thereby optimizing workshop space and reducing overall capital expenditure. The inclusion of 20 high-quality, interchangeable dies further enhances its adaptability, allowing operators to swiftly and efficiently transition between different hose and fitting specifications without compromising on accuracy or operational efficiency.

Large Opening Design: Effortless Handling of Complex and Bulky Assemblies

Designed with the practical demands of heavy-duty work in mind, this Hydraulic Hose Crimping Machine features a generously large opening. This ample clearance is critical for easily accommodating complex hose assemblies, including those with bulky fittings, flanges, or multiple bends. The large opening simplifies the insertion and removal of hoses, significantly improving operational efficiency and reducing the risk of damage to both hoses and fittings during the crimping process. This thoughtful design makes it ideal for a wider range of specialized and challenging applications, enhancing overall productivity and safety in high-stakes environments.

Robust Construction: Built to Endure the Harshest Industrial Conditions

Crafted with an unwavering commitment to durability, this Hydraulic Hose Crimping Machine features a heavy-duty construction utilizing premium-grade materials. Its sturdy frame provides exceptional stability during high-pressure crimping operations, ensuring consistent results and minimizing wear and tear. This robust build guarantees a long operational lifespan and minimal maintenance, representing a sound investment that delivers consistent, high-quality results for years to come, even in the most challenging industrial conditions. It is a testament to enduring quality and reliable performance.

Enhanced Efficiency and Precision for High-Volume Operations

This Hydraulic Hose Crimping Machine is not only powerful but also meticulously designed for enhanced efficiency and precision in large-scale operations. The combination of its wide crimping range, large opening, and comprehensive set of 20 dies allows for rapid and accurate processing of high volumes of hoses. This leads to increased throughput, reduced labor costs, and significantly boosted productivity, making it an invaluable asset for businesses with demanding production schedules and a focus on lean manufacturing principles in heavy industries.
Technical Specifications
Model FY-150 High Pressure Hose Crimper
Crimping Range 4-150(mm)
Crimping Force 2500(T)
Hose Size 1/8-6(inch)
Max. Opening 235(mm)
Die Sets 20
Output Volume Of Pump 10L/16L
System Pressure 31.5(Mpa)
Accuracy 0.01(mm)
Work Efficiency 200pcs/h
Standard Voltage 110v/220v/240/380/415v
Motor Power 4KW/5.5(KW)
Length 850(mm)
Width 530(mm)
Height 980(mm)
Weight 820(KG)
Additional Specifications
Crimping Range / Skiving Range 4-150mm(1/8''-6''inner diameter of hose)
Quantity of Dies 20 sets
Item Dies Length 60mm(15,19,23,26) | Length 70mm(31,36,41) | Length 80mm(47,55,60)
Accuracy 0.01mm
Output Volume of Pump 10L/16L
System Pressure 31.5Mpa
Motor Power 4kw/5.5KW
Voltage 110V/220V/380V/415V,50HZ/60HZ
Crimping Force 2500T
Work Efficiency 200pcs/h
Maximum Open Diameter 235mm
The Max Open Tolerance ±30mm
Package Dimension 850*530*980mm
Machine Dimension 910*590*1210mm
Net Weight 820kg
Gross Weight 850kg
Frequently Asked Questions
Q1: What is the maximum hose diameter this machine can crimp?
A1: The machine supports hose outer diameters up to 150 mm (6 inches).
Q2: Can it handle hoses with multiple reinforcement layers?
A2: Yes — this press is designed to crimp hoses with up to six reinforcement layers; verify specific hose construction with the supplier to ensure correct die selection.
Q3: How many dies come with the machine and can I order more?
A3: The standard package includes 20 interchangeable dies. Additional and custom dies for special fittings or non-standard hoses are available on request.
Q4: Is this machine suitable for mobile service trucks?
A4: Due to its size and weight, this model is primarily intended for fixed workshop or factory installations. For mobile applications, consider a compact DC-powered crimper.
Q5: What maintenance does the machine require?
A5: Regular maintenance includes hydraulic oil checks and replacement, inspection of seals and hoses, die condition checks, lubrication of moving parts, and verification of safety systems. Follow the manufacturer's maintenance schedule.
Product Features
High Quality Material

Apply world famous hydraulic cylinder producing technology, 40Cr and Cr12Mov steel with high hardness

6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
Pedal Switch

Big double use foot pedal, more convenient

6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
Human Design Panel

Simple structure easy for operating, high efficiency

6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
Crimping Samples
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
Additional Notes
  • " * " for non standard die sets
  • Customized die sets are available
  • Special voltage 110v/220v/240/380/415v are available
Product Images
6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies 6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies 6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies 6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies 6 Inch Up To 150mm Hydraulic Hose Crimping Machine Crimping 6 Layers/wires Hose 4-150mm Crimping Range Large Opening And 20 Interchangeable Dies
SEO Keywords

Hydraulic Hose Crimping Machine, 6 Inch Hose Crimper, 4-150 mm crimper, industrial hose press, large opening hose crimper, high pressure hydraulic hose crimper, Wide Range High Pressure Hose Crimper, Flexible High Pressure Hose Crimper

Conclusion

This 6 Inch Press Hydraulic Hose Crimping Machine combines wide capacity, heavy-duty reliability and precise hydraulic control for demanding industrial environments. With a 4-150 mm range, six-layer handling and 20 dies, it is ideal for heavy equipment maintenance, oilfield support and large-scale hose manufacturing in the USA, Europe and Southeast Asia. Contact your local supplier to specify power configuration, die sets and installation requirements.
