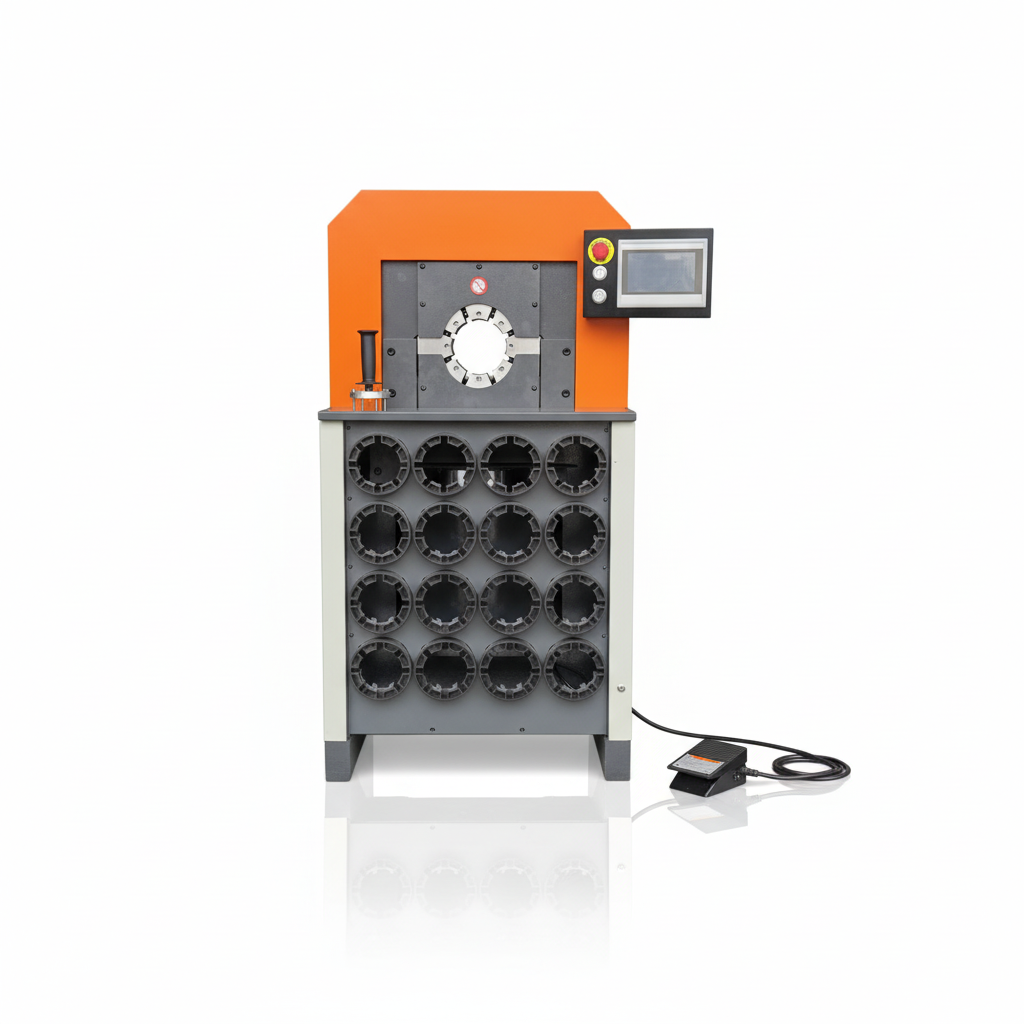

P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
Specifications
Brand Name :
MENSION
Model Number :
MS-P150
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2 1/2 inch
Die Sets :
14
Color :
Grey and Orange
Max. Opening :
61mm
Crimping Force :
780T
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
720*970*1600mm
Weight :
1020Kg
Model :
P150 Hose Crimper
Description
P150 CNC Automatic Hydraulic Hose Crimping Machine

MS‑P150 Heavy‑Duty Hydraulic Hose Crimping Machine Heavy-duty industrial pipe crimper tool with exceptional crimping force, engineered for extreme high-pressure operations and the production of 2-inch 6-layer steel spiral hydraulic rubber hose assemblies.

Product Overview

The MS-P150 is a heavy-duty hydraulic crimping machine built for extreme high-pressure applications. It performs exceptionally well in crimping large elbows, fittings and couplings for 2-inch 6-layer steel spiral hydraulic hose assemblies.

Key Advantages

  • High-stability microcomputer control system ensures consistent, reliable performance even under long-term heavy use.
  • Custom-designed fork-type quick-change mold system greatly improves mold replacement efficiency and reduces downtime.
  • Large ergonomic foot pedal enables safer, more convenient operation when handling large-diameter hoses.
  • High-grade die sets and heavy-duty hydraulic cylinder guarantee long service life and low maintenance costs.
Technical Specifications
Model MS-P150 AC Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 780 (T)
Hose Size 1/4 - 2 1/2 (inch) 6 Spiral
Max. Opening 61 (mm)
Die Sets 14
Die Set Type P150
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control UC
Standard Voltage 380 (V) Three Phase
Motor Power 3.75 (KW)
Length 720 (mm)
Width 970 (mm)
Height 1600 (mm)
Weight 1020 (KG)
P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
P150 Hose Crimper Die Sets
Die No. Crimping Range Length
6 * 6 ... 8mm 55mm
8 * 8 ... 10mm 55mm
10 * 10 ... 12mm 55mm
12 * 12 ... 14mm 55mm
14 14 ... 16mm 55mm
16 16 ... 19mm 55mm
19 19 ... 22mm 55mm
22 22 ... 26mm 70mm
26 26 ... 30mm 70mm
30 30 ... 34mm 70mm
34 34 ... 39mm 75mm
39 39 ... 45mm 75mm
45 45 ... 51mm 90mm
51 51 ... 57mm 90mm
57 57 ... 63mm 100mm
63 63 ... 69mm 110mm
69 69 ... 74mm 110mm
74 74 ... 80mm 110mm
78 * 78 ... 87mm 110mm
* indicates non-standard molds. Crimping range specifications are based on standard molds.
Important Notes
  • " * " indicates non-standard molds
  • Crimping range specifications are based on standard molds
  • Customized die sets with different shapes and sizes are available
  • Customized voltage options: 110V, 208V, 220V, 240V, 415V
Advanced Crimping Head Design
The P150 utilizes vertical movement technology for dies and master die, differing from traditional hydraulic crimping unit designs. This innovation provides easier positioning and enhanced capability for pressing large elbow or shaped fittings.
P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
Premium Die Set Processing
All die sets undergo surface polishing treatment after high-frequency processing. This protects the galvanized layer of couplings during pressing, resulting in hose assemblies with superior anti-rust capabilities.
P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
Quick Change Tool and Machine Rack
Designed for convenient die set changes and safe storage of die sets, this feature significantly improves productivity and operational efficiency.
P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
Large Double-Use Foot Pedal
The oversized foot pedal frees both of the operator's hands, dramatically improving working efficiency. With dual functionality controlling both closing and opening operations, it simplifies hose assembly crimping tasks.
P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
Application Scope
The P150 hose crimper machine is specifically engineered for hydraulic high pressure hoses with large elbow fittings. It finds extensive application in car AC hoses, hydraulic oil hoses, air hoses, water pipes, industrial hoses, and wire and cable crimping operations.
P150 CNC Automatic Hydraulic Hose Crimping Machine Heavy-Duty Industrial Pipe Crimper Tool
