Hydraulic Hose Crimper Tool DX68 Hose Crimping Machine Hose Fitting Press
Hydraulic Hose Crimper Tool DX68 Hose Crimping Machine Hose Fitting Press
Specifications
Brand Name :
MENSION
Model Number :
MS-SP52
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4'' - 2''
Die Sets :
10 sets
Max. Opening :
25mm
Crimping Force :
640T
Product :
Crimping Hose Machine
Application :
Workshop
Control Method :
Button Control
Voltage :
380V
Size :
630*450*600mm
Weight :
200Kg
Description
Hydraulic Hose Crimper Tool DX68 Hose Crimping Machine Hose Fitting Press

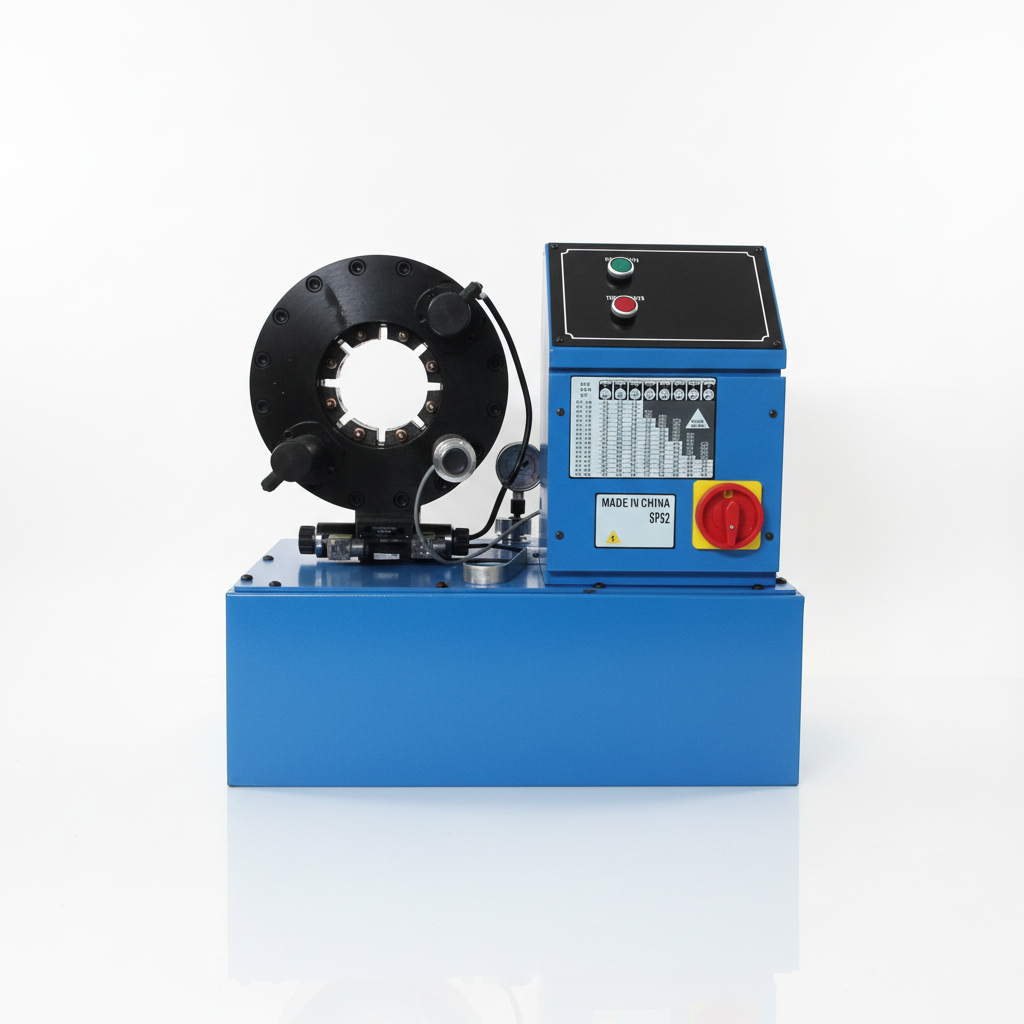

MANUAL HOSE CRIMPING MACHINE MS-SP52

Product Overview
This bench-top hydraulic hose crimping machine features a compact ergonomic structure designed for high-pressure hose crimping with exceptional accuracy up to 2-inch 4-layer steel braided hoses.
Crimping Capabilities
The manual hose crimper covers a crimping range of 14mm to 87mm, making it suitable for flexible pressure hoses, water or air hoses, automotive brake lines, air conditioner hoses, electric wires, and cables.
Operation Features
Simple two-button control panel operation with one button for die closing and another for die opening ensures easy and efficient crimping operations.
Key Advantages
  • Advanced double conical hydraulic cylinder design
  • High-speed operation for large production of hose assemblies
  • Micrometer with precision up to 0.01mm
  • Capable of pressing ferrules with different materials while providing surface protection
Technical Specifications
Model MS-SP52 Cable Pressing Machine
Crimping Range 14 - 87 (mm)
Crimping Force 640 (T)
Hose Size 1/4" - 2" (inch)
Max. Opening 25 (mm)
Die Sets 10
Die Set Type P52
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 380 (V)
Motor Power 4 (KW)
Length 630 (mm)
Width 450 (mm)
Height 600 (mm)
Weight 200 (KG)
Hydraulic Hose Crimper Tool DX68 Hose Crimping Machine Hose Fitting Press
SP52 Hose Pressing Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 14mm 35
14 14 - 16mm 60
16 16 - 20mm 60
20 20 - 22mm 60
22 22 - 26mm 60
26 26 - 30mm 60
30 30 - 38mm 70
38 38 - 46mm 70
46 46 - 54mm 80
54 54 - 64mm 80
64 64 - 69mm 80
69* 69 - 76mm 100
Important Notes
  • Customized crimping die sets are available
  • Special voltage options: 110V, 208V, 240V, 415V
  • * indicates non-standard die sets
Optional Accessories
  • Quick Die Change Tool
  • Die Set Rack / Machine Stand
  • UC/CNC Control
  • Foot Pedal Switch
  • Pressure Gauge
  • Normal Stand
Applications & Performance
The SP52 Cable Pressing Tool is a versatile and reliable equipment widely utilized for hydraulic hose repair and maintenance services in workshop settings. Specifically engineered to handle high-pressure hydraulic hoses, it is capable of swaging 4-layer to 6-layer steel wire braided hoses with diameters ranging from 1/4" to 2" (6.35mm to 50.8mm), making it suitable for a variety of industrial maintenance scenarios, including construction machinery, automotive AC systems, and industrial fluid conveyance equipment.
The standard die sets of the SP52 are crafted from high-hardness alloy steel, precision heat treatment and polishing processes. This ensures exceptional wear resistance, dimensional stability, and uniform pressure distribution during the crimping process. Each die set is designed for a specific crimping size, and we highly recommend using the corresponding die set for different hose diameters. This practice not only guarantees the most ideal crimping effect—tight, leak-proof, and durable connections—but also prevents damage to hoses or ferrules, extending the service life of the assembled hoses and reducing maintenance costs in the long run.
