Specifications
Brand Name :
MENSION
Model Number :
MS 51
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2 inch
Die Sets :
10
Color :
Blue
Max. Opening :
30mm
Crimping Force :
600T
Product Name :
Hose Crimping Machine
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3KW
Size :
670*430*820mm
Weight :
260Kg
Description
High Pressure MS 51 Hose Crimping Machine P20 Rubber Product Making Machinery
High Pressure MS 51 Hose Crimping Machine P20 Rubber Product Making Machinery
Product Overview

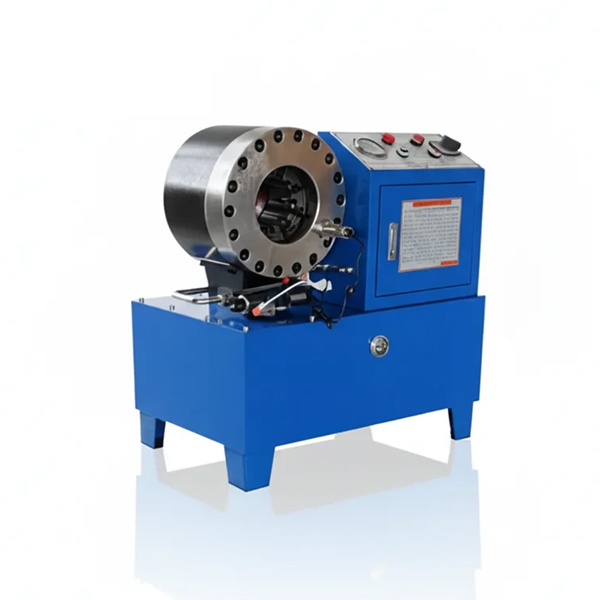

The MS-51 hose crimping machine, also known as type DX68 or DX69, offers dual-mode operation with both automatic and manual functions. This versatile 51 hose crimper comes standard with 10 die sets covering 15mm to 63mm, making it suitable for hydraulic hose production from 1/4 inch to 2 inch. All die sets are conveniently stored within the machine body to prevent loss. The simple design ensures easy operation and maintenance.
Key Features & Advantages
  • Pressure gauge for real-time system pressure monitoring
  • High-accuracy crimping dial for precise operation
  • Audible buzzer alert when reaching preset crimping diameter
  • Modern double-function foot pedal technology
  • Clear oil level ruler for easy fluid condition checking
  • Large fluid capacity and stable performance hydraulic pump
Spare Parts & Components

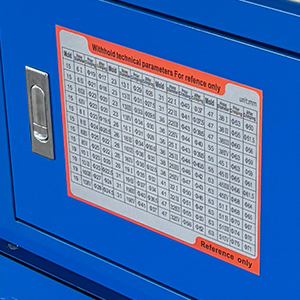

1) Crimping Reference Sheet
High Pressure MS 51 Hose Crimping Machine P20 Rubber Product Making Machinery

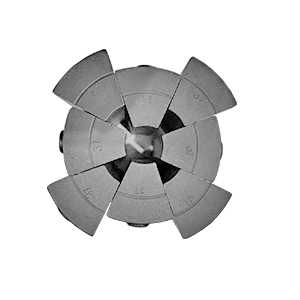

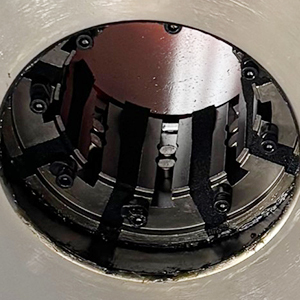

2) Conical Master Dies
High Pressure MS 51 Hose Crimping Machine P20 Rubber Product Making Machinery

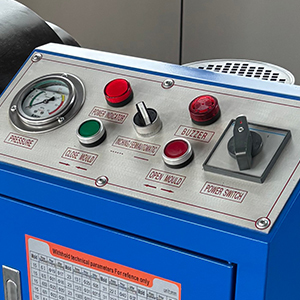

3) Multi-functional Panel
High Pressure MS 51 Hose Crimping Machine P20 Rubber Product Making Machinery

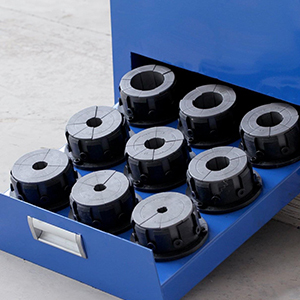

4) Dies Holder
High Pressure MS 51 Hose Crimping Machine P20 Rubber Product Making Machinery
Technical Specifications
Model MS 51 Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 600 (T)
Hose Size 1/4 - 2 (inch)
Max. Opening 30 (mm)
Die Sets 10
Die Set Type 51
System Pressure 31.5 (Mpa)
Accuracy 0.05 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3 (KW)
Length 670 (mm)
Width 430 (mm)
Height 820 (mm)
Weight 260 (KG)
High Pressure MS 51 Hose Crimping Machine P20 Rubber Product Making Machinery
Die Sets Specifications
Die No. Crimping (mm) Length (mm)
6* 6 - 8 mm 35
8* 8 - 10 mm 35
10* 10 - 12 mm 35
12* 12 - 15 mm 35
15 15 - 19 mm 60
19 19 - 23 mm 60
23 23 - 26 mm 60
26 26 - 31 mm 60
31 31 - 36 mm 70
36 36 - 41 mm 70
41 41 - 47 mm 70
47 47 - 55 mm 80
55 55 - 63 mm 80
63 63 - 69 mm 80
69* 69 - 76 mm 90
Important Notes
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Special voltage options available: 110V, 208V, 240V, 415V
Optional Accessories
• Quick Change Tool
• Quick Change Die Set Rack
• UC Control System
