Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure
Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure
Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure
Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure
Specifications
Brand Name :
MENSION
Model Number :
MS-P16
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 45mm
Hose Size :
1/4 - 1inch
Die Sets :
7
Color :
Blue
Max. Opening :
20mm
Crimping Force :
150T
System Pressure :
31.5Mpa
Power :
Hand Pump
Size :
400*320*300mm
Weight :
32Kg
Product Name :
P16 Hose Crimper
Description

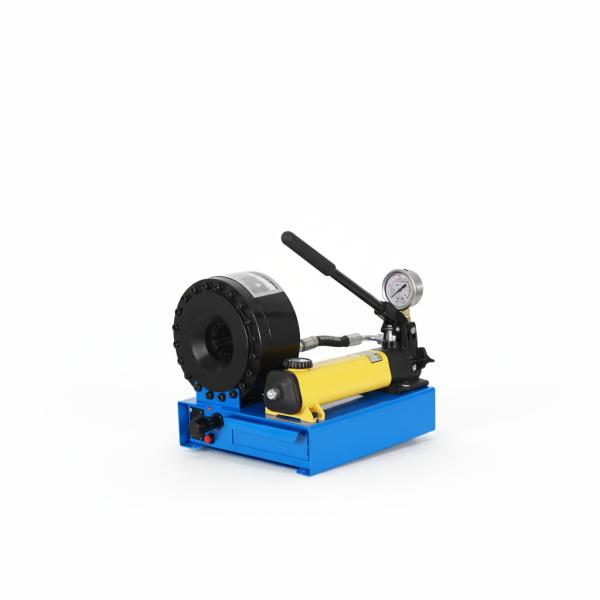

P16HP Manual Hose Crimping Machine
The MS-P16 is a manually operated hydraulic hose crimping machine designed for portability and reliability. With its lightweight construction, this crimper can be easily transported to any location, making it the ideal choice for hose assembly crimping in areas without electricity supply.

Key Advantages

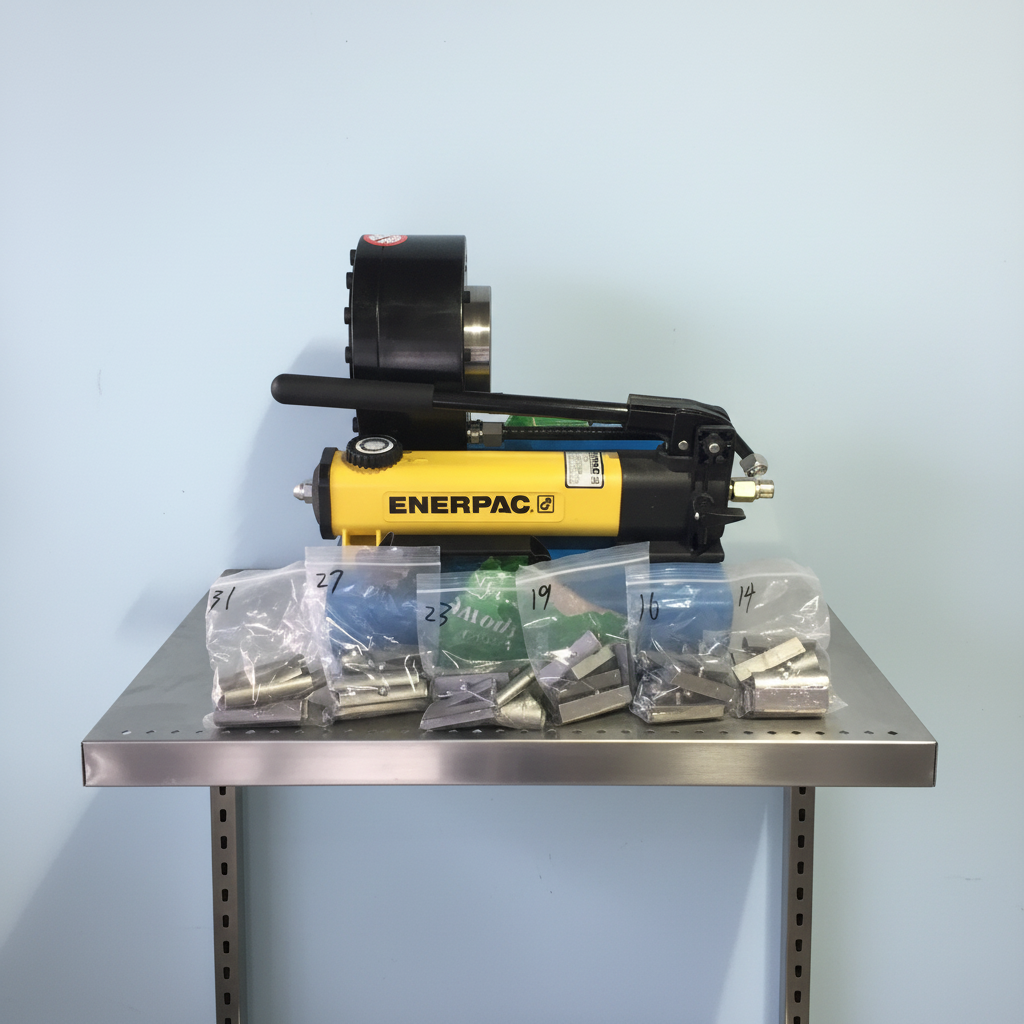

  • Famous "ENERPAC" hydraulic valve for high stability and reliability
  • Simple design that's easy for novice operators
  • Powerful crimping force capable of handling up to 4 steel wire hoses
  • High productivity with efficient operation
  • Low maintenance cost for long-term value
Technical Specifications
Model P16 Hose Crimper Machine
Crimping Range 14 - 47 mm
Crimping Force 150 Tons
Hose Size 1/4 - 1 inch
Max. Opening 20 mm
Die Sets 7
Die Set Type P16
System Pressure 31.5 MPa
Accuracy 0.01 mm
Control MS
Standard Voltage Manual Pump
Motor Power Manual Pump
Length 400 mm
Width 320 mm
Height 300 mm
Weight 32 KG
Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure
P16 Crimper Die Sets
Die No. Crimping Range Length
6* 6 ... 8mm 55
8* 8 ... 10mm 55
10* 10 ... 12mm 55
12* 12 ... 14mm 55
14 14 ... 16mm 55
16 16 ... 19mm 55
19 19 ... 23mm 55
23 23 ... 27mm 55
27 27 ... 31mm 55
31 31 ... 35mm 65
35 35 ... 41mm 65
Important Notes
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Maximum opening refers to the stroke between fully closed and fully opened die sets
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control System
  • Electric Crimper Conversion
Product Features
Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure
Crimping Samples
Portable P16 Hydraulic Hose Crimper with 150T Crimping Force and 31.5Mpa System Pressure
