Hydraulic hose crimping machine, SP32 desktop multi-purpose hose crimping machine
Hydraulic hose crimping machine, SP32 desktop multi-purpose hose crimping machine
Specifications
Brand Name :
MENSION
Model Number :
MS-SP32
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 78mm
Hose Size :
1/4 - 2.0inch
Die Sets :
10
Color :
Blue
Max. Opening :
31mm
Crimping Force :
500T
System Pressure :
31.5Mpa
Voltage :
380V/220V
Size :
630*450*600mm
Weight :
200Kg
Description
Automatic Hydraulic Hose Crimping Machine SP32 Crimper Water Hose Crimping Tool
Product Overview

The MS-P32 is a benchtop hose crimping machine, a basic model. This crimping machine is designed for crimping 1/4 inch to 2-1/2 inch high-pressure hydraulic hoses and flaring industrial pipes up to 3 inches in diameter. It can crimp conduits, air conditioning hoses, brake hoses, and stainless steel braided hoses. The crimping operation is convenient, requiring only two buttons to complete the process.


Key Advantages

  • Ultra-Wide Hose Size & Type Compatibility for Diverse Industrial Application Scenarios
  • A simple operating system enables intuitive operation and a superior user experience.
  • Superior motor performance delivers exceptional power.
  • Ultra-High Precision Crimping Diameter Control for Reliable Leak-Proof Hose Connections
  • Big crimping force and large opening capacity
  • Ultra-Wide Hose Size & Type Compatibility for Diverse Industrial Application Scenarios
  • Full CE & ISO Certification, Compliant with Global Industrial Quality Standards
Technical Specifications
Model SP32 Hydraulic Hose Crimping Machine
Crimping Range 14 - 78 (mm)
Crimping Force 500(T)
Hose Size 1/4 - 2.0 (inch)
Max. Opening 31 (mm)
Die Sets 10
Die Set Type SP32
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 380 (V)/220V
Motor Power 3KW/4KW
Length 630 (mm)
Width 450 (mm)
Height 600 (mm)
Weight 200 (KG)
Hydraulic hose crimping machine, SP32 desktop multi-purpose hose crimping machine
Operation Guide

Introduction to Hydraulic Hose Crimping Machine & Practical Operation Experience Sharing

P32 Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 78mm 110

* for non standard die sets

Customized die sets are available

Special voltage 110V, 208V, 240V, 415V are available


Top-grade materials

Hydraulic hose crimping machine, SP32 desktop multi-purpose hose crimping machine

Equipped with a foot switch for hands-free operation

Hydraulic hose crimping machine, SP32 desktop multi-purpose hose crimping machine


Top-of-the-line motor

Hydraulic hose crimping machine, SP32 desktop multi-purpose hose crimping machine

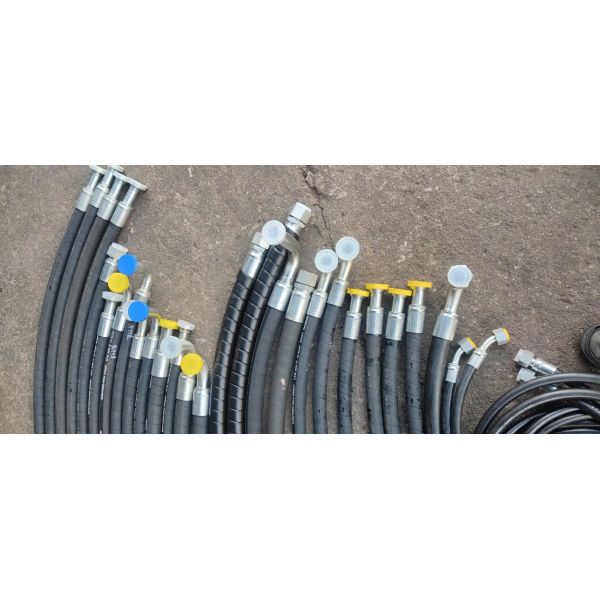

Application Showcase

The P32NC is a high-configured hose crimping machine capable of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive systems, and air suspension or springs.

Hydraulic hose crimping machine, SP32 desktop multi-purpose hose crimping machine
