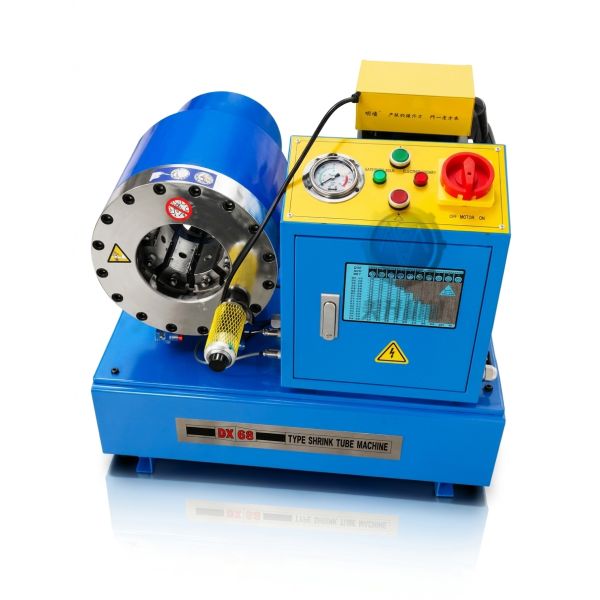

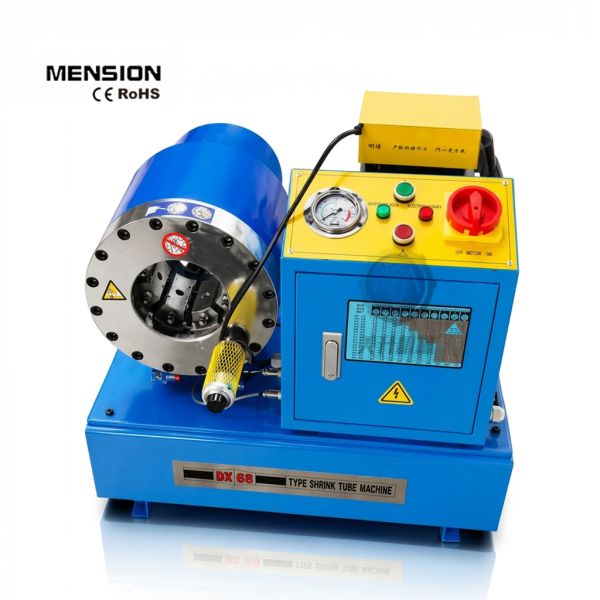

DX68 Automatic Hydraulic Hose Crimping Machine | 1/4 to 2 Heavy Duty Pipe Pressing Tool with 10 Die Sets
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4 to 2 Heavy Duty Pipe Pressing Tool with 10 Die Sets
Specifications
Brand Name :
MENSION
Model Number :
DX68
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Max. Opening :
30mm
Application :
Workshops · Constr. Mach · Hyd. Repair · Mining Equip
Crimping Force :
500T
System Pressure :
31.5Mpa
Color :
Blue
Power :
3KW
Size :
670*430*820mm
Weight :
260Kg
Wty :
3years
Description
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool

The DX-68 hydraulic crimping machine is engineered for producing one to six layer stainless steel wire braided rubber hose from 1/4 inch to 2 inch. Featuring high-accuracy electric ruler control for master die movement, this machine ensures hose assemblies achieve extended service life and superior pressure resistance.

Main Features
  • Forged pressing cylinder with high-level hardness
  • Multifunctional hand panel with multiple operating modes
  • Pressure display device for clear system monitoring
  • Standard pedal switch for hands-free operation
  • Integrated working lamp for enhanced visibility and safety
Technical Specifications
Crimping Range 14 - 87 mm
Crimping Force 500 Tons
Hose Size 1/4 - 2 inch
Maximum Opening 30 mm
Die Sets 10
Die Set Type 68
System Pressure 31.5 MPa
Accuracy 0.05 mm
Control System MS
Standard Voltage 220V / 380V
Motor Power 3 KW
Dimensions (L×W×H) 670 × 430 × 820 mm
Weight 260 KG
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4
68 Hose Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8 mm 35 mm
8* 8 - 10 mm 35 mm
10* 10 - 12 mm 35 mm
12* 12 - 15 mm 35 mm
15 15 - 19 mm 60 mm
19 19 - 23 mm 60 mm
23 23 - 26 mm 60 mm
26 26 - 31 mm 60 mm
31 31 - 36 mm 70 mm
36 36 - 41 mm 70 mm
41 41 - 47 mm 70 mm
47 47 - 55 mm 80 mm
55 55 - 63 mm 80 mm
63 63 - 69 mm 80 mm
69* 69 - 76 mm 100 mm
Important Notes

* Denotes non-standard die sets

Customized die sets are available upon request

Special voltage configurations (110V, 208V, 240V, 415V) are available

Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack

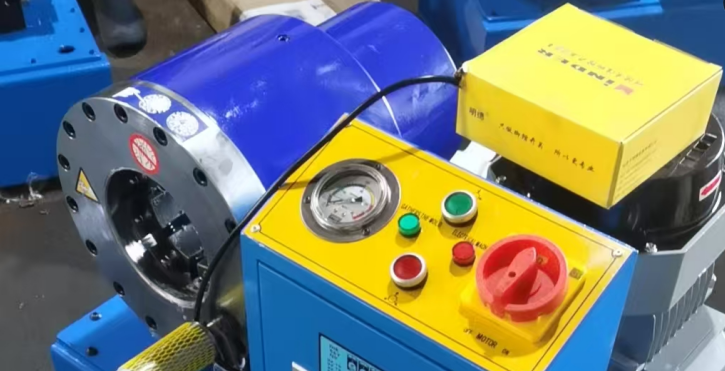

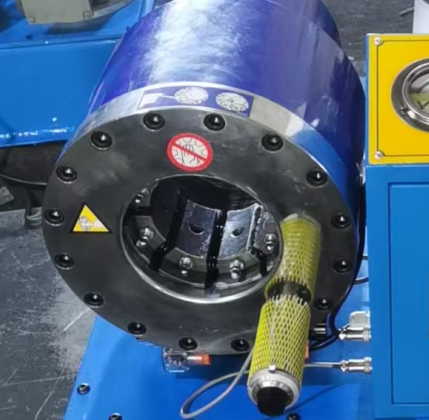

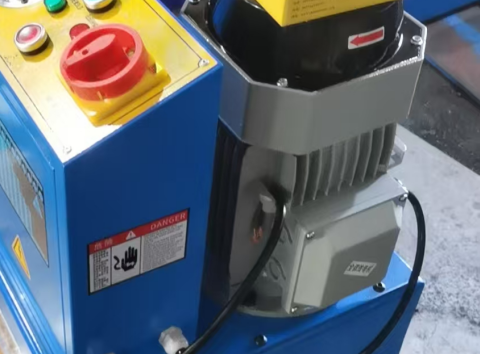

Product Details
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4

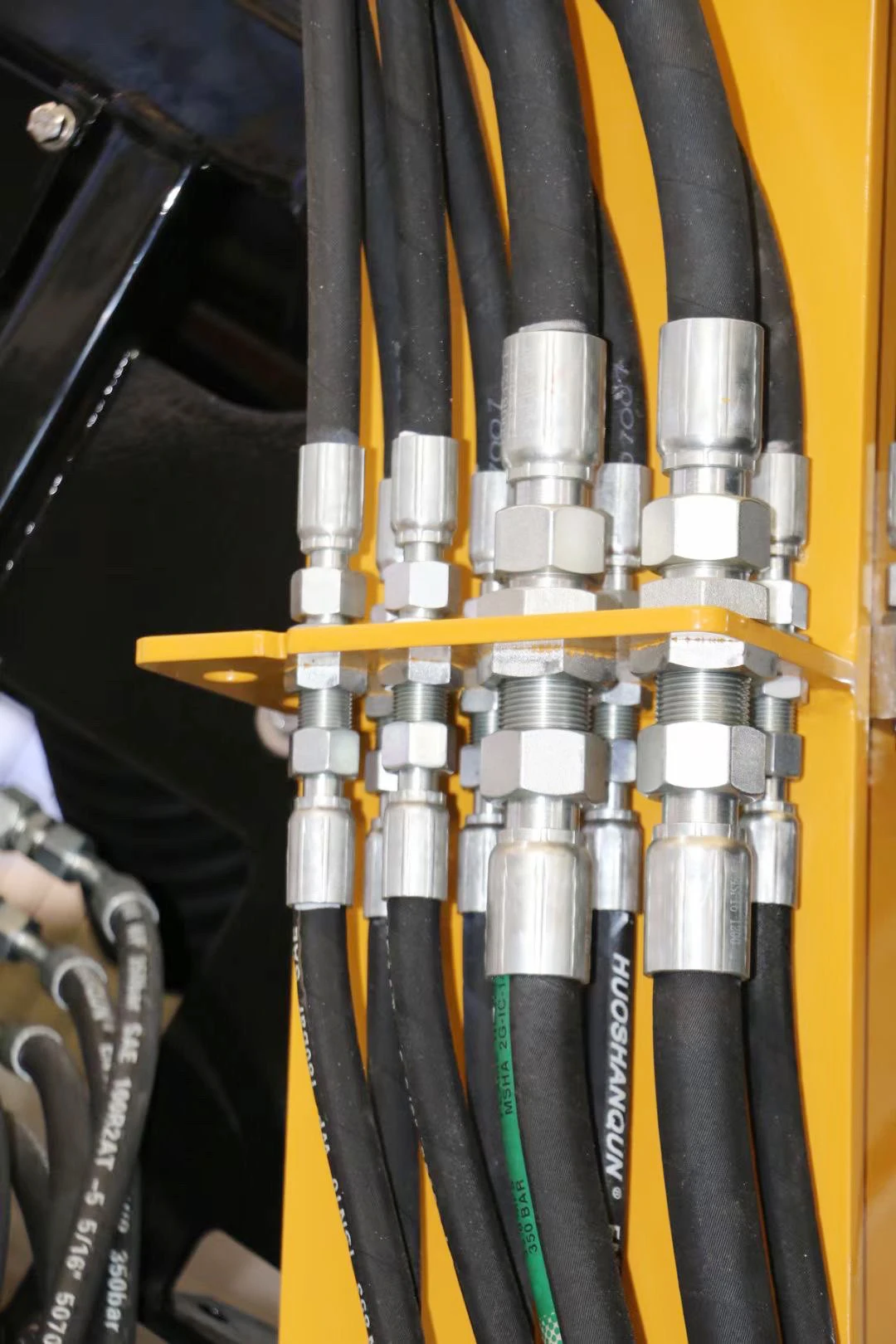

Application Field
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4
DX68 Automatic Hydraulic Hose Crimping Machine | 1/4
