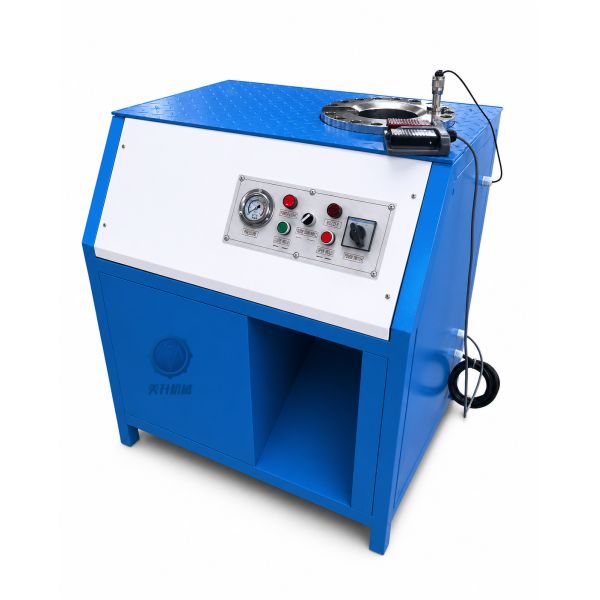

MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
Specifications
Brand Name :
MENSION
Model Number :
MS-51SM
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
5- 51mm
Accuracy :
0.01mm
Die Sets :
10
Crimping Force :
600T
Work sffciency :
800pcs/H
Name :
51SM Nut crimping machine
Application :
Continuous operation in the workshop
System Pressure :
26Mpa/31.5Mpa
Pump output :
2.5L/5L/10L
Voltage :
220v-415v(optional)
Power :
4KW
Size :
890*700*950mm
Weight :
270Kg
Wty :
3 Year
Description
MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
Product Overview

MS-51SM nut crimping machine is a highly efficient, automated hydraulic crimping solution designed specifically for nut joint assembly. With high digital precision, it delivers consistent, accurate, and repeatable crimping results for industrial production lines. This machine boasts crimping forces up to 6000 kN, an automatic ejection system, and a rapid full cycle, achieving a maximum crimping speed of over 800 pieces per hour, helping to improve productivity and reduce manual labor. Built for demanding industrial applications, the MS-51SM is the preferred choice for nut crimping manufacturers seeking precision, speed, and long service life.

Main Features
  • Forged crimping cylinder, high hardness
  • Convenient hand hold operate panel
  • High accurate crimping control dial
  • 6000 kN powerful crimping force for heavy-duty industrial applications
  • Suitable for one-piece fitting assembly
  • Designed for Mass Production
  • Europe CE Approved
Technical Specifications
Model MS-51SM Hose Crimper Machine
Crimping Range 5 - 51 (mm)
Crimping Force 600 (T)
Work Efficiency 800pcs/H
Max. Opening 30 (mm)
Die Sets 10
Die Set Type 51
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 220v-415v(optional)
Motor Power 4 (KW)
Length 890 (mm)
Width 700 (mm)
Height 950 (mm)
Weight 270 (KG)
MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
51 SM Series Hose Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 3
8* 8 - 10mm 3
10* 10 - 12mm 3
12* 12 - 14mm 3
14 14 - 16mm 4
16 16 - 19mm 4
19 19 - 22mm 4.5
22 22 - 26mm 4.5
26 26 - 30mm 5
30 30 - 34mm 5
34 34 - 39mm 5
39 39 - 45mm 5
45 45 - 51mm 5

* for non standard die sets
Customized die sets are available
AC voltage 220V, 380V, 110V, 208V, 240V, 415V are available

Product Details
Forged from top-grade materials
MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
Operate Hand Pedal
MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
Crimping Dial

51SM pipe pressing tool is with high accurate crimping dial vernier, it can be fast installed and taken off with magnetic, convenient for maintenance.

MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
OEM Service

• Different body color, die sets box or machine size can be customized.
• Die sets of different size, shape, length is available.

MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
Application
MS-51SM Automatic Nut Crimping Machine with 600T Crimping Force 800pcs/H Work Efficiency and 0.01mm Accuracy
