2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.
2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.
Specifications
Brand Name :
MENSIONFLEX
Model Number :
MS-51
Certification :
CE ROHS ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
500 sets per month
Delivery Time :
2 - 5 working days
Packaging Details :
Each Ply-wood case for one set
Model :
MS-51
Color :
Blue or White
Crimping Range :
15mm - 76mm
Die Sets :
10
Max Opening :
33mm
Accuracy :
0.01mm
Crimping Force :
500T
System Pressure :
31.5Mpa
Operate Mode :
Automatic/ Manual
Voltage :
220v/380v
Motor Power :
3kw/4kw
Warranty :
3 Years
Description

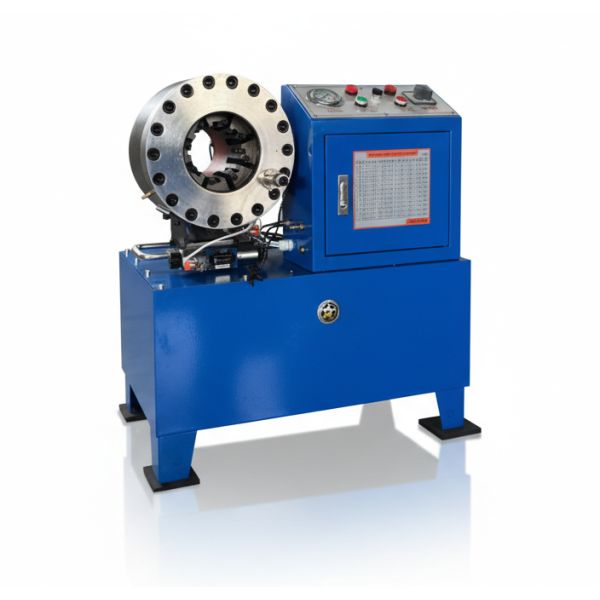

MS-51 High Pressure Rubber Hose Crimping Machine

The MS-51 hose crimper is professionally engineered for crimping rubber hoses from 1/4 inch to 2 inch (6–51 mm). Supplied with 10 standard die sets covering 15 mm to 63 mm, it delivers consistent, precision crimping for every hose, fitting and ferrule combination. The finished hose assemblies feature a smooth surface, zero oil leakage, and greatly extended service life for hydraulic systems.

Key Advantages
  • Dual operating modes for enhanced operator convenience and flexibility
  • High-precision crimping dial for accurate size control
  • High-hardness die sets for extended service life
  • Multiple hydraulic pump options for various working environments
  • Smooth crimping surface, prolongs hydraulic hose service life
  • Powerful crimping force ensures stable, high-pressure sealing performance
  • Compact & robust structure with small footprint, ideal for workshops and on-site use
Technical Specifications
Model MS-51 Rubber Hose Crimping Machine
Crimping Range 15 - 76mm
Hose Size 1/4" - 2"
Max Opening +33mm
Die Sets 10 sets
Die Type 51
Accuracy 0.01mm
System Pressure 31.5Mpa
Voltage 110V/220V/380V
Motor Power 3KW/4KW
Dimension 680×560×710mm
Weight 245KGS
2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.
Additional Features
  • Custom die sets available in various sizes, lengths, and shapes
  • Custom voltage and frequency options
  • Multiple color choices available
  • Maximum opening represents the working stroke for the cylinder
Die Sets for MS-51 Hose Crimper
Code Crimping Range (mm) Length (mm)
15 15 - 19 60
19 19 - 23 60
23 23 - 26 60
26 26 - 31 60
31 31 - 36 70
36 36 - 41 70
41 41 - 47 70
47 47 - 55 80
55 55 - 63 80
63 63 - 76 80

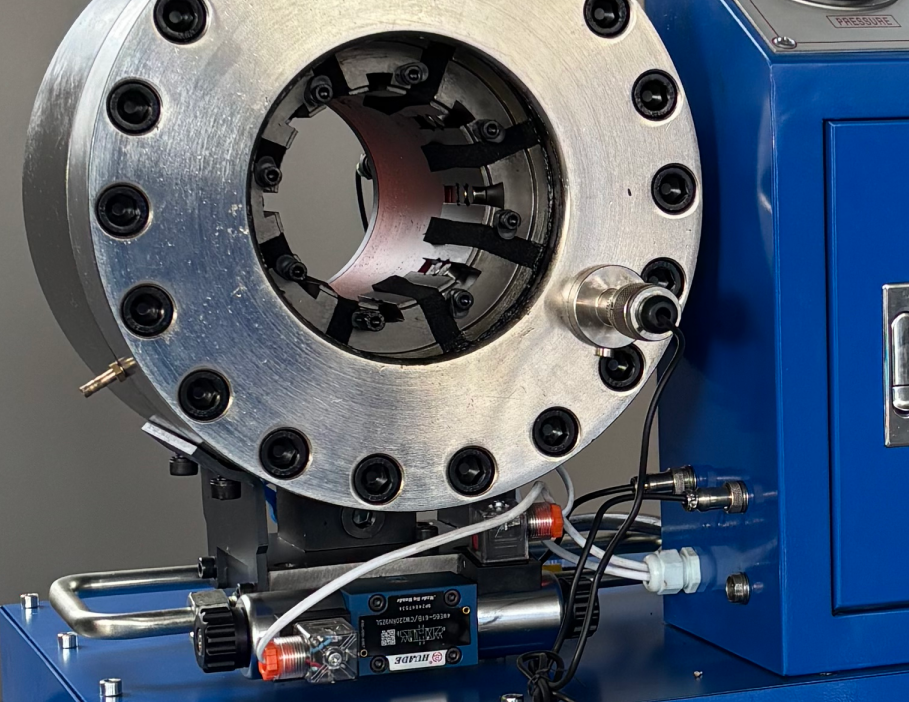

Top grade materials
2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.

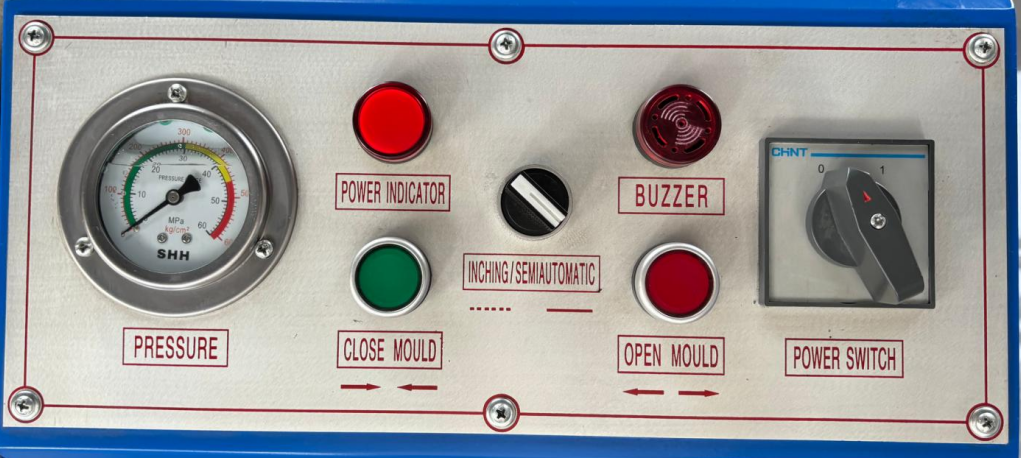

Operation panel
2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.

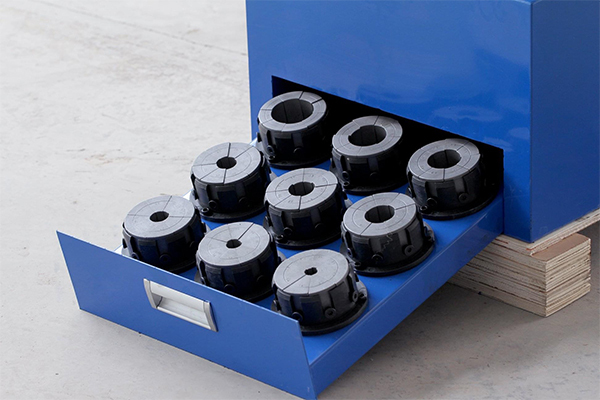

High Hardness 15-63HRC Die Sets
2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.

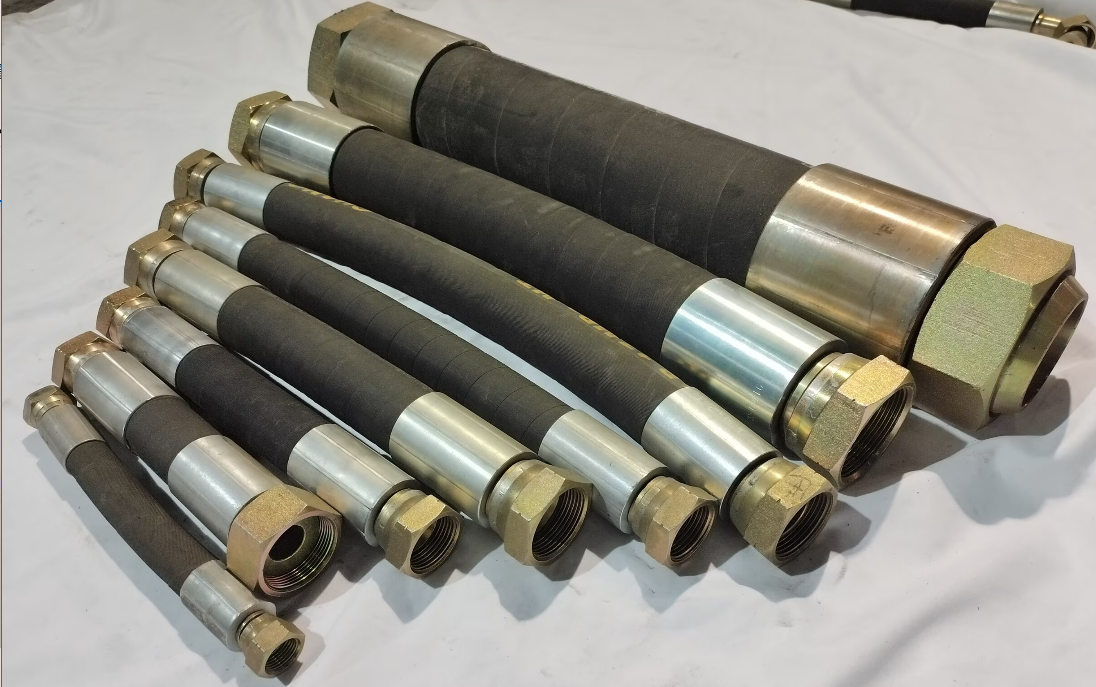

crimping application effect

2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.
2-inch hydraulic hose crimping machine M51, Low-cost maintenance，customization supported.
