Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
Specifications
Brand Name :
MENSION
Model Number :
MS-P32CS
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 76mm
Hose Size :
1/4 - 2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
280T
Product :
P32CS Hose Crimper
Application :
Service
System Pressure :
31.5Mpa
Power :
2.2KW
Size :
630*540*420mm
Weight :
150Kg
Voltage :
12v/24v
Warranty :
3 Years
Description

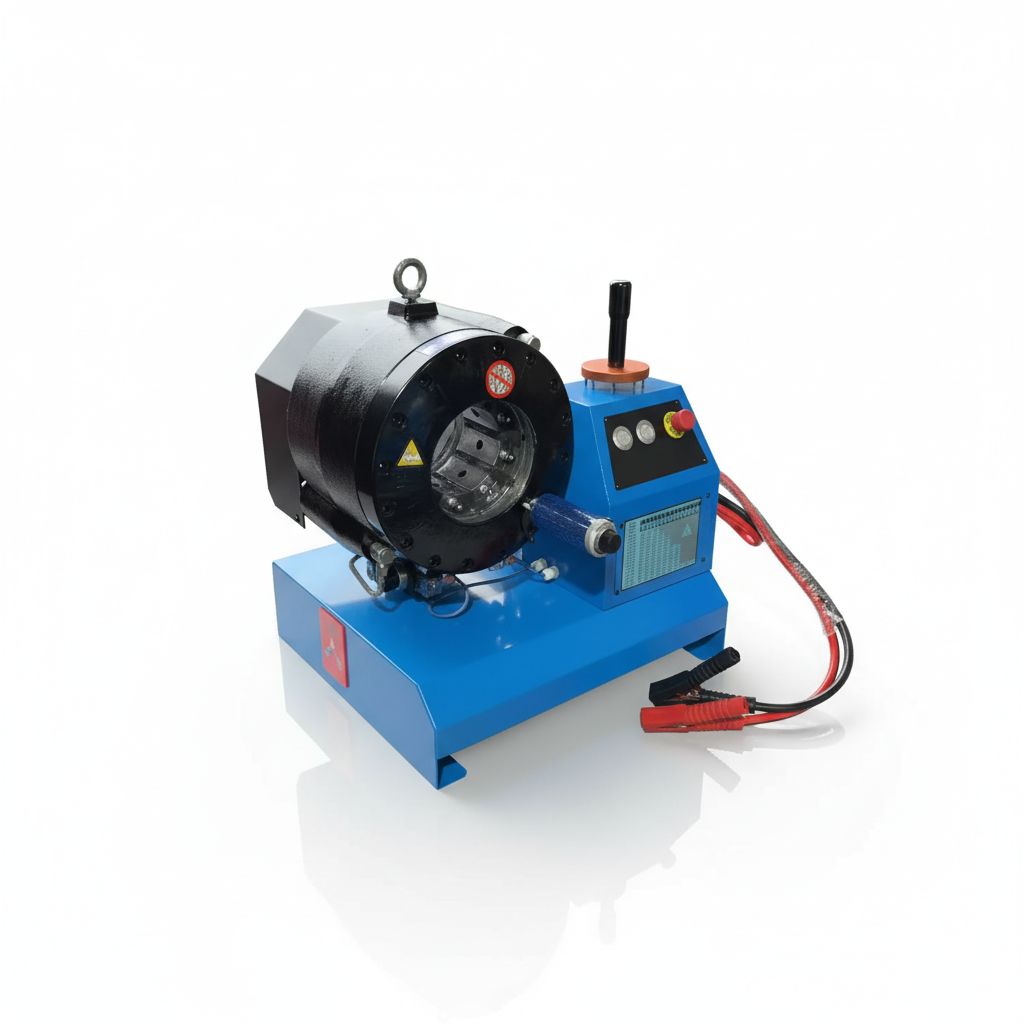

MS-P32CS Portable Hydraulic Hose Crimping Machine
12V/24V Hydraulic Hose Crimper P32CS featuring compact design and powerful crimping performance for on-site applications.
Product Overview
The MS-P32CS portable hydraulic hose crimping machine features a simple design with compact structure, lightweight construction, and easy operation. Ideal for on-site crimping applications in mobile vans or vehicles, it includes a special slide device for enhanced mobility.
Remarkably, P32CS is still a high-pressure hose crimping machine that can offer powerful crimping force to crimp up to 2 inches 2-layer hoses. Optional dies rack and quick change tool are available.
Key Advantages
  • Powered by 12V and 24V battery, with crimping force up to 2800 kN
  • Stable and reliable crimping performance for high-pressure hydraulic applications
  • Ideal for repair shops and industrial maintenance teams
  • Capable of crimping hydraulic hoses up to 2 inches (2 layers)
  • Supports both 12V and 24V power supply
  • Compact and ergonomic design
  • Perfect for on-site mobile service
  • Fast crimping and retracting operation
Technical Specifications
Model MS-P32CS Pipe Crimping Machine
Crimping Range 10 - 76 (mm)
Crimping Force 280 (T)
Hose Size 1/4 - 2.5 (inch)
Max. Opening 33 (mm)
Die Sets 13
Die Set Type MS
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 24 (V)
Motor Power 2.2 (KW)
Length 630 (mm)
Width 540 (mm)
Height 420 (mm)
Weight 150 (KG)
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
P32 Hydraulic Crimper Die Sets
Die No. Crimping Range Length
6* 6 ... 8mm 55
8* 8 ... 10mm 55
10* 10 ... 12mm 55
12* 12 ... 14mm 55
14 14 ... 16mm 55
16 16 ... 19mm 55
19 19 ... 22mm 55
22 22 ... 26mm 70
26 26 ... 30mm 70
30 30 ... 34mm 70
34 34 ... 39mm 75
39 39 ... 45mm 75
45 45 ... 51mm 90
51 51 ... 57mm 90
57 57 ... 63mm 100
63 63 ... 69mm 110
69 69 ... 76mm 110
* Non-standard die sets.

Standard dies included are from #14 to #69.

Customized die sets with different shapes and sizes are available. 12V voltage option is available.
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • Car Installing Unit
Premium Features
Forged Cylinder - One-piece structure prevents oil leakage problems, reduces oil transfer time, and increases productivity.
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
High-Precision Micrometer - P32CS features high-accuracy dial with 0.01mm precision.
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
Die Set Reference Sheet - Comprehensive guide for selecting proper die sets for different crimping sizes.
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS

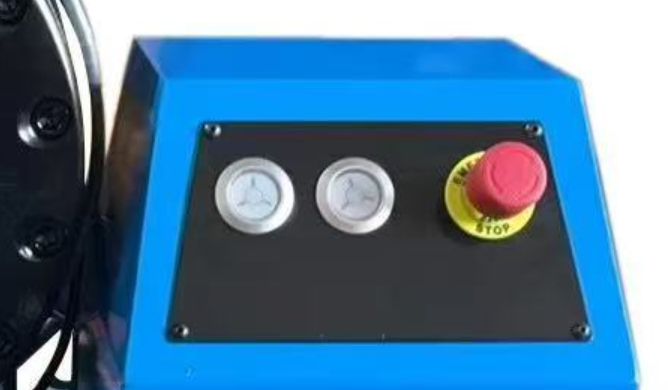

Quick and convenient operation panel
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
Premium Raw Materials - Constructed with 45 Steel, Chrome40, and Cr12Mov Steel for crimping cylinder and die sets.
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
High-Performance Hydraulic Oil Pump - Large hydraulic pump with high flow and power, featuring famous Italian brand components.
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
Germany REXROTH Hydraulic Valve - Premium hydraulic valve system from Germany REXROTH ensures reliability with low maintenance costs.
Vehicle-mounted 24V Portable Hydraulic Hose Crimping Machine 12V High Pressure Hydraulic Hose Crimping Machine P32CS
Versatile Applications
The P32CS crimping machine is designed for use in mobile vans with 12V/24V power supply. Suitable for high-pressure oil rubber hose assembly crimping, low-pressure water or air hose pressing, steel tube swaging, wire rope pressing, lock device manufacturing, and more.
