MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets
Specifications
Brand Name :
MENSION
Model Number :
MS-51KH
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Product Name :
51KH Manual Hose Crimping Machine
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Color :
Blue
Max. Opening :
30mm
Crimping Force :
500T
System Pressure :
31.5Mpa
Power :
3KW
Size :
670*430*820mm
Weight :
260Kg
HS Code :
847780
Description

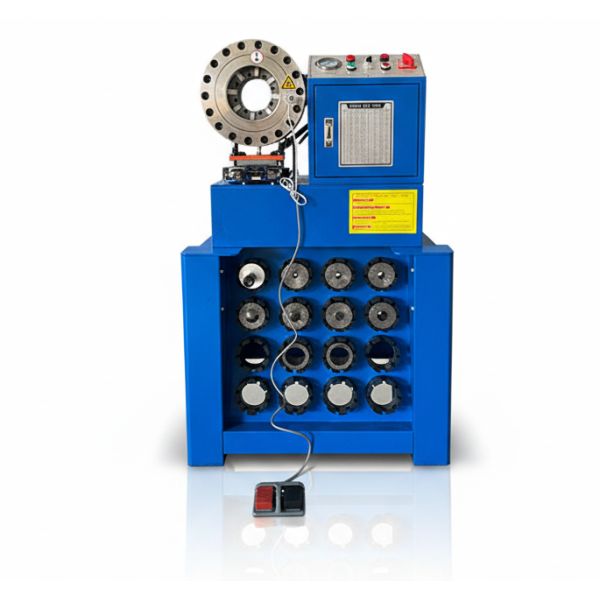

MS-51KH Hydraulic Hose Crimping Machine
Professional Hydraulic Hose Crimping Solution
The MS-51KH Hydraulic Hose Crimping Machine features button controls and automatic crimping capabilities.
With its versatile functionality and competitive pricing, it has become one of our most popular industrial crimping machines.
Key Features
  • Simple structure for easy maintenance and operation
  • Quick die change system to improve operational efficiency
  • Aluminium shell copper wire motor for superior heat dissipation
  • Dual control modes: manual button and foot pedal for flexible operation
  • Stable crimping precision ensuring reliable fitting quality
  • Includes 10 types of molds for hoses from 1/4 inch to 2 inches
Technical Specifications
Model MS-51KH Manual Hose Crimper Machine
Crimping Range 14 - 87 mm
Crimping Force 500 T
Hose Size 1/4 - 2 inch
Max. Opening 30 mm
Die Sets 10
Die Set Type 51
System Pressure 31.5 MPa
Accuracy 0.05 mm
Control MS
Standard Voltage 220 V / 380 V
Motor Power 3 KW
Length 670 mm
Width 430 mm
Height 820 mm
Weight 260 KG
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets
51 Crimping Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 15mm 35
15 15 - 19mm 60
19 19 - 23mm 60
23 23 - 26mm 60
26 26 - 31mm 60
31 31 - 36mm 70
36 36 - 41mm 70
41 41 - 47mm 70
47 47 - 55mm 80
55 55 - 63mm 80
63 63 - 69mm 80
69* 69 - 76mm 100
* Non-standard die sets
Customized die sets available
Special voltages available: 110V, 208V, 240V, 415V
Premium Construction & Components
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets

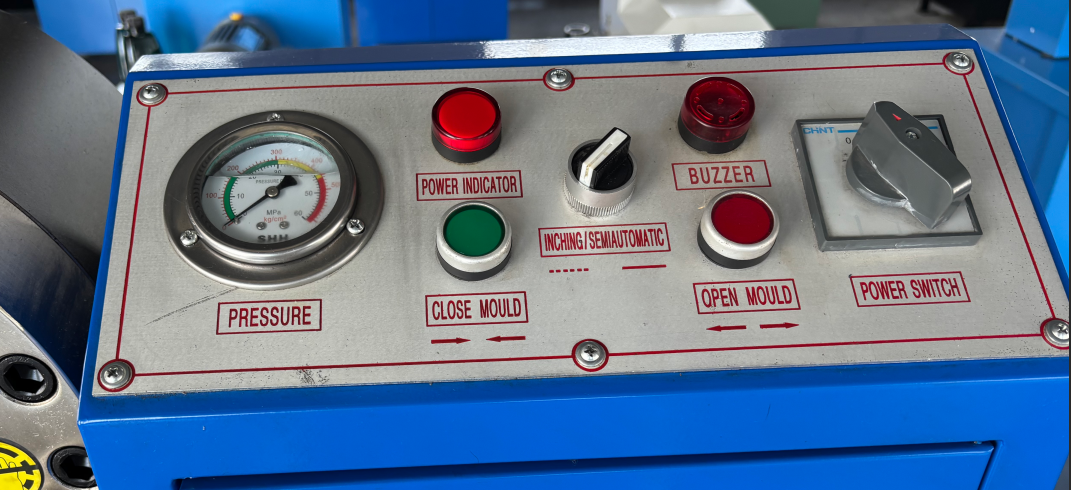

Control Console
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets

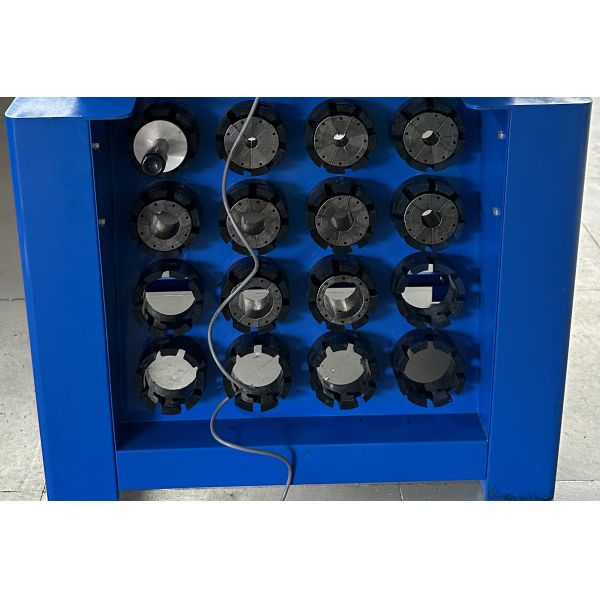

Quick Mold Rack System
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets
Standard Die Sets
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets

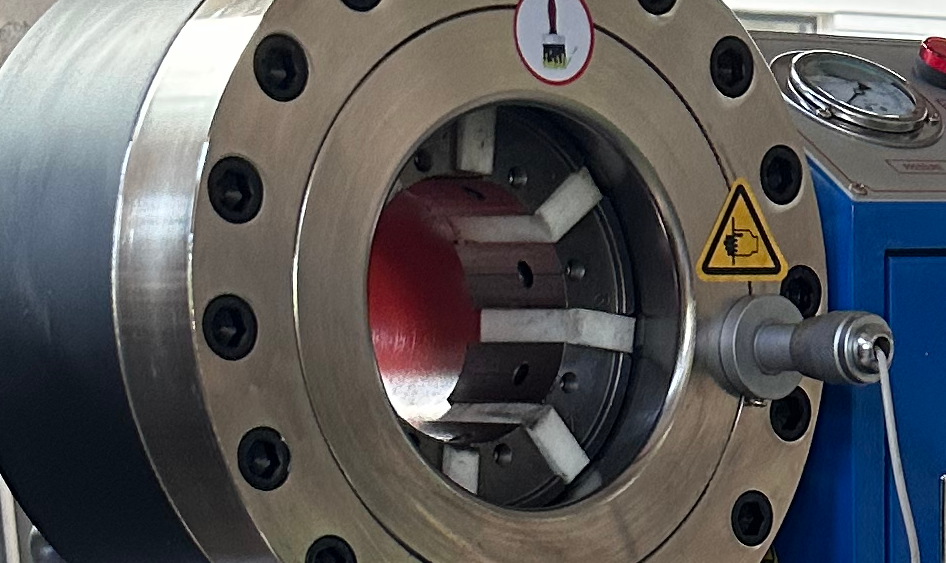

Crimping Performance Demonstration
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets

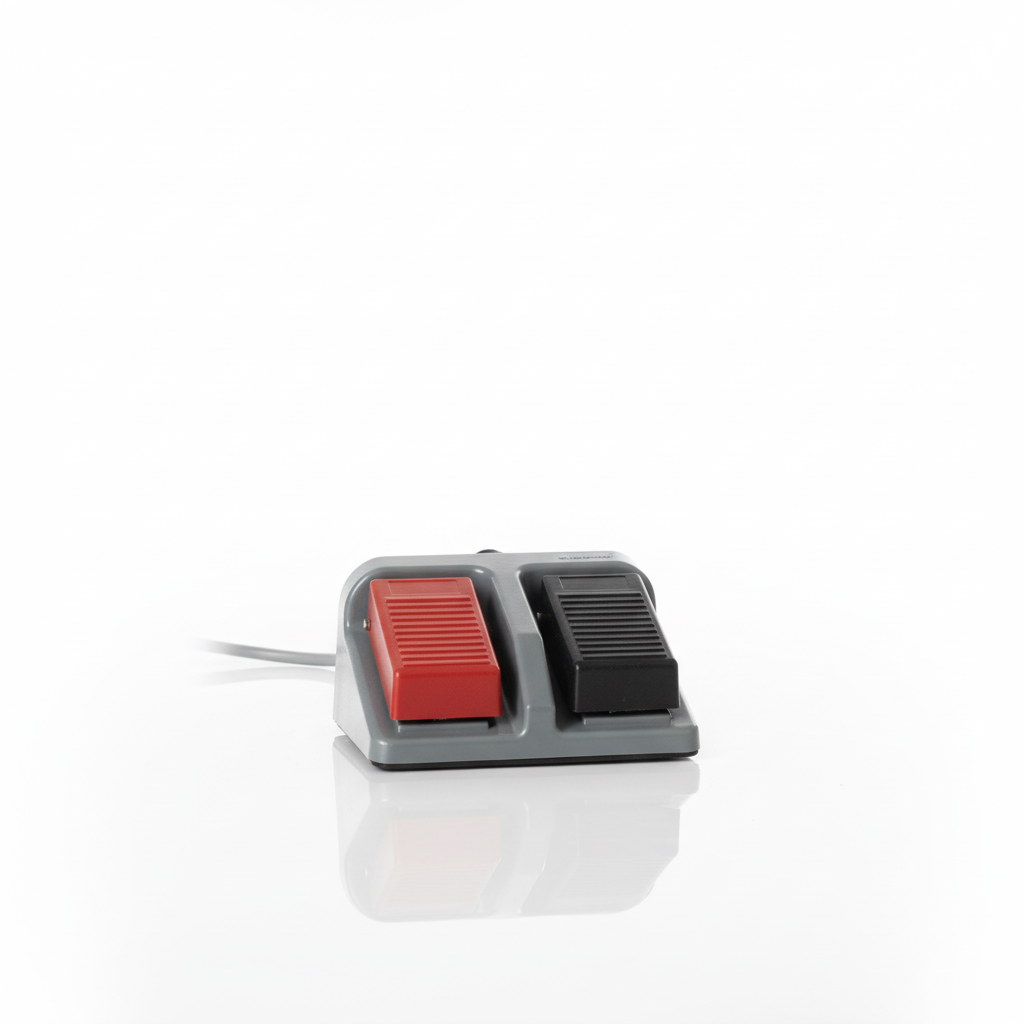

Safe and Efficient Foot Switch
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets

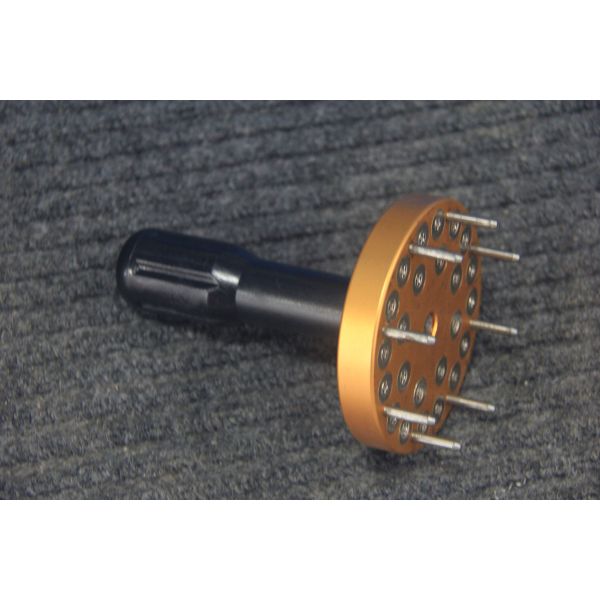

Quick Change Tool System
MS-51KH Hydraulic Hose Crimping Machine with 500T Crimping Force 14-87mm Range and 10 Die Sets
