Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38
Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38
Specifications
Brand Name :
MENSION
Model Number :
P20 E38
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 78mm
Hose Size :
1/4 - 2.0inch
Die Sets :
10
Color :
Blue
Max. Opening :
31mm
Crimping Force :
640T
Product Name :
P20 E38 Hose Crimper Machine
Application :
Workshop
Warranty :
3 years
Power :
4KW 50Hz
Size :
650*550*1360mm
Weight :
310Kg
Description

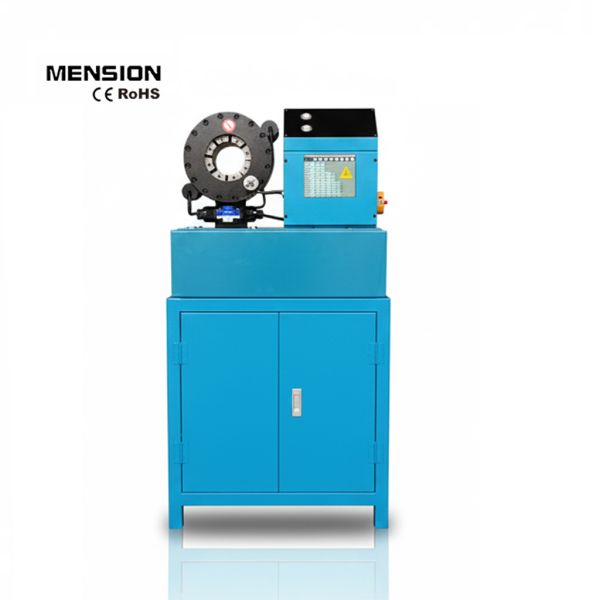

P20 E38 Hose Pipe Crimping Machine
Product Overview

The P20 hose crimper processes hoses ranging from 1/4 inch to 2 inches in diameter, delivering outstanding versatility for the automotive and hydraulic industries. This machine guarantees precise, professional crimping of hose fittings to create secure, leak‑proof and long‑lasting connections. It comes with interchangeable dies for multiple hose dimensions, fully adjustable pressure and depth controls, and a reliable hydraulic drive system for consistent, high‑performance crimping.

Main Features
  • Crimping Range: Handles hoses from 1/4 inch to 2 inches diameter for versatile applications
  • Interchangeable Dies: Multiple die sets accommodate different hose sizes and fitting types
  • Adjustable Settings: Precise control over crimping pressure and depth for consistent results
  • Hydraulic Power: Provides substantial force for effective and reliable crimping operations
  • Wide Application Compatibility:Covers almost all commonly used hydraulic and automotive hoses, reducing the need for multiple machines.
  • Superior Crimping Precision:Ensures tight, reliable connections with minimal risk of leaks, cracks or premature failure.
  • High Operational Efficiency:Hydraulic power and quick die changes speed up production and cut down setup time.
  • Stable & Durable Performance:Robust construction and adjustable settings maintain consistent quality even under heavy daily use
Technical Specifications
Model P20 E38 Hose Crimper Pressing Machine
Crimping Range 14 - 78 mm
Crimping Force 640 T
Hose Size 1/4 - 2.0 inch
Max. Opening 31 mm
Die Sets 10
Die Set Type MS
System Pressure 31.5 Mpa
Accuracy 0.01 mm
Control MS
Standard Voltage 220 V
Motor Power 3 KW
Length 630 mm
Width 450 mm
Height 1360 mm
Weight 310 KG
Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38

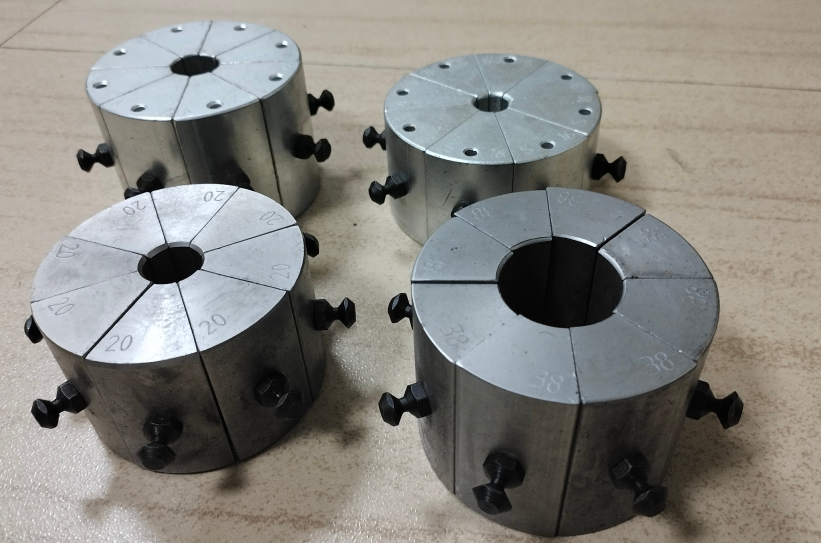

P20 E38 Hose Crimper Die Sets
Die No. Crimping Range Length
14 14 ... 16mm 60mm
16 16 ... 19mm 60mm
20 20 ... 22mm 60mm
22 22 ... 26mm 60mm
26 26 ... 30mm 60mm
30 30 ... 34mm 70mm
34 34 ... 39mm 70mm
39 39 ... 45mm 70mm
45 45 ... 51mm 70mm
51 51 ... 57mm 80mm
54 54 ... 64mm 80mm
64 64 ... 78mm 80mm
Note:
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
Optional Features
  • UC control system

Position limit device


Top grade materials

Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38

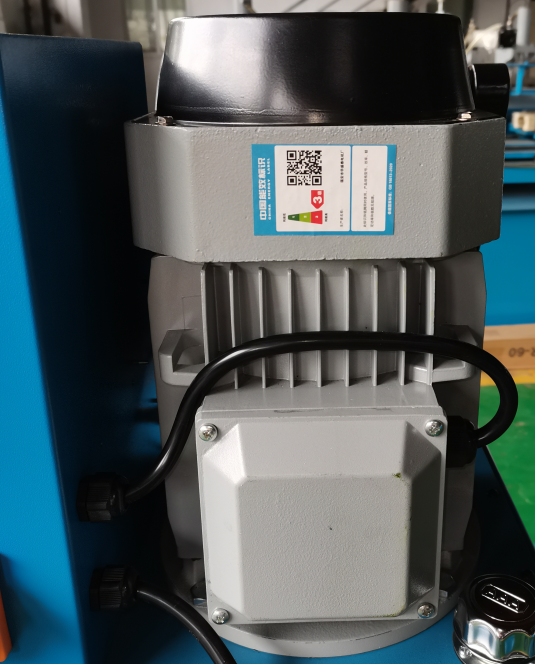

Top Grade Motor

Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38

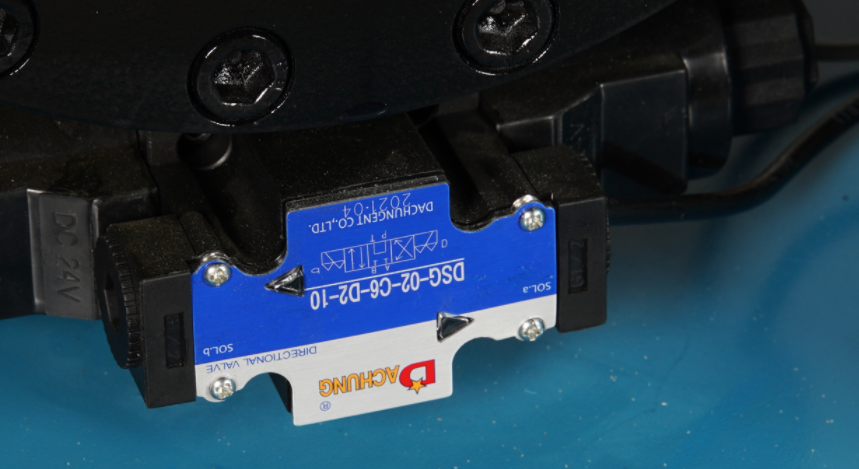

Reliable solenoid valve

Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38


Premium mold

Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38

Crimping Applications

The P20 hydraulic hose crimping machine is designed for various industrial applications including hydraulic systems, automotive components, and manufacturing processes requiring secure hose connections.

Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38
Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38
