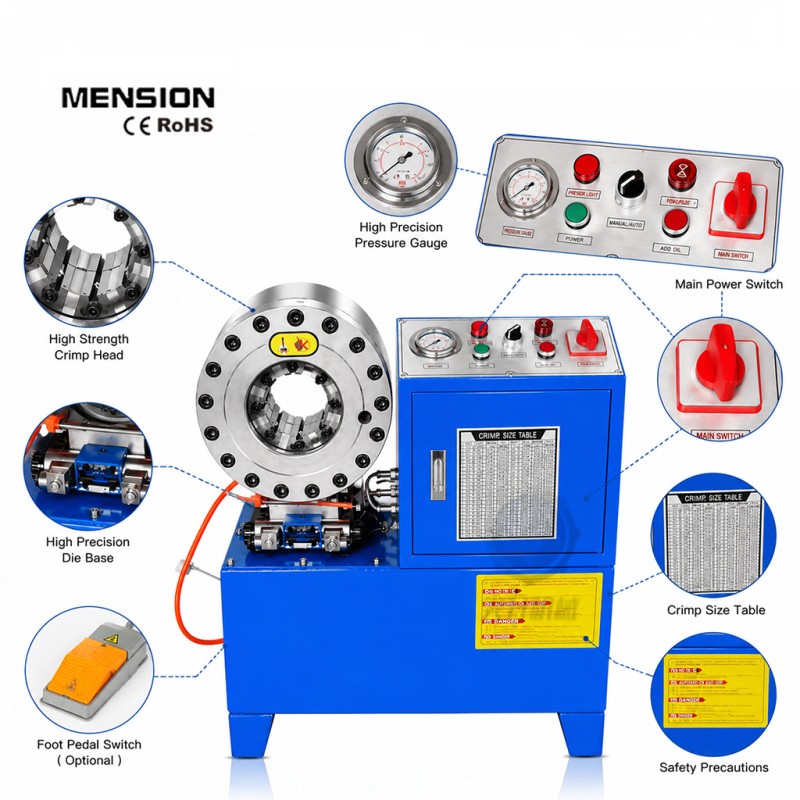

MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
Specifications
Hose Size :
1/4 - 2inch
Model Number :
MS-51
Max. Opening :
31mm
Power :
4KW/3KW
MOQ :
1 Set
Delivery Time :
2 - 7 Working Days
Product Name :
MS-51 Hose Crimping Machine
Hydraulic Oil :
T46
Payment Terms :
L/C,D/A,D/P,T/T,,
Color :
Blue
Certificate :
CE RoHS
Price :
Contact Us
Wty :
3years
Application :
Workshops · Constr. Mach · Hyd. Repair · Mining Equip.
Weight :
260Kg
Supply Ability :
1000 Sets Per Month
Crimping Range :
15 - 76mm
Brand Name :
MENSION
Die Sets :
10
Certification :
CE RoHS
Size :
670*430*820mm
Packaging Details :
One Plywood For One Set
Crimping Force :
500T
Place of Origin :
CN
Description
M51 DX68Cable Crimping Machine Hydraulic Hose Crimper Machine Press Hose
High Accurate MS-51 DX68 Cable Crimping Machine E38 With Big Hydraulic Power Press Hose
HOSE CRIMPING PRESS MACHINE MS-51 DX68

DESCRIPTION

MS-51 Heavy-Duty Hydraulic Hose Crimper (1/4" to 2")The MENSION MS-51 hydraulic hose crimper is a top-tier solution engineered for high-intensity industrial maintenance and production. Featuring a robust 500-ton crimping force, it precisely handles multi-layer steel wire braided hoses up to 2 inches, ensuring secure, leak-free connections. As a CE-certified professional machine, the MS-51 leverages an efficient automated control system to significantly boost workshop productivity and operational safety. Whether for heavy-duty mining machinery repair or batch hose production, MENSION is your preferred partner worldwide, consistently delivering superior machining precision and long-term durability. Choose MENSION MS-51 to build stable, reliable fluid power systems for your business.

Why Choose MS-51?

High Precision: Delivers perfect, repeatable crimps on high-pressure hoses every single time.


Fast Cycle Time: Features a rapid crimping and retraction process to boost your productivity.


Universal Flexibility: Easily handles diverse materials and various hose specifications.


Ultra-Quiet Operation: Engineered for low noise levels without sacrificing heavy-duty power.


Certified Quality: Peace of mind with full CE and RoHS compliance.

TECHNICAL DATA
Model MS-51 Crimping Hose Machine
Crimping Range 14 - 87 (mm)
Crimping Force 500 (T)
Hose Size 1/4 - 2 (inch) 4SH
Max. Opening 31 (mm)
Die Sets 10
Die Set Type 38
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 4 (KW)
Length 670 (mm)
Width 430 (mm)
Height 820 (mm)
Weight 260 (KG)
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
M-51 HOSE CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 14mm 35
14 14 - 16mm 60
16 16 - 20mm 60
20 20 - 22mm 60
22 22 - 26mm 60
26 26 - 30mm 70
30 30 - 38mm 70
38 38 - 46mm 70
46 46 - 54mm 80
54 54 - 64mm 80
64 64 - 69mm 80
69* 69 - 76mm 100
NOTE
  • Customized die sets are available with different size or shape
  • Special voltage such as 110V, 208V, 240V, 415V (60HZ) are available
  • Foot pedal is available to make the hands free
  • * for non standard die sets
Forged from Premium Materials
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
Manual/Automatic Control Panel
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
High-Precision Adjustment
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range

High-Quality Crimping Results
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
MS-51 Heavy-Duty Hydraulic Hose Crimper with 500T Crimping Force, CE & RoHS Certified for 6mm-51mm ID Range
