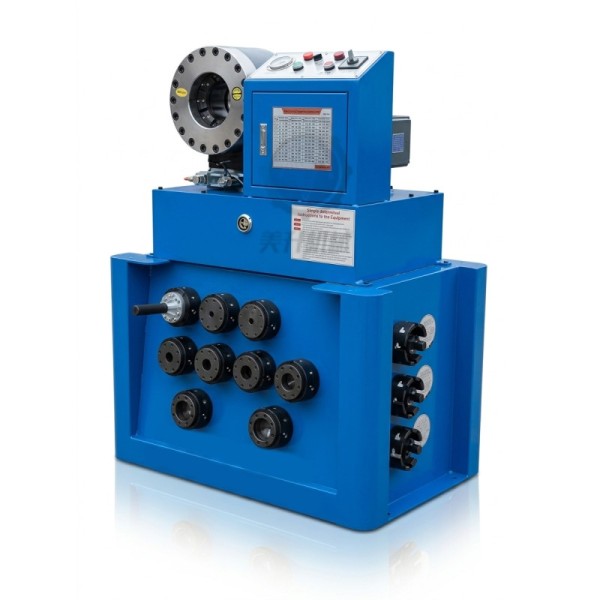

MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
Specifications
Max. Opening :
30mm
Wty :
3 Year
Delivery Time :
2 - 7 Working Days
Payment Terms :
L/C,D/A,D/P,T/T,,
Brand Name :
MENSION
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Color :
Blue
Product Name :
51KH Hose Pressing Machine
Packaging Details :
One Plywood For One Set
Power :
3KW
MOQ :
1 Set
System Pressure :
31.5Mpa
Weight :
310Kg
Model Number :
MS-51KH
Application :
Workshops · Constr. Mach · Hyd. Repair · Mining Equip.
Place of Origin :
CN
Crimping Force :
500T
Die Sets :
10
Size :
670*430*1520mm
Certification :
CE RoHS
Supply Ability :
1000 Sets Per Month
Price :
Contact Us
Description
MS-51KH Rubber Hose Crimping Machine
Product Overview
MS‑51KH hose pressing machine is professionally designed for crimping high‑pressure hydraulic assemblies. It reliably processes 4‑layer & 6‑layer high‑pressure stainless steel braided hoses up to 2 inch, delivering consistent, leak‑free connections for heavy‑duty applications. The machine comes with a special quick‑change die system that allows full die sets to be loaded in one go, greatly reducing setup time and boosting daily productivity.
Key Features
  • Extensive crimping range from 1/4 inch to 2 inch diameter
  • This machine fully complies with EU CE industrial safety standards.
  • Equipped with both manual and automatic operation modes
  • Industrial Hydraulic Hose Press for High Pressure Applications
  • Equipped with a foot switch to enhance user convenience.
  • Quick-change die set installation for improved efficiency
  • High-precision positioning system for accurate crimping
Technical Specifications
Model MS-51KH Hose Crimping Machine
Crimping Range 14 - 87 mm
Crimping Force 500 Tons
Hose Size 1/4 - 2 inch
Maximum Opening 30 mm
Die Sets 10
Die Set Type 51
System Pressure 31.5 MPa
Accuracy 0.05 mm
Control System MS
Standard Voltage 220V / 380V
Motor Power 3 KW
Dimensions (L×W×H) 670 × 430 × 1520 mm
Weight 310 KG
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
51 Hose Crimper Die Sets
Die Number Crimping Range Length
6* 6 - 8 mm 35 mm
8* 8 - 10 mm 35 mm
10* 10 - 12 mm 35 mm
12* 12 - 15 mm 35 mm
15 15 - 19 mm 60 mm
19 19 - 23 mm 60 mm
23 23 - 26 mm 60 mm
26 26 - 31 mm 60 mm
31 31 - 36 mm 70 mm
36 36 - 41 mm 70 mm
41 41 - 47 mm 70 mm
47 47 - 55 mm 80 mm
55 55 - 63 mm 80 mm
63 63 - 69 mm 80 mm
69* 69 - 76 mm 100 mm
Important Notes
  • * Denotes non-standard die sets
  • Customized die sets available upon request
  • Special voltage configurations available: 110V, 208V, 240V, 415V

Top-tier materials manufacturing
High-precision scale adjustment
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
With manual/automatic switching control panel
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
With lighting assist
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
Oil label
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System

MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
High-quality crimping effect
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
MS-51KH Heavy-Duty Hydraulic Hose Crimping Machine with 500T Crimping Force and 2 Inch Capacity Featuring Quick-Change Die System
