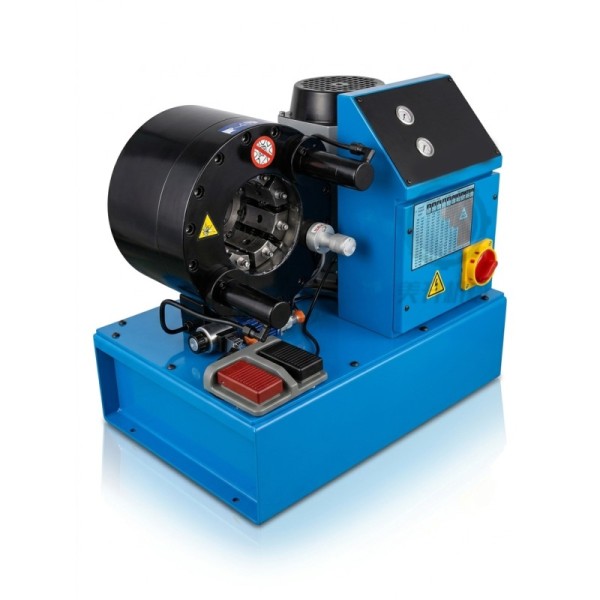

SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
Specifications
Crimping Force :
500T
MOQ :
1 Set
Packaging Details :
One Plywood For One Set
Delivery Time :
2 - 7 Working Days
Crimping Range :
14 - 78mm
Certification :
CE RoHS
Supply Ability :
1000 Sets Per Month
Hose Size :
1/4 - 2.0inch
Voltage :
380V/220V
Place of Origin :
CN
Wty :
3years
Brand Name :
MENSION
System Pressure :
31.5Mpa
Payment Terms :
L/C,D/A,D/P,T/T,,
Color :
Blue
Max. Opening :
31mm
Application :
Workshops · Constr. Mach · Hyd. Repair · Mining Equip
Model Number :
MS-SP32
Size :
630*450*600mm
Weight :
200Kg
Price :
Contact Us
Die Sets :
10
Description
SP32 Automatic Hydraulic Hose Crimper Pressing Machine for Excavator Repair Shop
The MS-P32 is a benchtop hose crimping machine designed for crimping 1/4 inch to 2-1/2 inch high-pressure hydraulic hoses and flaring industrial pipes up to 3 inches in diameter. It can crimp conduits, air conditioning hoses, brake hoses, and stainless steel braided hoses. The crimping operation is convenient, requiring only two buttons to complete the process.
Key Advantages
  • Ultra-Wide Hose Size & Type Compatibility for Diverse Industrial Application Scenarios
  • Simple operating system enables intuitive operation and superior user experience
  • Superior motor performance delivers exceptional power
  • Ultra-High Precision Crimping Diameter Control for Reliable Leak-Proof Hose Connections
  • Big crimping force and large opening capacity
  • Full CE Certification, Compliant with Global Industrial Quality Standards
  • Dual Control with Foot Pedal Switch
Technical Specifications
Model SP32 Hydraulic Hose Crimping Machine
Crimping Range 14 - 78 (mm)
Crimping Force 500 (T)
Hose Size 1/4 - 2.0 (inch)
Max. Opening 31 (mm)
Die Sets 10
Die Set Type SP32
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 380 (V)/220V
Motor Power 3KW/4KW
Length 630 (mm)
Width 450 (mm)
Height 600 (mm)
Weight 200 (KG)
SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
P32 Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 78mm 110
* for non standard die sets
Customized die sets are available
Special voltage 110V, 208V, 240V, 415V are available
Premium Construction Features
Top-grade materials
SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
Equipped with a foot switch for hands-free operation
SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
Top-of-the-line motor
SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
Application Showcase
The P32NC is a high-configured hose crimping machine capable of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive systems, and air suspension or springs.
SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
