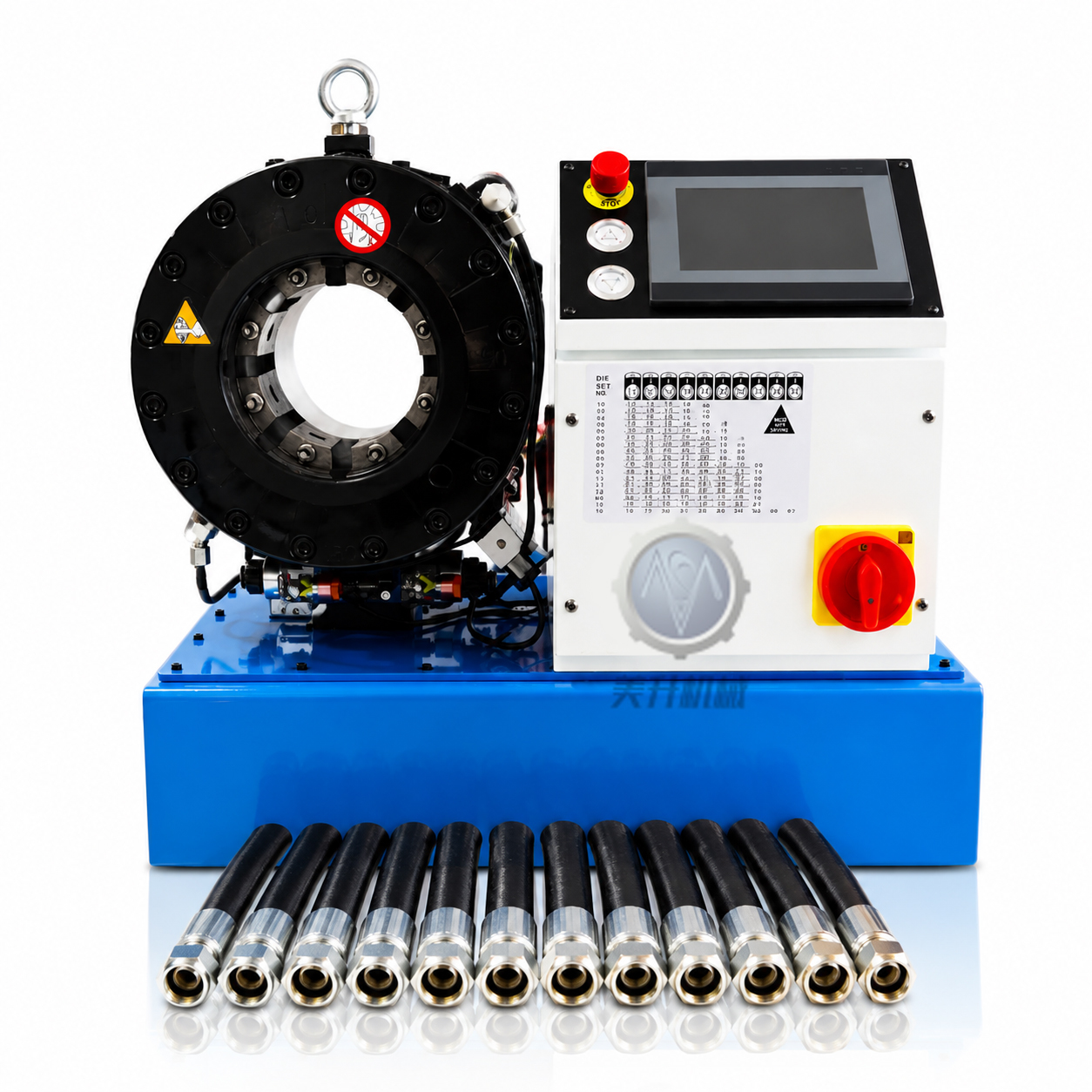

SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
Specifications
Model Number :
MS-SP32NC
Hose Size :
1/4 - 2.0inch
MOQ :
1 Set
Delivery Time :
2 - 7 Working Days
Color :
Blue
Voltage :
380V/220V
Payment Terms :
L/C,D/A,D/P,T/T,,
Crimping Force :
500T
Wty :
3years
Price :
Contact Us
Max. Opening :
31mm
Certification :
CE RoHS
Die Sets :
10
Supply Ability :
1000 Sets Per Month
System Pressure :
31.5Mpa
Weight :
200Kg
Brand Name :
MENSION
Crimping Range :
14 - 78mm
Place of Origin :
CN
Application :
Workshops · Constr. Mach · Hyd. Repair · Mining Equip
Packaging Details :
One Plywood For One Set
Size :
630*450*600mm
Description
SP32 NCAutomatic Hydraulic Hose Crimper Pressing Machine for Excavator Repair Shop
The MS-SP32 is a benchtop hose crimping machine designed for crimping 1/4 inch to 2-1/2 inch high-pressure hydraulic hoses and flaring industrial pipes up to 3 inches in diameter. It can crimp conduits, air conditioning hoses, brake hoses, and stainless steel braided hoses. The crimping operation is convenient, requiring only two buttons to complete the process.
Key Advantages
  • Ultra-Wide Hose Size & Type Compatibility for Diverse Industrial Application Scenarios
  • Simple operating system enables intuitive operation and superior user experience
  • Superior motor performance delivers exceptional power
  • Ultra-High Precision Crimping Diameter Control for Reliable Leak-Proof Hose Connections
  • Big crimping force and large opening capacity
  • Full CE Certification, Compliant with Global Industrial Quality Standards
  • Dual Control with Foot Pedal Switch
Technical Specifications
Model SP32 Hydraulic Hose Crimping Machine
Crimping Range 14 - 78 (mm)
Crimping Force 500 (T)
Hose Size 1/4 - 2.0 (inch)
Max. Opening 31 (mm)
Die Sets 10
Die Set Type SP32
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 380 (V)/220V
Motor Power 3KW/4KW
Length 630 (mm)
Width 450 (mm)
Height 600 (mm)
Weight 200 (KG)
SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
P32 Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 78mm 110
* for non standard die sets
Customized die sets are available
Special voltage 110V, 208V, 240V, 415V are available
Premium Construction Features
Top-grade materials
SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
Equipped with a foot switch for hands-free operation
SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
Top-of-the-line motor
SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
Application Showcase
The P32NC is a high-configured hose crimping machine capable of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive systems, and air suspension or springs.
SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
SP32NC Industrial Hydraulic Hose Crimping Machine with 500T Crimping Force, 10 Die Sets for 1/4 - 2.0 Inch Hoses
