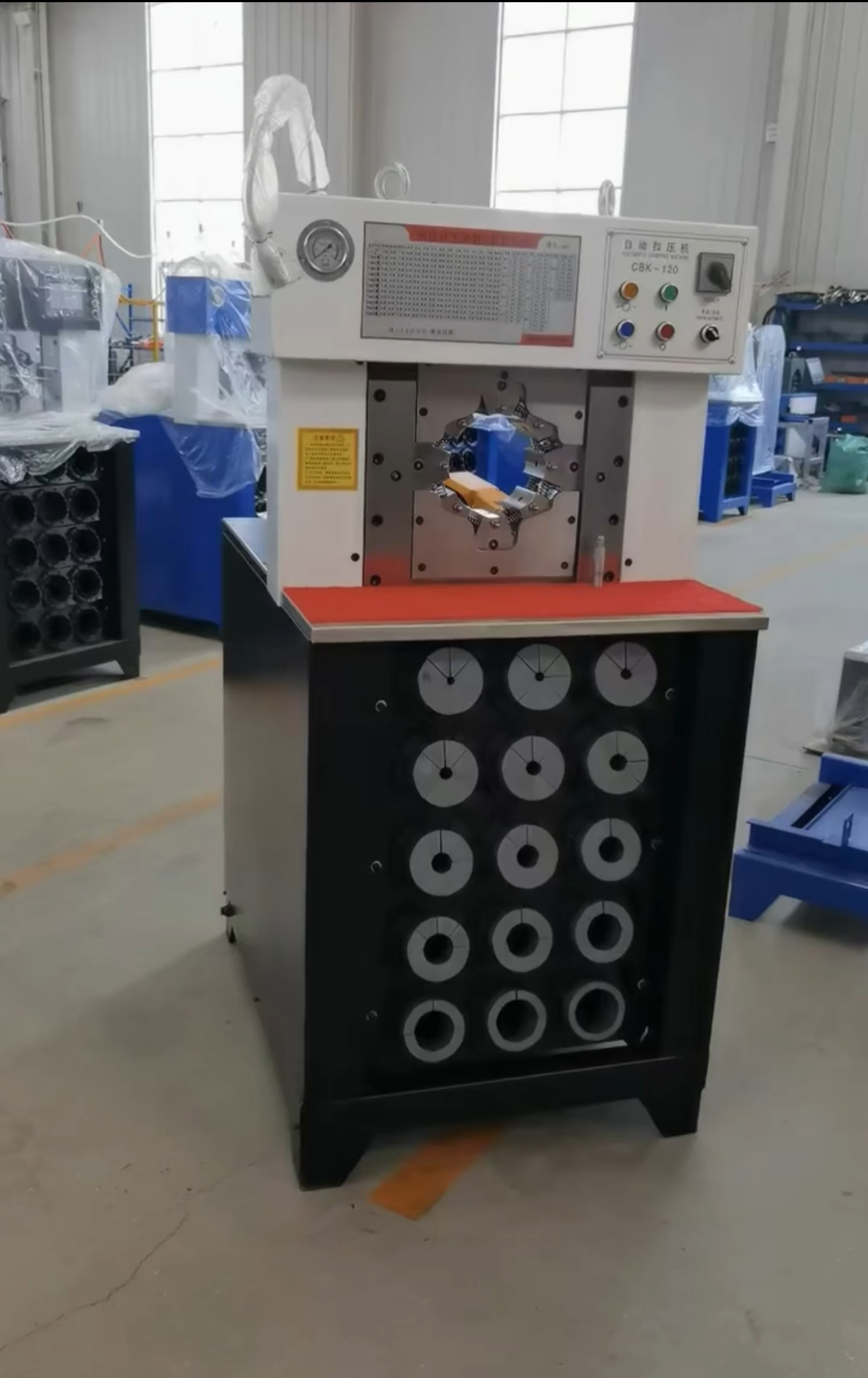

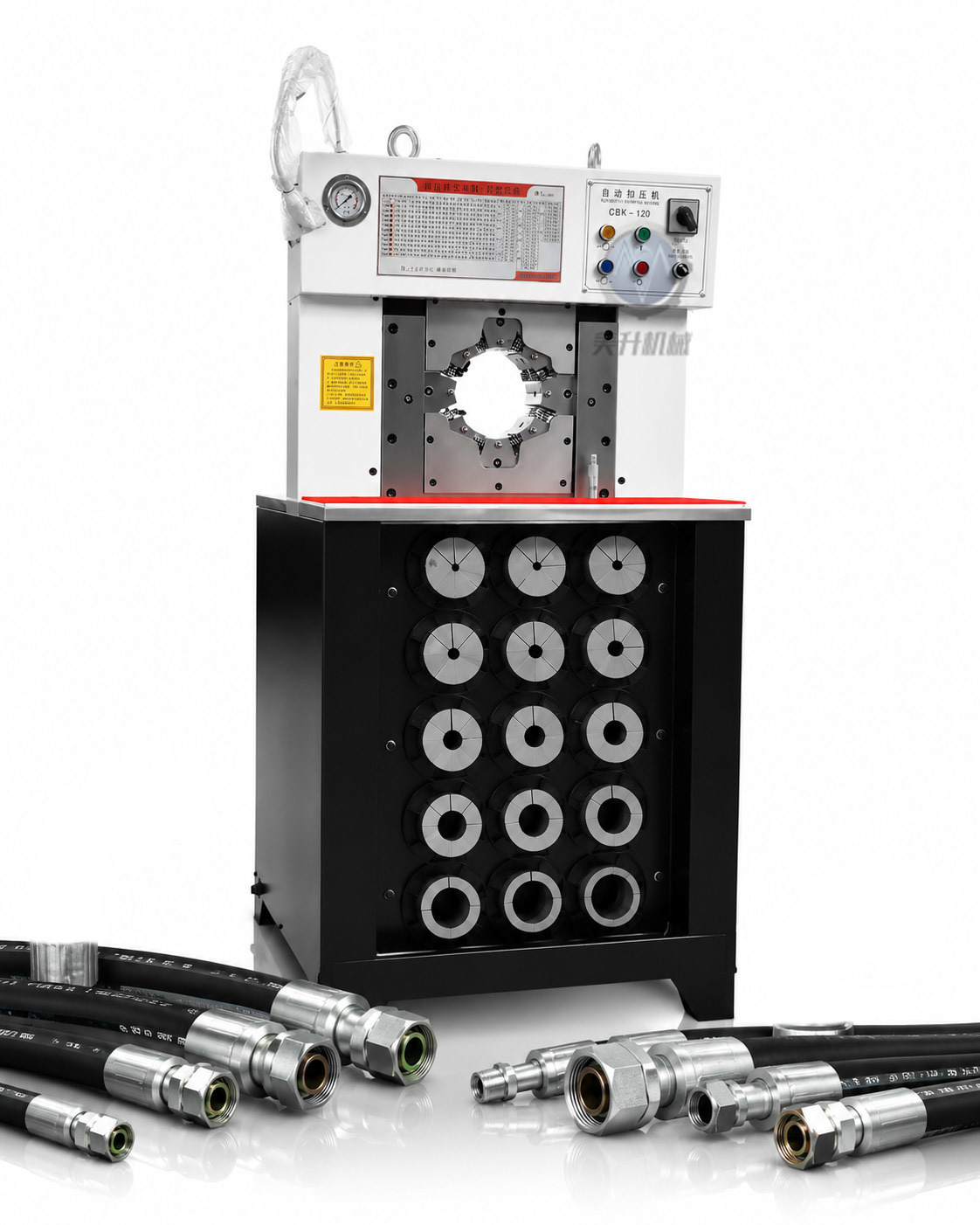

P140 Ultra-Thin Hydraulic Hose Crimping Machine with 750T Crimping Force and 3-Inch Capacity
P140 Ultra-Thin Hydraulic Hose Crimping Machine with 750T Crimping Force and 3-Inch Capacity
P140 Ultra-Thin Hydraulic Hose Crimping Machine with 750T Crimping Force and 3-Inch Capacity
P140 Ultra-Thin Hydraulic Hose Crimping Machine with 750T Crimping Force and 3-Inch Capacity
Specifications
Supply Ability :
1000 Sets Per Month
Application :
Workshop
Size :
1000*800*1630mm
Model Number :
P140
Hose Size :
1/4-3
Payment Terms :
L/C,D/A,D/P,T/T
Product :
P140 Crimping Hose Fitting Machine
Weight :
1250Kg
Price :
Contact Us
Crimping Force :
750T
Certification :
CE RoHS
Die Sets :
15 sets
MOQ :
1 Set
Delivery Time :
2 - 7 Working Days
Max. Opening :
60mm
Control Method :
Button Control
Brand Name :
MENSION
Hose size (mm) :
6-76
Place of Origin :
CN
Color :
Blue or customized
Packaging Details :
One Plywood For One Set
Voltage :
380V /220v
Description
P140 Ultra-Thin Hydraulic Crimper | 3-Inch Capacity & Elbow Fitting Crimping Machine
Product Overview

The P140 Slim-Line Hydraulic Hose Crimping Machine features an ultra-thin design that supports up to 3-inch capacity and specialized 90-degree elbow fitting crimping. Ideal for space-constrained workshops, this industrial press offers high-precision, uniform crimping for heavy-duty hoses and complex flanges.

Key Advantages
  • Crimping Capacity: Handles hoses up to 3 inches in diameter for versatile applications
  • Layered Reinforcement: Specifically designed for hoses with up to 6 reinforcement layers
  • Adjustable Settings: Precise crimping pressure control prevents hose or fitting damage
  • Multiple Die Sets: Interchangeable die sets accommodate various hose and fitting combinations
  • Ultra-Thin Head Design: Enables easy access for large 90° elbow fittings and complex flanges
  • Versatile Application: Ideal for heavy machinery repair, hydraulic assembly, and manufacturing
Technical Specifications
Model P140 Hose Crimping Machine
Hose Size (mm) 6-76
Crimping Force 750 T
Hose Size 1/4" - 3"
Max. Opening 60 mm
Die Sets 15
Die Set Type P32 & P140
System Pressure 31.5 MPa
Accuracy 0.01 mm
Control UC
Standard Voltage 380 V/220V
Motor Power 7.5/5.5 kW
Length 1000 mm
Width 800 mm
Height 1630 mm
Weight 1250 KG
P140 Ultra-Thin Hydraulic Hose Crimping Machine with 750T Crimping Force and 3-Inch Capacity
P140 Hose Crimper Machine Die Sets
P32 Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 74mm 110
74 74 - 78mm 110
78 78 - 84mm 110
P140 Die Sets
Die No. Crimping Range Length
84 84 - 92mm 110
92 92 - 100mm 110
100 100 - 108mm 110
108* 108 - 116mm 110
116* 116 - 126mm 110
126* 126 - 136mm 110
Important Notes
  • Customized crimping die sets are available
  • Special voltages (110V, 208V, 240V, 415V) are available
  • * indicates non-standard die sets
  • Includes one adapter die
Standard Accessories
  • Quick Die Change Tool
  • Die Set Rack / Machine Stand
  • UC/CNC Control
  • Foot Pedal Switch
  • Crimping Mirror
  • Emergency Stop
  • Back Positioning Device
Applications

The P140 hydraulic swaging machine is designed for industrial applications requiring high-pressure hydraulic hose assemblies with secure, leak-free connections.
