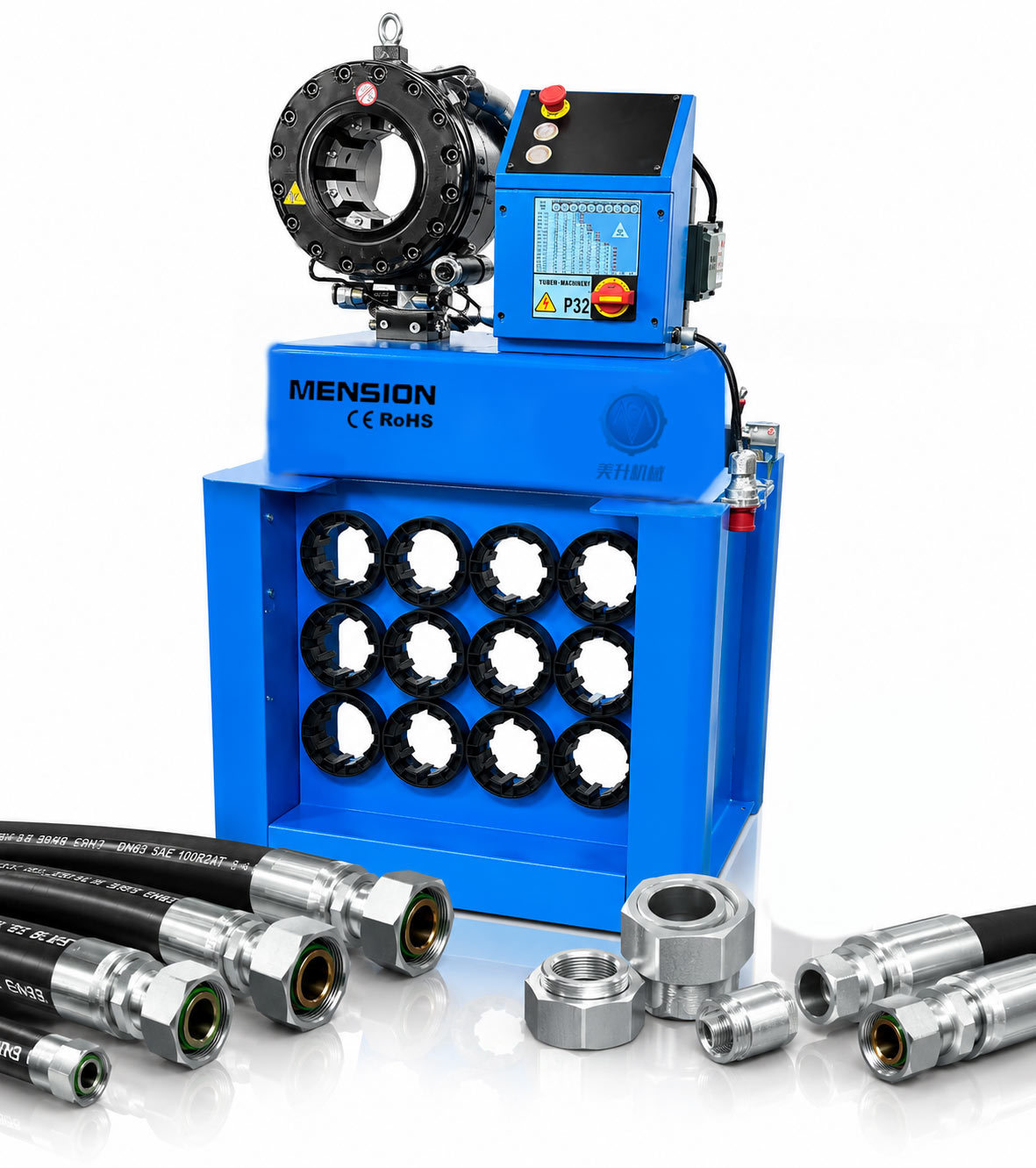

MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Specifications
Supply Ability :
1000 Sets Per Month
Power (kw) :
4
Model Number :
MS P32
Hose Size (Inch) :
2 1/2
Payment Terms :
L/C,D/A,D/P,T/T
System Pressure (Mpa) :
31.5
Price :
Contact Us
Crimping Force (T) :
650
Certification :
CE RoHS ISO
Die Sets :
13
MOQ :
1 Set
Delivery Time :
2 - 7 Working Days
Max. Opening (mm) :
31
Size (mm) :
653*558*1354
Brand Name :
MENSION
Crimping Range (mm) :
14 - 87
Place of Origin :
CN
Color :
Blue
Packaging Details :
One Plywood For One Set
Weight (kg) :
310
Description
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force
The MS P32 Hydraulic Hose Crimping Machine is engineered for high-performance hose pressing applications, designed to meet demanding industrial requirements with precision and reliability.
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Product Overview
The MS P32 is engineered based on customer requirements for high-level series hose crimpers. It comes with 13 standard die sets and is suitable for hydraulic high-pressure, high-tensile hose pressing from 1/4 inch to 2.5 inches. This mid-range power machine offers a compact design that optimizes workspace efficiency.
Delivering 6500 kN crimping force in a highly compact, ergonomic design, the MS P32 is ideally suited for single-piece production in machine shops and repair workshops. As a table-top machine, it can be mounted on a QC Tool Base, with storage capacity for up to 16 die sets for operator convenience.
Key Features & Advantages
  • Solenoid Valve by Rexroth, Germany
  • Stable electric motor from Germany
  • Chrome 40 Steel Structure Material for The Hydraulic Cylinder
  • Cr12Mov Steel for Die Sets with High Hardness
  • Electrical Board & Switch By Eaton, Ireland
  • High Stable Hydraulic Pump from Italy
  • Oil Seal with Good Wear Resistance
  • Finn Power Same Crimping Dial with High Accuracy
  • Foot Pedal Offers Convenient Operation
  • Die Sets with Quick Change to Improve Efficiency
  • Safe Design with International CE Quality Certification
  • Simple Structure with Minimal Failure Points
  • Increased Work Efficiency and Reduced Operational Costs
  • Supports Modernized Management Practices
Technical Specifications
Model MS P32 Hydraulic Hose Crimping Machine
Crimping Range (mm) 14 - 87
Hose ID (Inch) 2 1/2
Industrial Hose (Inch) 3
Max Opening (mm) 31
Crimping Force (kN) 6500
Crimping Force (Tonage) 650
Die Type P32
Die Sets 13
System Pressure (Mpa) 31.5
Control MS
Power (KW) 4
Voltage Single Phase or Three Phase
Voltage (V) 220 or 380
Length (mm) 653
Width (mm) 558
Height (mm) 1354
Weight (KG) 312
Additional Notes
1) Crimping range can be increased with special dies.
2) Maximum opening is the total die travel. Add this value to the D size of the die sets for the crimping diameter of the dies used.
3) 12V or 24V battery power available.
4) UC control system is available.
Die Sets Specifications
Die No. Crimping Range (mm) D (mm) Length (mm)
6 * 6 - 8 6 55
8 * 8 - 10 8 55
10 * 10 - 12 10 55
12 * 12 - 14 12 55
14 14 - 16 14 55
16 16 - 19 16 55
19 19 - 22 19 55
22 22 - 26 22 70
26 26 - 30 26 70
30 30 - 34 30 70
34 34 - 39 34 75
39 39 - 45 39 75
45 45 - 51 45 90
51 51 - 57 51 90
57 57 - 63 57 100
63 63 - 69 63 110
69 69 - 75 69 110
74 * 74 - 80 74 110
78 * 78 - 87 78 110
* indicates non-standard die sets. Customized die sets with special diameter, shape, and length are available.
Main Spare Parts
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Rexroth Solenoid Valve
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Eaton Switch
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Die Sets with Quick Change
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Dies Holder
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Seal Kits
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Hydraulic Pump
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Micrometer
MS P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5MPa System Pressure
Foot Pedal
After-Sales Service
  • 3 years warranty for whole machine
  • 7 * 24 hours online support
  • Specific and professional after-sales team
  • Spare parts readily available
