Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping
Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping
Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping
Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping
Specifications
MOQ :
1 set
Delivery Time :
2 - 7 Working Days
Cutting Speed :
2700rpm
Packaging Details :
One Plywood For One Set
Model Number :
MS-51CS
Cutting Blade :
1 pcs
Payment Terms :
L/C,D/A,D/P,T/T
Dimension :
680*650*1050mm
Price :
Contact Us
Skiving Speed :
500r/min
Supply Ability :
1000 Sets Per Month
Weight :
90KG
Certification :
CE ROHS
Skiving Mandrel :
10 pcs
Brand Name :
MENSION
Hose Size :
1/4''-2''
Place of Origin :
CN
Color :
Blue
Description

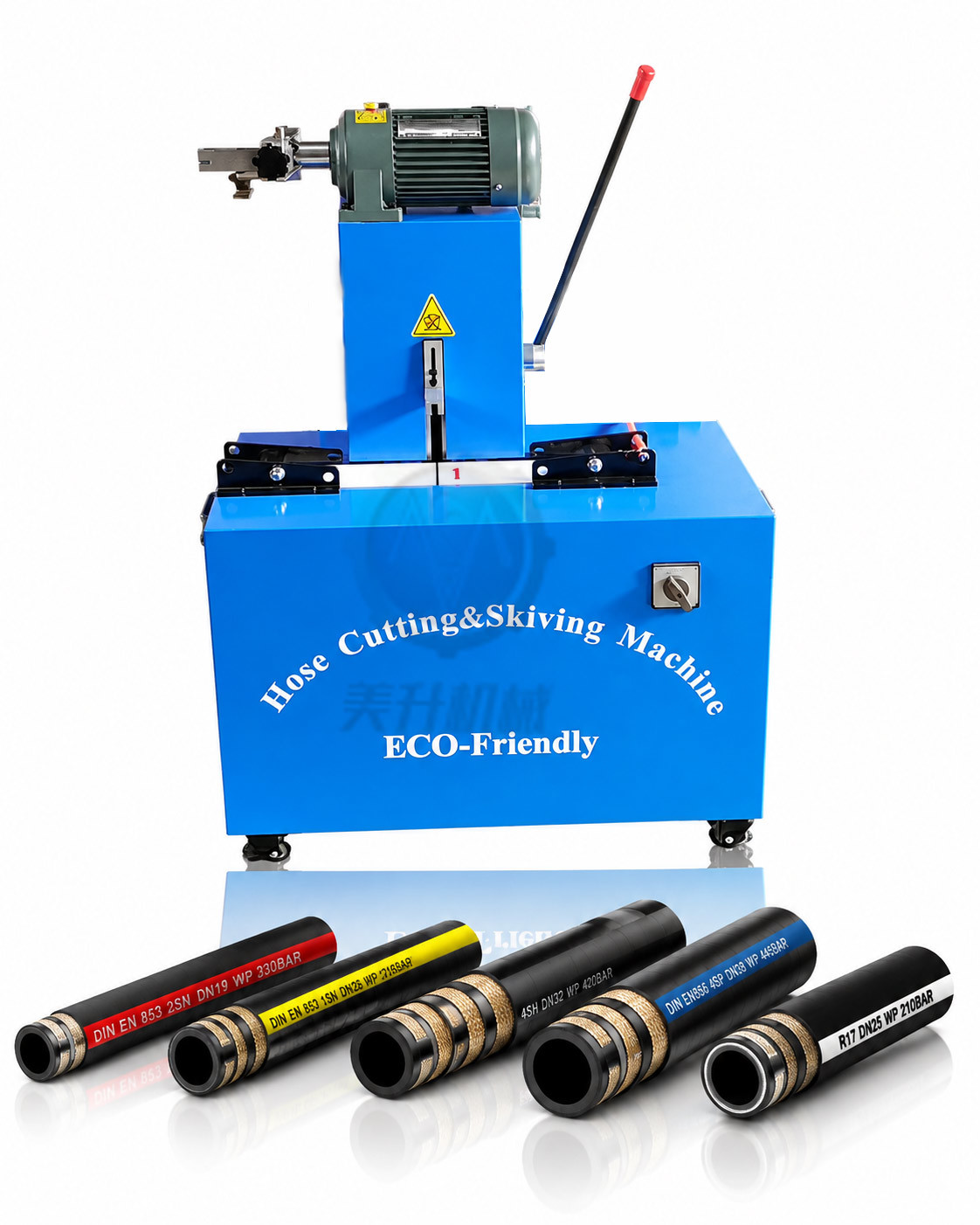

Movable Wheel Hose Cutting Machine Hydraulic Hose Making Machine
Product Overview

The MS-51CS is a powerful hose cutting machine with integrated rubber stripping capability. Designed for industrial applications, it efficiently cuts hydraulic stainless steel braided hose up to 2-inch 4-wire specifications.

Key Advantages
  • Movable wheel design for enhanced portability and convenience
  • Ergonomic handle design reduces operator fatigue and improves efficiency
  • Precision scale on skiving tool for accurate depth adjustment
  • High-quality copper wire aluminum motor prevents overheating during extended operation
Technical Specifications
Model MS-51CS Hose Cutting Machine
Hose Size 1/8" - 2"
Cutting Speed 2700 rpm
Cutting Blade 350*32 mm
Cutting Blade Quantity 1 piece
Skiving Speed 500 r/min
Skiving Mandrel 10 pieces
Length 680 mm
Width 650 mm
Height 1050 mm
Weight 90 kg

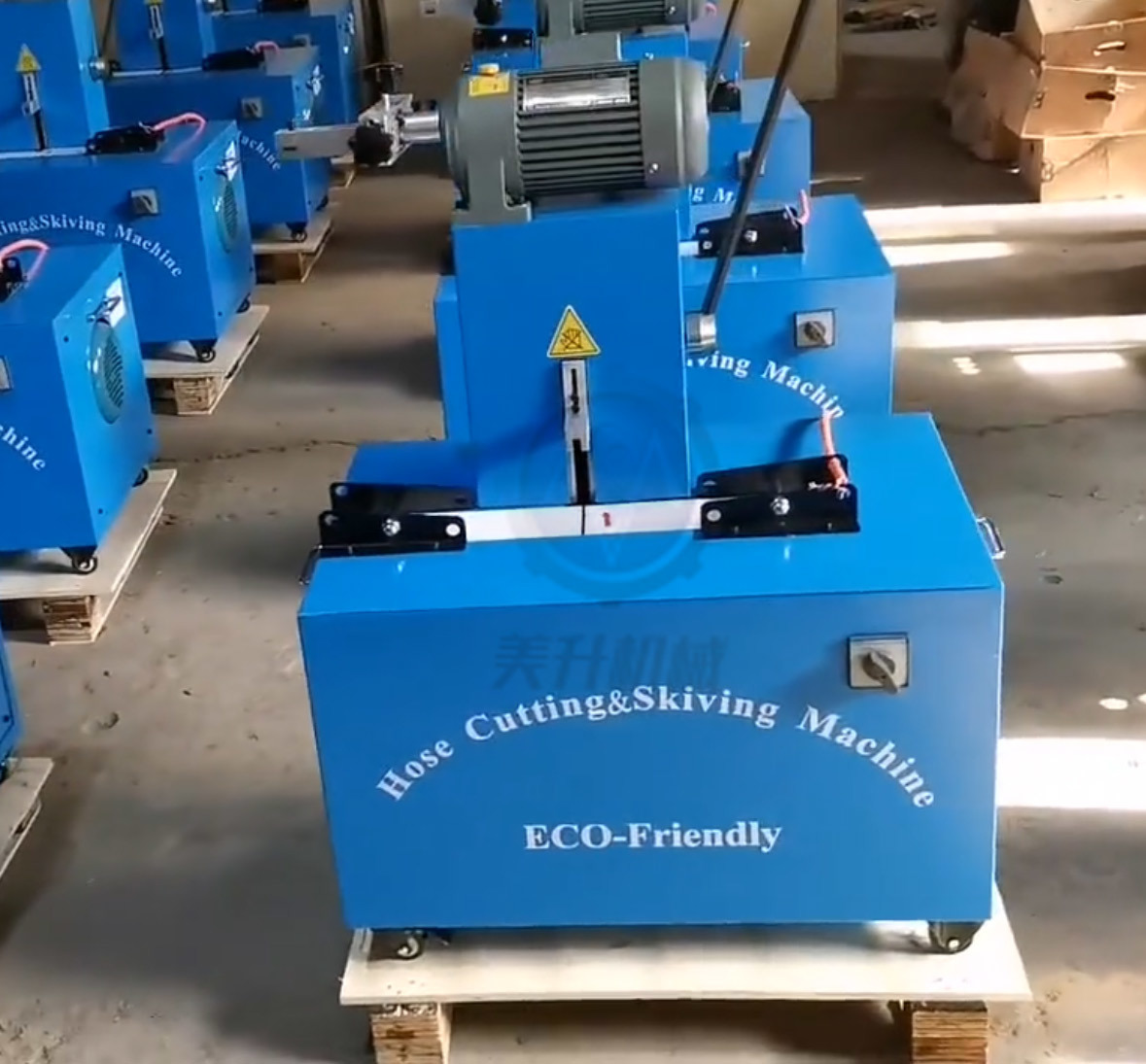

Product Images
Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping Movable Wheel Hydraulic Hose Cutting Machine with 2700rpm Speed and Integrated Rubber Stripping
Applications

The MS-51CS hose cutting machine with rubber stripping function is essential for hydraulic hose assembly preparation before crimping. Cutting operations prepare hoses to required lengths for hydraulic system connections, while skiving removes inner or outer rubber layers to ensure proper connection between stainless steel braided hose, ferrules, and fittings.
