12V Hydraulic Hose Crimper Pipe Crimping Machine High Pressure Hose Crimping Tool
12V Hydraulic Hose Crimper Pipe Crimping Machine High Pressure Hose Crimping Tool
12V Hydraulic Hose Crimper Pipe Crimping Machine High Pressure Hose Crimping Tool
12V Hydraulic Hose Crimper Pipe Crimping Machine High Pressure Hose Crimping Tool
12V Hydraulic Hose Crimper Pipe Crimping Machine High Pressure Hose Crimping Tool
12V Hydraulic Hose Crimper Pipe Crimping Machine High Pressure Hose Crimping Tool
Specifications
Brand Name :
MENSION
Model Number :
MS-NC130
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
650T
Product Name :
NC130 Hydraulic Hose Crimper 12V
Application :
Service
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
650*550*650mm
Weight :
240Kg
Description

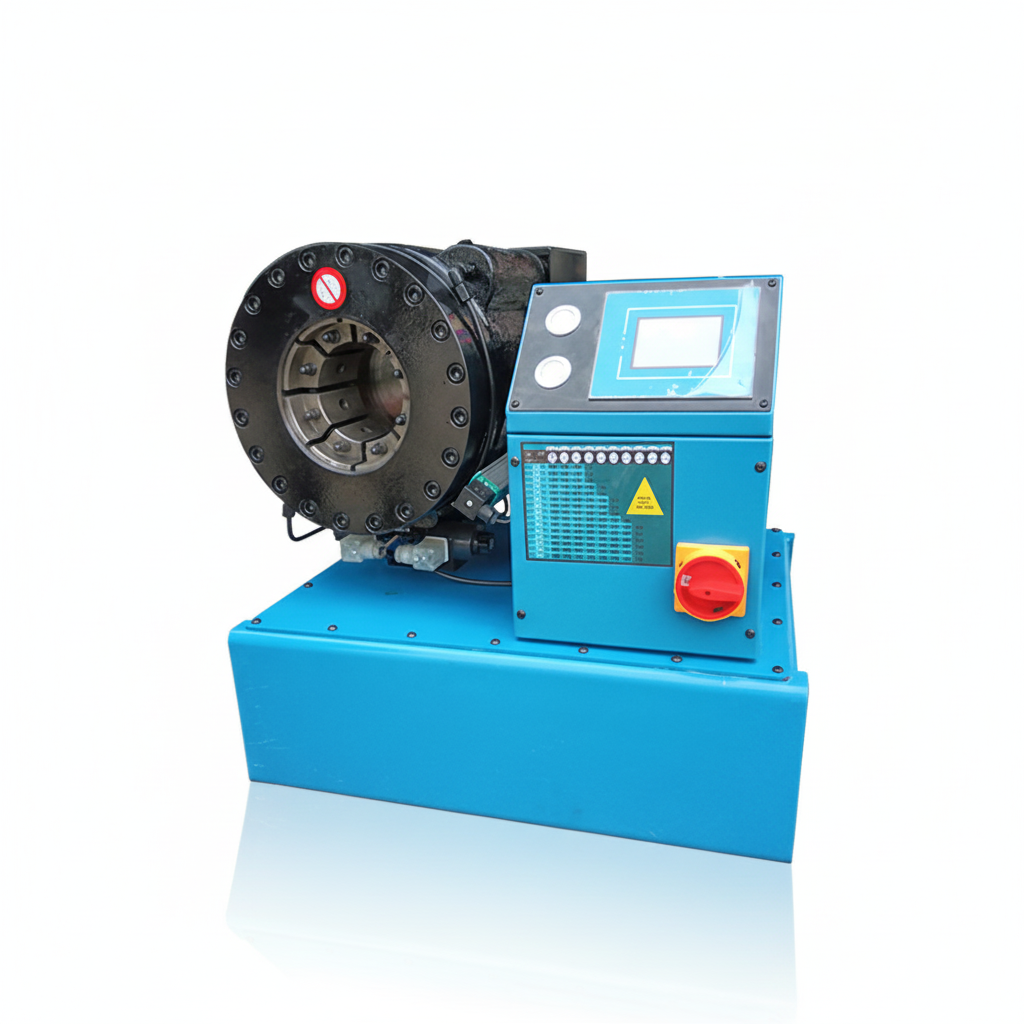

MS-NC130 12V Hydraulic Hose Crimper
High pressure hydraulic hose crimping machine for industrial pipe crimping applications
Product Overview
The MS-NC130 hydraulic hose pressing machine is designed for crimping hydraulic hoses from 1/4 inch to 1 1/2 inches. This versatile machine can be powered by AC 220V single phase, 380V three phase motors, or even a 12V battery for maximum flexibility in various working environments.
Key Features
  • CNC control system for intelligent operation
  • High hardness die sets for durability
  • Italian electric ruler for high accuracy and stability
  • High-flow hydraulic valve for efficient performance
Technical Specifications
ModelMS-NC130 Hydraulic Crimping Machine
Crimping Range14 - 87 (mm)
Crimping Force650 (T)
Hose Size1/4 - 2.5 (inch)
Max. Opening31 (mm)
Die Sets13
Die Set TypeP32
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220V / 380V
Motor Power3.75 (KW)
Dimensions (L*W*H)650 * 550 * 650 (mm)
Weight240 (KG)
12V Hydraulic Hose Crimper Pipe Crimping Machine High Pressure Hose Crimping Tool
P32 Hose Crimper Die Sets
Die No.Crimping RangeLength
6*6 - 8mm55
8*8 - 10mm55
10*10 - 12mm55
12*12 - 14mm55
1414 - 16mm55
1616 - 19mm55
1919 - 22mm55
2222 - 26mm70
2626 - 30mm70
3030 - 34mm70
3434 - 39mm75
3939 - 45mm75
4545 - 51mm90
5151 - 57mm90
5757 - 63mm100
6363 - 69mm110
6969 - 78mm110
Additional Information
* Denotes non-standard die sets
Customized die sets are available upon request. Special voltage options including 110V, 208V, 240V, and 415V are also available to meet specific requirements.
