Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press
Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press
Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press
Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press
Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press
Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press
Specifications
Brand Name :
MENSION
Model Number :
MS-51KH
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Color :
Blue
Max. Opening :
30mm
Crimping Force :
500T
System Pressure :
31.5Mpa
Power :
4KW
Size :
670*430*1520mm
Weight :
310Kg
Description

2 Inch Hydraulic Hose Crimping Machine 51KH High Pressure Industrial Service

PRESSURE HYDRAULIC HOSE CRIMPING MACHINE MS-51KH

DESCRIPTION

MS-51KH famous for its wide crimping range and convenient operating system. It is the ideal choice if you want to open a hydraulic hose assembly producing workshop with small budget but high configuration.

FEATURES

► One piece crimping cylinder with high hardness and stability

► Easy change between automatic and manual mode

► Working lamp to help the user check the crimping status

► Quick change for die sets, improve the productivity

► Oil ruler to show the quantity and quality of the system oil

TECHNICAL DATA

Model

MS-51KH Pressure Hydraulic Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

12

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380(V)

Motor Power

4 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG) Without Oil

Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press

51 CRIMPER DIE SETS

Die No.

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 35

8*

8.0 - 10.0

 35

10*

10.0 - 12.0

 35

12*

12.0 - 15.0

 35

15

15.0 - 19.0

 60

19

19.0 - 23.0

 60

23

23.0 - 26.0

 60

26

26.0 - 31.0

 60

31

31.0 - 36.0

 70

36

36.0 - 41.0

 70

41

41.0 - 47.0

 70

47

47.0 - 55.0

 80

55

55.0 - 63.0

 80

63

63.0 - 69.0

 80

69*

69.0 - 76.0

 90

NOTE

• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale

DETAILS FOR 51KH CRIMPING MACHINE

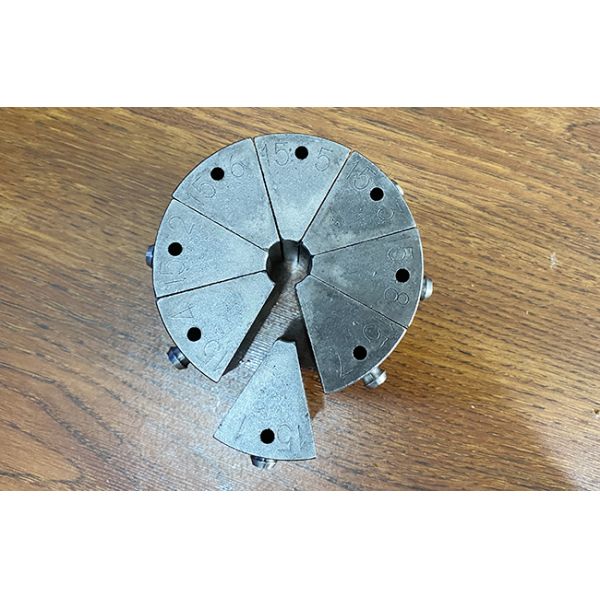

► 10-16 DIE SETS

Molds are with hardness 59-63HRC and surface layer 0.02mm, long use with high stability

Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press

Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press

Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press

► APPLICATIONS FOR 51KH

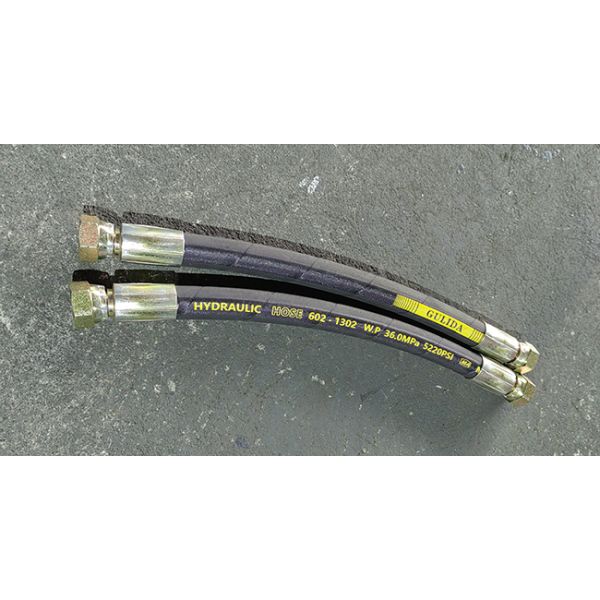

Crimping machine can be used for excavator repair service, it can make hydraulic hose assembly, oil hose, high pressure or low pressure hoses, industrial pipes, stainless steel tubes, etc

Two Inches Hydraulic Hose Crimping Machine High Pressure Hose Crimper Hose Press
