Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
Specifications
Hose Size :
1/4-2inch
Die Sets :
10
Weight :
170Kg
Max. Opening :
31mm
Brand Name :
MENSION
Model Number :
MS-51M
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Size :
730*550*680mm
Crimping Range :
14-87mm
Product Name :
51M Manual Hose Crimping Machine
System Pressure :
31.5Mpa
Crimping Force :
350T
Power :
Hand Pump
Description
Hydraulic Cable Crimpers - Manual Hose Crimper & Hydraulic Hose Assembly Machine

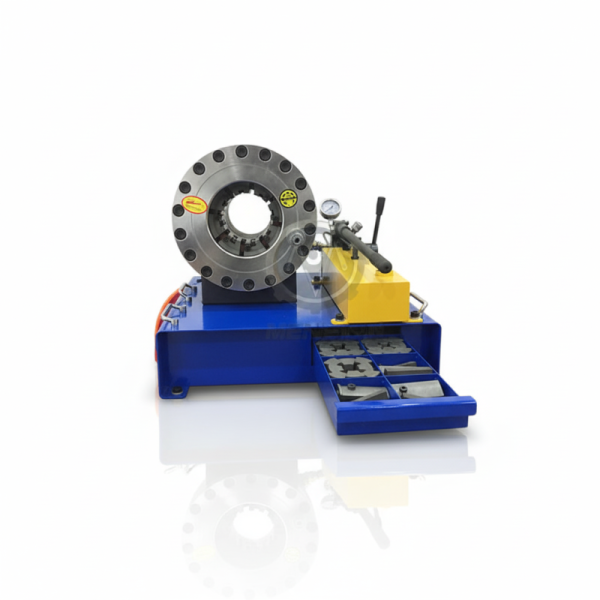

MS-51M Manual Cable Crimping Machine
Product Overview
The MS-51M manual hand pump hose pressing machine is specifically engineered for field crimping operations where electrical power is unavailable. Equipped with a high-power hydraulic manual oil pump, this machine can effectively crimp hydraulic high-pressure flexible hoses up to 51mm for 4SH and 4SP applications.
Key Advantages
  • Compact design for easy portability to any worksite
  • High-precision dial for enhanced operational convenience
  • Hard-polished molds with superior hardness characteristics
  • Secure die sets hold box for safety and organization
Technical Specifications
Model 51M Manual Hose Crimping Machine
Crimping Range 14 - 87 mm
Crimping Force 350 Tons
Hose Size 1/4 - 2 inch
Maximum Opening 31 mm
Die Sets 10
Die Set Type 51
System Pressure 31.5 MPa
Accuracy 0.01 mm
Control System MS
Power Source Manual Pump
Motor Power Manual Pump
Dimensions (L*W*H) 730 * 550 * 680 mm
Weight 170 kg
Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
Important Notes
• Customized die sets are available upon request
• Maximum opening measurement represents the stroke between fully closed and fully opened die sets
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control System
51 Crimper Standard Die Sets
Die Number Crimping Range
6* 6 - 8 mm
8* 8 - 10 mm
10* 10 - 12 mm
12* 12 - 14 mm
14 14 - 16 mm
16 16 - 19 mm
19 19 - 23 mm
23 23 - 27 mm
27 27 - 31 mm
31 31 - 35 mm
35 35 - 41 mm
Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
