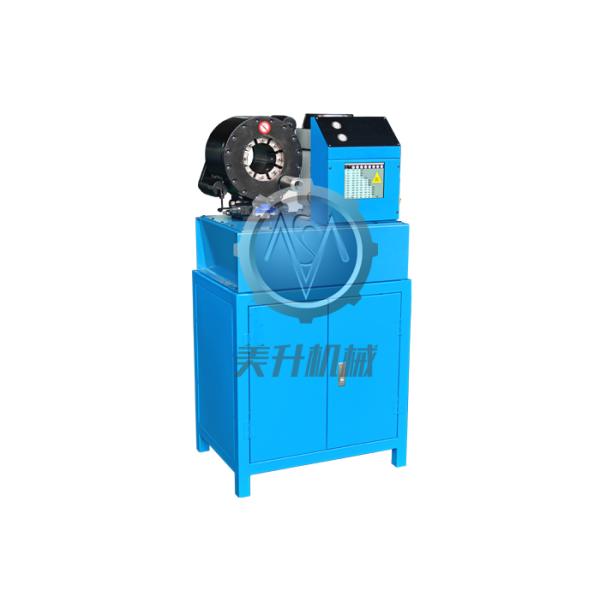

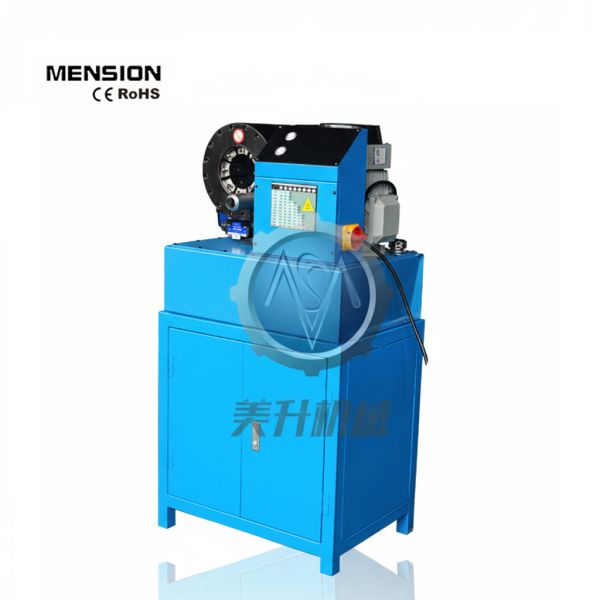

P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
Specifications
Crimping Range :
14 - 64mm
Max. Opening :
25mm
Hose Size :
1/4'' - 2''
Die Sets :
10 sets
Voltage :
220V Or 380V
Size :
630*450*600mm
Application :
Workshop
Crimping Force :
640T
Frequency :
50HZ
Brand Name :
MENSION
Model Number :
MS-E130
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Weight :
200Kg
Color :
Blue or customized
Product :
P20 Hose Pressing Machine
Description
P20 Crimping Machine Hydraulic Hose Press Machine
2 Inch Pressure Hose Crimper
The MS-E130 Crimping Machine is an essential tool for industries requiring reliable hose connections, ensuring hoses remain securely attached to fittings under pressure. This hydraulic hose crimper plays a vital role in maintaining the integrity of hydraulic systems, automotive components, and various industrial applications.
Key Advantages
  • User-Friendly Design: Easy to operate with clear instructions and intuitive controls
  • Safety Features: Equipped with emergency stop buttons and protective guards for operator safety
  • Durability: Built with robust materials to withstand heavy-duty use and ensure long-term reliability
  • Portable Options: Flexible design suitable for various work environments
Technical Specifications
Model MS-E130 Crimping Machine For Hose
Crimping Range 14 - 64 mm
Crimping Force 640 T
Hose Size 1/4" - 2"
Max. Opening 25 mm
Die Sets 10
Die Set Type P20
System Pressure 31.5 MPa
Accuracy 0.01 mm
Control MS
Standard Voltage 220 V
Motor Power 3 KW
Dimensions (L*W*H) 630 * 450 * 600 mm
Weight 200 KG
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
MS-E130 Hose Crimper Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 14mm 35
14 14 - 16mm 60
16 16 - 20mm 60
20 20 - 22mm 60
22 22 - 26mm 60
26 26 - 30mm 60
30 30 - 38mm 70
38 38 - 46mm 70
46 46 - 54mm 80
54 54 - 64mm 80
64 64 - 69mm 80
69* 69 - 76mm 100
Important Notes:
1) Customized crimping die sets are available
2) Special voltages (110V, 208V, 240V, 415V) are available
3) * indicates non-standard die sets
Optional Accessories
  • Quick Die Change Tool
  • Die Set Rack / Machine Stand
  • UC/CNC Control
  • Foot Pedal Switch
  • Pressure Gauge
  • Normal Stand
Applications for P20 Hydraulic Hose Crimping Machine
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper
