DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
Specifications
Brand Name :
MENSION
Model Number :
DX68
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Max. Opening :
30mm
Crimping Force :
500T
System Pressure :
31.5Mpa
Color :
Blue
Power :
3KW
Size :
670*430*820mm
Weight :
260Kg
Description

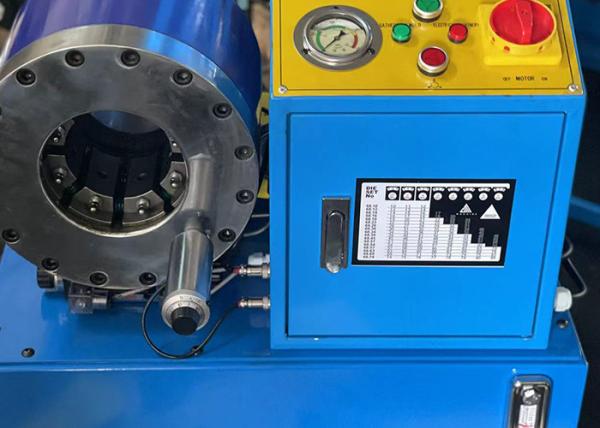

DX68 Hose Crimping Machine - Hydraulic Pipe Crimping Tool
High Flexible DX68 Hose Crimper Machine With Big Hydraulic Power

Product Overview
The DX-68 hydraulic crimping machine is engineered for producing one to six layer stainless steel wire braided rubber hose from 1/4 inch to 2 inch. Featuring high-accuracy electric ruler control for master die movement, this machine ensures hose assemblies achieve extended service life and superior pressure resistance.
Main Features
  • Forged pressing cylinder with high-level hardness
  • Multifunctional hand panel with multiple operating modes
  • Pressure display device for clear system monitoring
  • Standard pedal switch for hands-free operation
  • Integrated working lamp for enhanced visibility and safety
Technical Specifications
Crimping Range 14 - 87 mm
Crimping Force 500 Tons
Hose Size 1/4 - 2 inch
Maximum Opening 30 mm
Die Sets 10
Die Set Type 68
System Pressure 31.5 MPa
Accuracy 0.05 mm
Control System MS
Standard Voltage 220V / 380V
Motor Power 3 KW
Dimensions (L×W×H) 670 × 430 × 820 mm
Weight 260 KG
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
68 Hose Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8 mm 35 mm
8* 8 - 10 mm 35 mm
10* 10 - 12 mm 35 mm
12* 12 - 15 mm 35 mm
15 15 - 19 mm 60 mm
19 19 - 23 mm 60 mm
23 23 - 26 mm 60 mm
26 26 - 31 mm 60 mm
31 31 - 36 mm 70 mm
36 36 - 41 mm 70 mm
41 41 - 47 mm 70 mm
47 47 - 55 mm 80 mm
55 55 - 63 mm 80 mm
63 63 - 69 mm 80 mm
69* 69 - 76 mm 100 mm
Important Notes
* Denotes non-standard die sets
Customized die sets are available upon request
Special voltage configurations (110V, 208V, 240V, 415V) are available
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
Application Field
DX68 Hose Crimping Machine Hyd Hose Crimper Hydraulic Pipe Crimping Tool
